500KHz Ultrasonic Fuel Level Sensor for Oil Tank

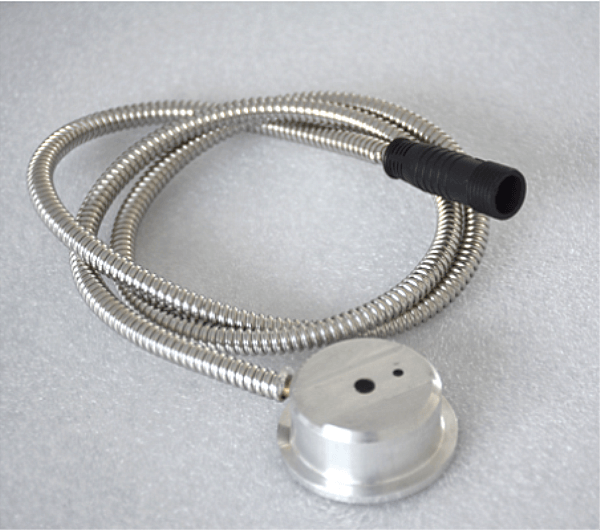

500KHz ultrasonic sensor for oil level of car tank.

Quantity:
  • PH500MQB
  • Piezohannas
  • PH500MQB

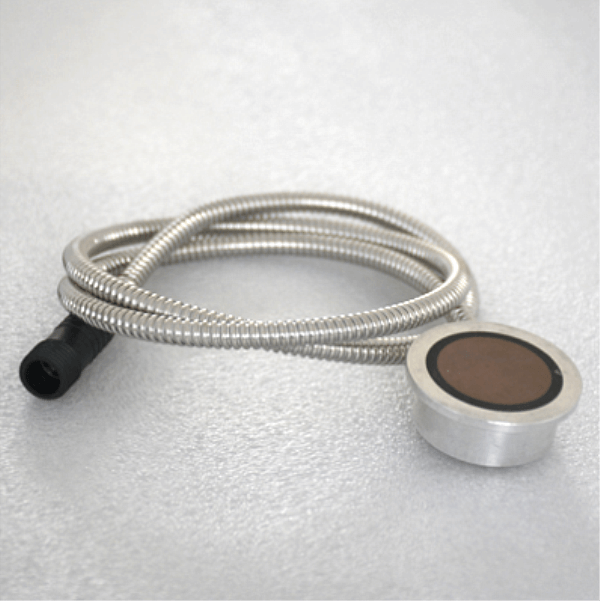

                        500KHz Ultrasonic Fuel Level Sensor for Oil Tank


Technical parameters:


Model

PH500MQB

Center resonant frequency (kHz)

500KHZ±2%

 frequency bandwidth(-6dB)

10%

 integrated sensitivity (0 dB=18 Vp-p;period:20,distance:30cm

-36dB min

detection distance

6M

dead zone

3cm

Maximum working voltage (Pulse - 2% duty cycle)

800V

Launch angle beam (-3dB full angle)

Electrostatic capacitance

1100PF±20%

Minimum parallel impedance

160Ω±30%

Operating temperature

-2070℃

Protection level

IP68

Housing Material

aluminium alloy


Image:

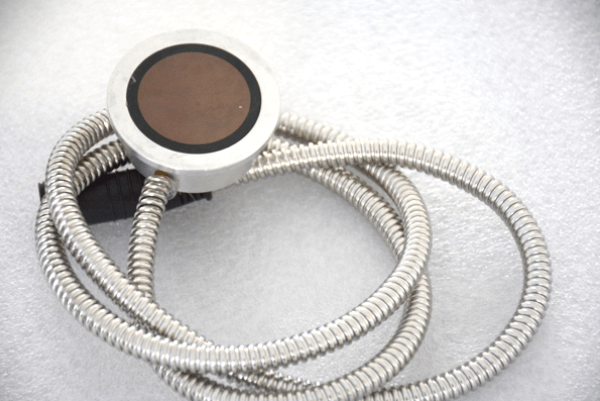

500KHz ultrasonic fuel level sensor

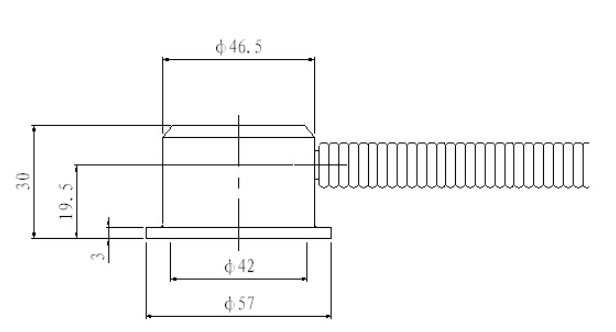

Outline Dimension:

RHY`3(OFGZ6M71IMBI_NX1F





Frequency-Resistance Curve

]0GKWT8{1[DVW]FAW4ZK(R







Frequency-Phase Angle curve

8Q]E7WK6Q7MWFXHA38Y)F3H

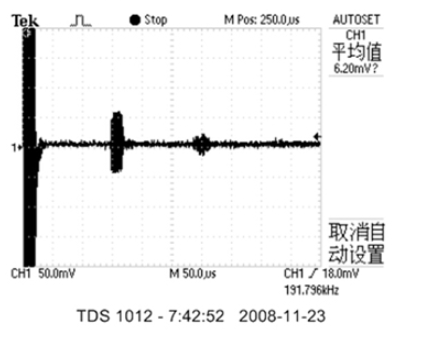

 Integrated Sensitivity:





Sending voltage :10Vp-pperiod20, distance10cm

4(6$(2FIV03TH($FY3R}U_B
