PHCG-49-F51
Piezohannas
PHCG-49-F51

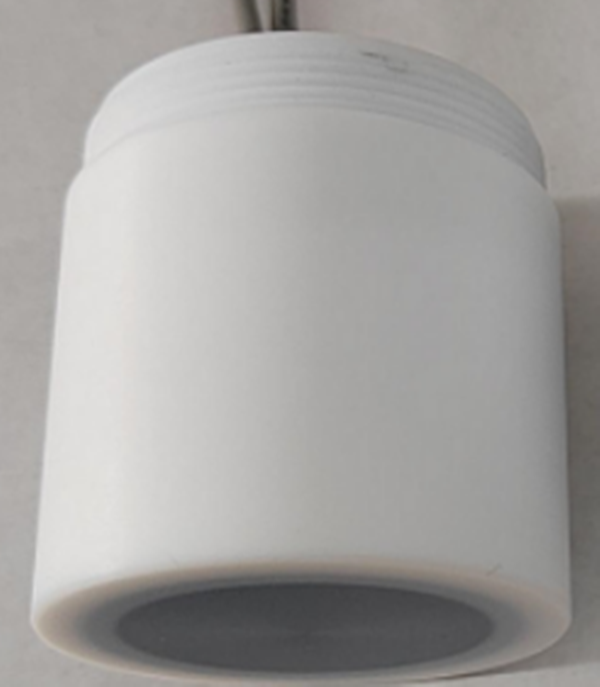

49KHz Anti-corrosive Ultrasonic Transducer for Ultrasonic Rangefinder
Technical parameters:
Items | Technical Parameters | Image | |
Name | 49KHz anticorrosive transducer |
| |
Model | PHCG-49-F51 | ||
Frequency | 49KHz±5% | ||
Detection Distance | 0.35～8m | ||
Minimum Parallel lmpedance | 230Ω±20％ | ||
1800pF±20％ @1KHz | |||
Sensitivity | No-load driving voltage：500Vpp，Distance 0.6m， Echo amplitude 200mV | ||
peak voltage ＜1500Vpp | |||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
(Beamwidth)Half-power Beam Width@-3dB：7.7°±10%； Sharp Angle:18°±10%； | |||
Housing Material | Teflon | ||
usage | Ranging, ultrasonic rangefinder, etc | ||
Protection Level | See product structure chart for details | ||
Weight | IP68 | ||
Wiring Instructions | 250g±5％（length：100mm） | ||
Name | One: Interface (3Pin,2.54mm terminal) : red +, white -, black: shielding wire; Interface (3Pin,2.0mm terminal) : white and black temperature sensor cable (MF58-502F3470); | ||

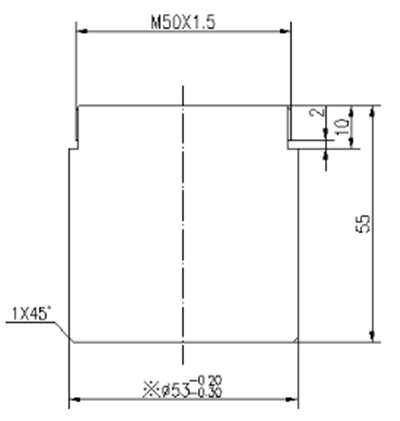

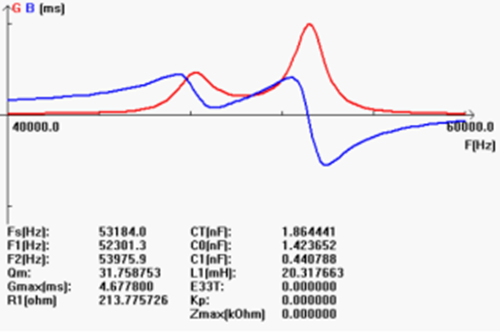

Admittance Curve | Product Structure Diagram | ||
|
| ||
