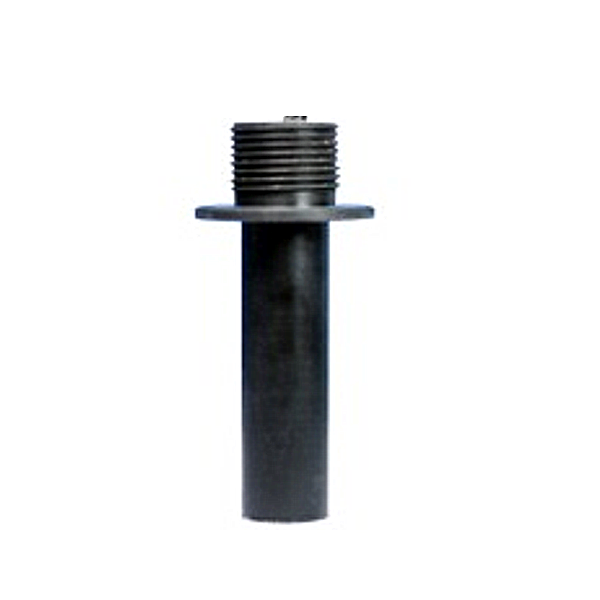

45KHz Ultrasonic Transducer for Ultrasonic level meters

64KHz |8° |0.3~5m| used for Ultrasonic level gauge,Monitoring,Crashproof,
Security

Quantity:
  • PHA-45-05T
  • Piezohannas
  • PHA-45-05T

          45KHz Ultrasonic Transducer for Ultrasonic level meters


Technical parameters:


Items

                    Technical Parameters


Name

Ultrasonic transducer





5WV8(Z8EPM_V9OF18QPJY

Model

PHA-45-05T

Frequency

45KHz±1.5KHz

Detection Distance

0.35m

Minimum

Parallel lmpedance

Ω±20

Capacitance

pF±20@1KHz

Sensitivity


Operating

Voltage

Peak Voltage1500VPP

Operating

Temperature

-40+80℃

Pressure

≤3Kilos or  0.3MPa



Angle

(Beamwidth) Half-power angle@-3dB:21°±2

Sharp Angle:47°±4

Housing Material

Weak acid weak base environment can be used (POM



Usage

Ultrasonic level gauge,Monitoring,Crashproof,

Security

Installation

Dimension

The lifting threadM27*2

Protection Level

IP68

Weight

80g±5

Wiring Instructions

Integrated interface: red: transducer +, yellow: transducer -, black: shielded wire, (temperature sensor is optional)

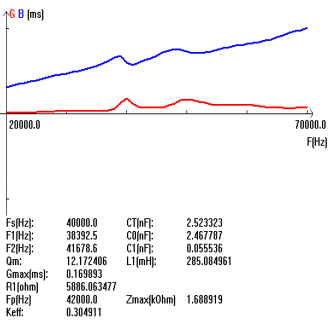

Admittance Curve

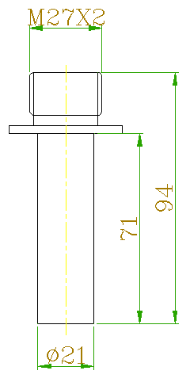

Product Structure Diagram



_5Y1PZDP_`2HL`JVMOK

 5N`BMLI%6)H7U%E%UN)ATB



Test Circuit Schematic of Transducer:


0RYJG8D(6_Q9XM%86PDG



Schematic Diagram of Temperature Sensor:


RIJATFNG3%X8%GV9S%K


Integrated type Cable Instruction:

1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)

Red: transducer +

White: transducer -

Black: shielding

01



2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)



02



Red and black are temperature sensor wiring





Ultrasonic level meters Application:



The ultrasonic level meter is used to continuously monitor level channels in the height of liquid media, sludge or suspensions in both open and closed tanks and channels. The gauge generates the level-height information in the form of a signal current 4 to 20mA. The lower and upper limits of the measurement range can be set by potentiometers in the electronic unit of the gauge.



Application Imgae:


V7`9_)YPBF`%OO8BWCJ
