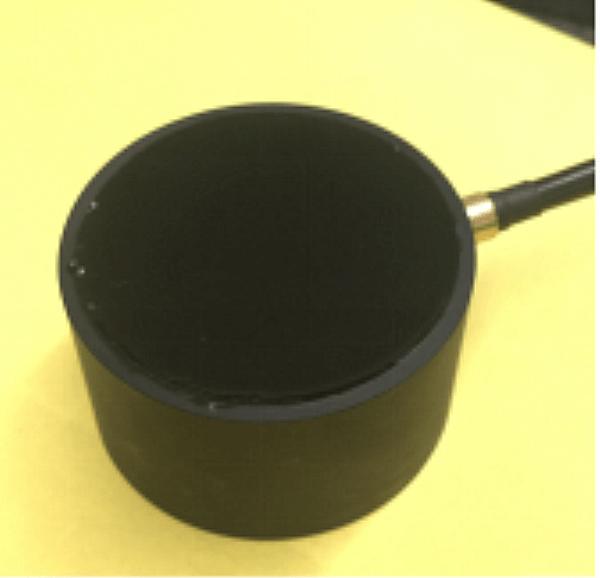

40Khz Utrasonic Transducer for Depth in The Underwater Communications

Application :widely used for the underwater communications

Quantity:
  • PHYW-40-200A
  • Piezohannas
  • PHYW-40-200A

      40Khz Utrasonic Transducer for Depth in The Underwater Communications




1.Technical parameters:


Items

Technical Parameters


Name

40KHz ultrasonic transducer in the

underwater communication application

utrasonic transducer in underwater communications

40Khz ultrasonic transducer depth

Model

PHYW-40-200A

Frequency

40KHz±5%

Minimum

Parallel lmpedance

240Ω±20

Capacitance

6000pF±20@1KHz

Sensitivity

no-load driving voltage500VppDistance 0.65m

Echo Amplitude 1.50V



Operating

Voltage

Peak Voltage900Vpp

Operating

Temperature

-40+80℃

Pressure

10 Kilos or 1MPa

Angle

(Beamwidth) Half-power Beam Width

@-3dB42°±2°

Sharp Angle:114°±6°

Housing Material



ABS

Usage

Depth measurement



Installation

Dimension

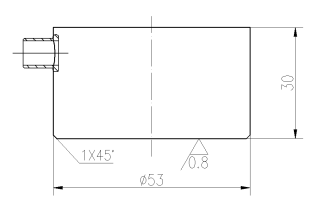

Check the drawing below

Protection Level

IP68

Weight

220g±5%(wire length2m

Wiring Instructions

Integrated  InterfaceRed: transducer+White: transducer-,

Black: shielded wire,( without temperature sensor

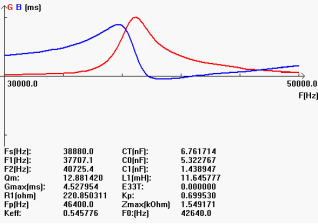

Admittance Curve

Product Structure Diagram
