40Khz Universal Transformer for Ultrasonic Transducer

1.transformer for ultrasonic transducer
2.Suitable for ≤200Khz frequency transducer

Quantity:
  • PH7708-1
  • PH7708-1

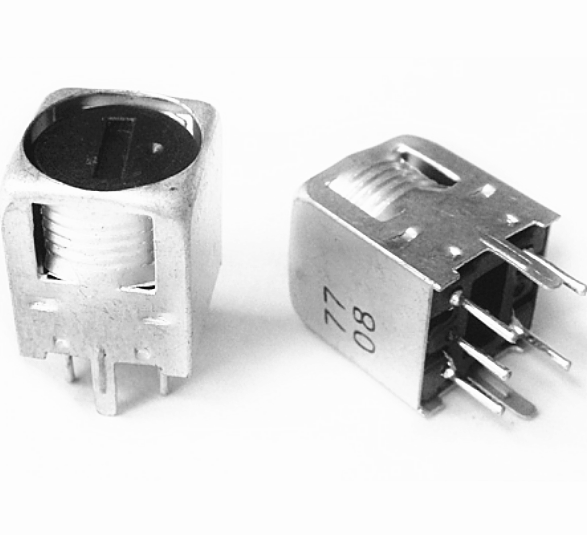

               40Khz Universal Transformer for Ultrasonic Transducer


This specification includes PH7708-1 transformer size, characteristics, performance parameters and precautions. It’s compatible with 40KHz Ultrasonic sensors. Before using this product, please read this specification.

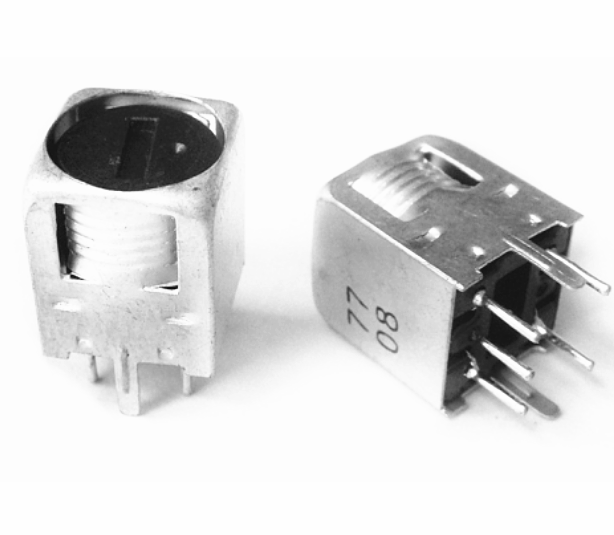

Image:

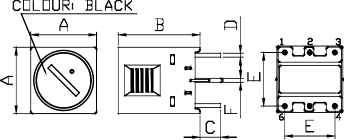

Dimension:I6KJJBW2TG)VDXL6O7%)%7H


M5Q8J3GYJCLZJD8E11W2

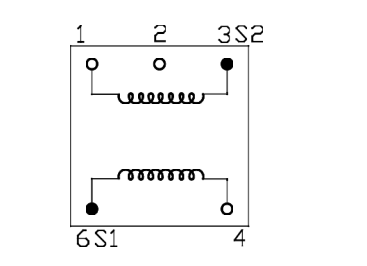

Circuit (BOTTOM):


WWQPU_)%BGTV1UPE(4


MATERIALS AND WINDING:


ITEMS

MATERIALS

MANUFACTURERS

UL NO.

WINDING

6-4

3-1



TURNS

61Ts

427Ts



WIRE

Φ0.08mm (2UEW)

GYHX

E233255

CORE

TH 4.9×5 or equivalant

FY

NA

CASE

KSC-754Z or equivalant

WP

NA

BOBBIN

KSB-754Z or equivalant

WP

NA

CAP CORE

P 7.2×6.8 or equivalant

FY

NA


CHARACTERISTICS:


ITEMS

SPEC.

TESTING CONDITIONS

MEASUREMENT INSTRUMENTS

INDUCTANCE

9mH±5%



40kHz



MQ-1601

UNLOADED Q

70 Min.


TEST DATA:


TEST INSTRUMENTS: CH-1062 CH-502A QBG-3D



      MQ-1601   MQ-171





TEST CONDITIONS: BASED ON THE SPEC. TEST TEMPERATURE: 25℃±5℃ RELATIVE HUMIDITY: 63% ~67%



OXV(YO12)`5OXY_F





S P E C



ELECTRICAL CHARACTERISTICS

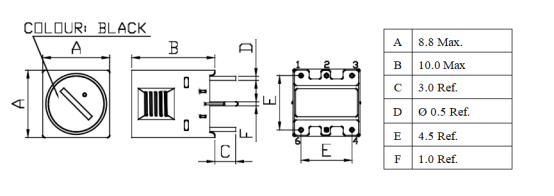

DIMENSIONS(mm)

L

Q

A

B

C

D

E

F

9mH

70

8.8

10.0

3.0

Ø 0.5

4.5

1.0

±5%

Min

Max

Max

Ref

Ref

Ref

Ref

1

8.55

110.0

8.56

9.63

3.0

0.5

4.5

1.0

2

8.73

99.0

8.57

9.77

3.0

0.5

4.5

1.0

3

8.96

101.0







4

9.36

110.0







5

9.48

119.0







Max.

9.48

119.0







Min.

8.55

99.0







R

0.93

20.0







X

9.02

107.8







DETERMINED

OK

OK

OK

OK

OK

OK

OK

OK
