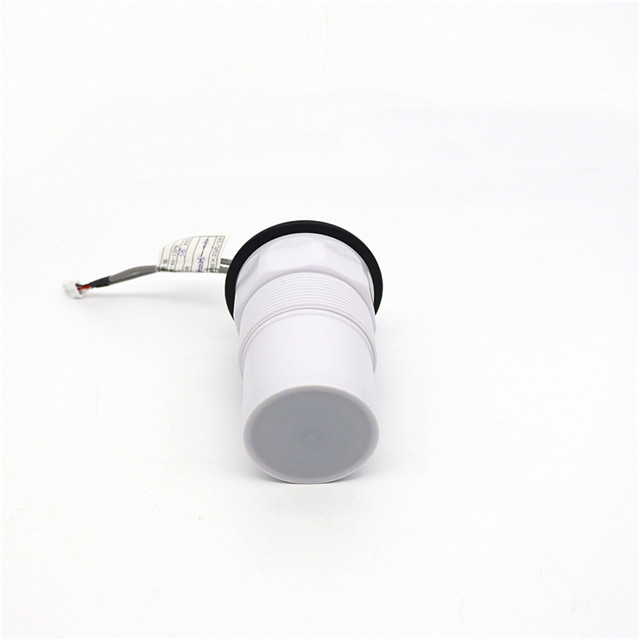

40KHz PVDF Housing Ultrasonic Transducer for Level Sensor

40KHz |10° |0.5~12m| used for Ultrasonic level gauge,Monitoring,Crashproof,
Security

Quantity:
  • PHA-40-12PB
  • Piezohannas
  • PHA-40-12PB

              40KHz PVDF Housing Ultrasonic Transducer for Level Sensor



Technical parameters:



Items

Technical Parameters


Name

40KHz Anti-corrosion transducer PB type

L1]2_FTL]$L2%AW1NTHYSXN

Model

PHA-40-12PB

Frequency

40KHz±5%

Detection Distance

0.5~12m

Minimum

Parallel lmpedance

320Ω±20%

Capacitance

3400pF±20% @1KHz



Sensitivity

Driving Voltage700Vpp,distance:0.6m,

Echo amplitude:530mV

Operating

Voltage

Peak Voltage1500VPP

Operating

Temperature

-40~+80℃

Pressure

≤3Kilos or 0.3MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB:10°±2,

Sharp Angle:23°±4

Housing Material

PVDF



Usage

Ultrasonic level gauge,Monitoring,Crashproof,

Security

Installation

Dimension

Bottom with thread: M60×2 or G2A

Protection Level

IP68

Weight

480g±5%

Wiring Instructions

integrated type:connector3PIN,2.54mm terminal ):Red+,White-,Black: shielded wire;

    connector3PIN,2.0mm terminal :white,black:temperature sensor(MF58

Admittance Curve

Product Structure Diagram



MS[UD{TW)]2NKR7P[CS3`CM

9S)CM)@B3%5N9HCII_SHFVW



 Block diagram of ultrasonic distance transducer :

0RYJG8D(6_Q9XM%86PDG


Schematic Diagram of Temperature Sensor:

O3`1PA5YR5%Z5`DQ1R


 Integrated type Cable instruction:    :
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding


01



2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)

02


Red and black are temperature sensor wiring
