CH-18
Piezohannas
CH-18

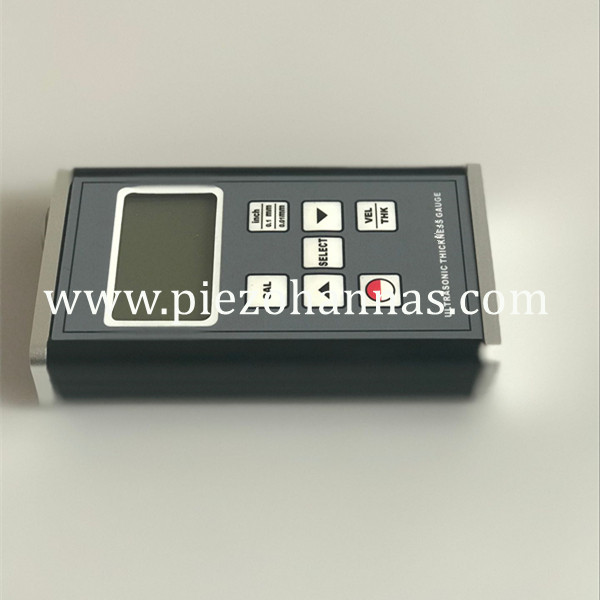

400mm Bluetooth Ultrasonic Thickness Gauge for Metal Sheet
Specification:
Items | Technical Parameters |
Name | 400mm Bluetooth ultrasonic thickness gauge |
Mode | CH-18 |
Measurement range | 0.75~400mm (45# steel) (Depend on Probe) |
Display | 4 Digit, 10 mm LCD |
Accuracy |
± (0.5%n + 0.1) |
Lower Limit Steel Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
Resolution | 0.1mm / 0.01mm / 0.001inch |
Power off | Auto Power off & Manual Power Off |
Operation temperature | Temperature: 0~40 °C, Humidity: < 85 %RH |
Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
Calibration Block | Included |
Battery Indication | Low Battery Indication |
Sound Velocity | 1000~9999 m/s |
Dimension | 140 x 72 x 34 mm |
Weight | 185 g (Not Including Batteries) |
Detailed Product Description:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output”
Material Selection:
Material | |
CD01 | Steel |
CD02 | Cast Iron |
CD03 | Aluminum |
CD04 | Red Copper |
CD05 | Brass |
CD06 | Zinc |
CD07 | Quartz Glass |
CD08 | Polyethylene |
CD09 | PVC |
CD10 | Gray Cast Iron |
CD11 | Nodular Cast Iron |
XXXX | Sound Velocity |
Optional Accessories:
1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm
Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
