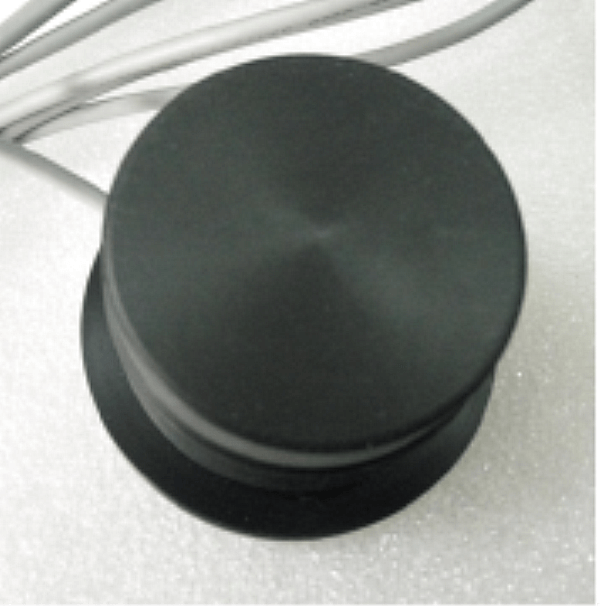

400KHz Long Range 40M Depth Transducer for Ultrasonic Flowmeter

1.Technical parameters：

Items	Technical Parameters		Image
Name	400KHz underwater ultrasonic transducer		$}{ZRQDL4)NHUOK%R_@502$
Model	PHW-400-E
Frequency	400KHz±5%
Detection Distance	0.3～40m
Minimum Parallel lmpedance	280Ω±20％
Capacitance	2100pF±20％ @1KHz
Sensitivity	Driving Voltage：24Vpp、Distance: 0.3m、 Echo Amplitude：500 mV
Operating Voltage	Peak Voltage＜700VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	(Beamwidth) Half-power Beam Width@-3dB:5.0°±1， Sharp Angle：12°±2
Housing Material	POM
Usage	ultrasonic flowmeter，submarine range finder
Installation Dimension	See the product structure drawing
Protection Level	IP68
Weight	115g±5％（Length：2m）
Wiring Instructions	Red+，White-，Black: shielded wire；（without temperature sensor by default）
Admittance Curve		Product Structure Diagram

2.Temperature Sensor Schematic Diagram of Transducer , Test Circuit Schematic Diagram
