35KHz horizontal ultrasonic transducer for omnidirectional sound source

33KHz |11° |0.10~15m| used for Positioning in the air, omnidirectional sound source.

Quantity:
  • PHA-33-G
  • Piezohannas
  • PHA-33-G

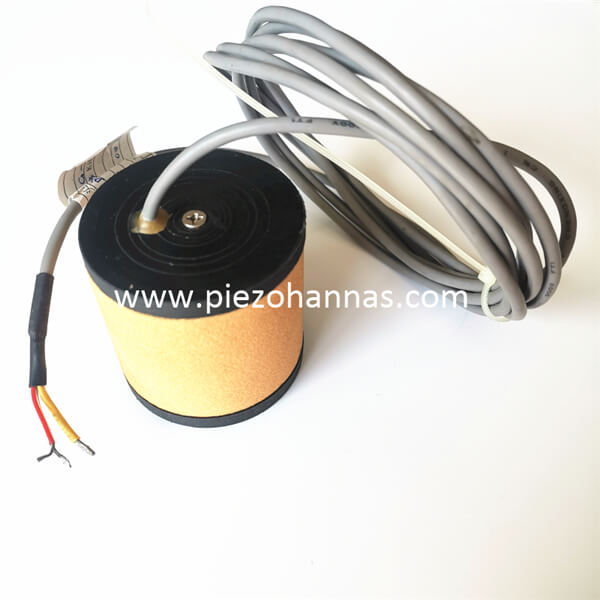

   35KHz Horizontal Ultrasonic Transducer for Omnidirectional Sound Source




Technical parameters:



Items

Technical Parameters


Name

35KHz horizontal non-directional transducer





T8`PAQD748G`ZW3GL7{7XG

Model

PHA-33-G

Frequency

33KHz±5%

Detection Distance

0.1015m

Minimum

Parallel lmpedance

600Ω±20

Capacitance

3700pF±20@1KHz



Sensitivity

Radiation range 10m

Operating

Voltage

Peak Voltage600VPP

Operating

Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa



Angle

horizontalnon-directional vertical direction(Beamwidth) Half-power Beam Width@-3dB:11°±2,

Sharp Angle::23°±4

Housing Material

Aero-foamPOM



Usage

Positioning in the air, omnidirectional sound source

Installation

Dimension

10mm

Protection Level

IP66

Weight

240g±5%

Wiring Instructions

Integrated interface:Red+,White-,Black: shielded wire

( default : without temperature sensor)



Admittance Curve

Product Structure Diagram

C1CR3([KJ2]]@H0H6AMYNDU



LB]%WLM[I7YY3LEGLAHAEKG


 Test Circuit Schematic of Transducer:


20GT7)ETXN3}I3PI2@BY
