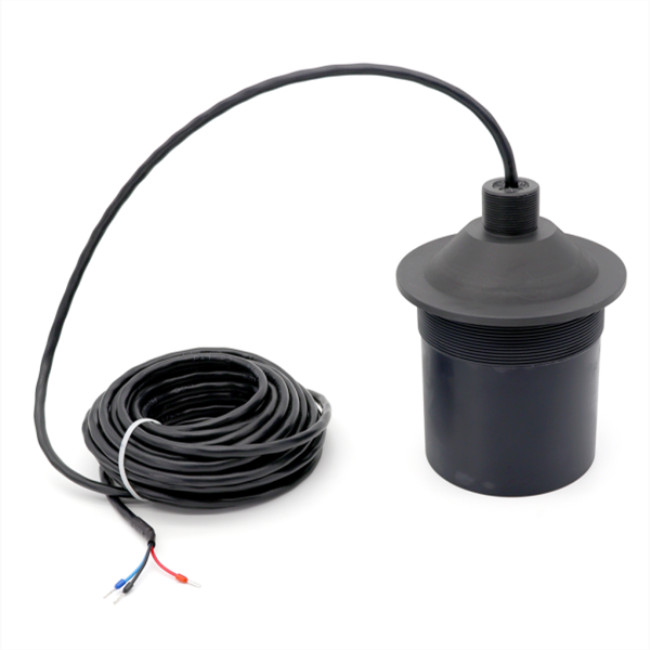

21Khz Ultrasonic Level Transducer for Liquid Level Sensors

21KHz |13°|1.0~25m| used for ultrasonic distance sensor,Ultrasonic level gauge,Monitoring,Crashproof,
Security,ultrasonic range finder,ultrasonic sensor for non-contact detect objects,etc.

About ultrasonic distance transducer, we can offer 14Khz 22Khz 40Khz 50Khz 75Khz 80Khz 125Khz 200Khz 300Khz 400Khz as for resonant frequency, Also we can accpet customization.

Quantity:
  • PHA-21-30D-F
  • Piezohannas
  • PHA-21-30D-F

     21Khz Ultrasonic Level Transducer for Liquid Level Sensors



Items

Technical Parameters


Name

21KHz ultrasonic transducer C typesplit type

0F6VG96N2AI`AGYVDY)H

Model

PHA-21-30D-F

Frequency

21KHz±1.5KHz

Detection Distance

1.030m

Minimum

Parallel lmpedance

700Ω±20

Capacitance

11000pF±20@1KHz



Sensitivity

Load Driving Voltage560VppDistance0.6m

Echo Amplitude1000mV

Operating

Voltage

Peak Voltage1500VPP

Operating

Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa



Angle

(Beamwidth) half-power angle@-3dB:11°±2

Sharp Angle:27°±4

Housing Material

It can be used in a weak acid or base environmentPOM



Usage

Ultrasonic level gauge,Monitoring,Crashproof,

Security

Installation

Dimension

The lifting thread:M32×1.5Bottom with thread:G3

Protection Level

IP68

Weight

1860g±5%( length10M)

Wiring Instructions

separated typefour-wire):Red: transducer+yellow transducer-blueblack:temperature sensorMF58);



separated typeThree-wire):Red: transducer+blue:temperature sensor+black Common Line-;

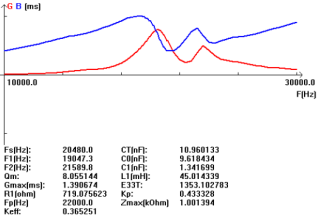

Admittance Curve

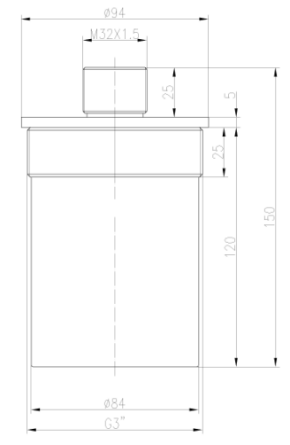

Product Structure Diagram



S8NELZ1J%JUQDQO%YXT

 SB%5GEZU1FQD4Q1GRQG



Block diagram of ultrasonic distance transducer :


驱动接收原理

Schematic Diagram of Temperature Sensor:


RIJATFNG3%X8%GV9S%K




Split type Cable instruction:

 Standard wire is 10M, signal will attenuate 6dB for each 50M increasing of wire.


1. Three core wiring instructions:



Red: transducer +

Blue: temperature sensor +

Black: public -

1



Four core wiring instructions:



Red: transducer +

Yellow: transducer -

Blue, black: temperature sensor +

4


Liquid level sensors Application:


A wide range of level sensor measurement systems are made available for addressing the various parameters such as a wide range of applications, high-accuracy needs, and system installation requirements and practices. Measurement technologies are made available in different versions to address a wide range of measurement needs, or to address a specific application.


Liquid level sensors are termed as the sensors used for detecting liquid levels or interfaces between liquids such as water and oil or solids and liquids. These sensors can also be defined as transducers or as integrated systems with instrumentation and control capabilities. This type of liquid level sensor is one of the most important sensors and plays a vital role in variety of industrial and consumer applications.
