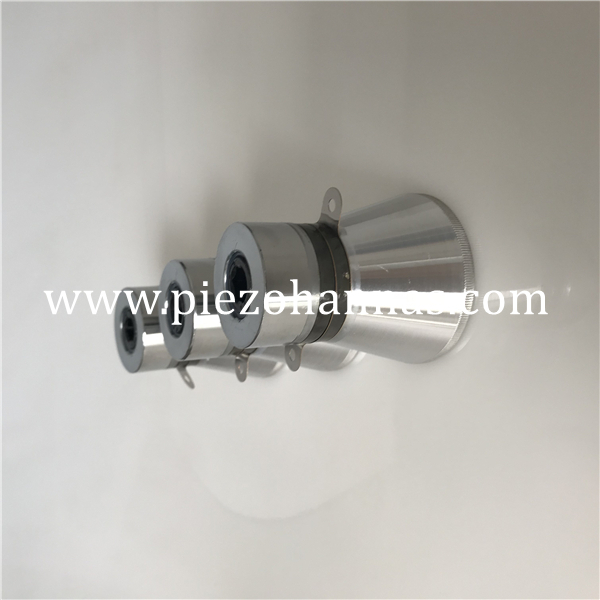

20KHz Piezoelectric Ultrasonic Cleaning Transducer for Washing Machine

Name: 20KHz Piezoelectric Ultrasonic Cleaning Transducer for Washing Machine
Brand: Piezohannas
Rating: 5.0 (32 reviews)

we could offer 17KHZ /20KHZ /22KHZ /25KHZ /28KHZ /33KHZ /40KHZ /53KHZ /60KHZ /80KHZ /100KHZ /120KHZ/ 200KHZ cleaning transducerd,

Low-frequency ultrasound (17-50KHZ) is suitable for the high bonding strength between dirt and cleaning parts.High-frequency ultrasound (50-200KHZ) is suitable for the cleaning of precision parts.

Availability:

Model:
PHZ0020100
Brand:
Piezohannas
Code:
PHZ0020100

Product Description

20KHz Piezoelectric Ultrasonic Cleaning Transducer for Washing Machine

WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

piezoelectric cleaning transducer

industrial ultrasonic cleaning

industrial piezoelectric ceramic transducer

1.Specifications :

Type	PHZ0020100-PZT-8
Frequency	20kHz ±1kHz
Power	100W
Capacity	5200pf (pzt8)
Radiating surface	68mm
Resonance Resistance	10-20Ω
Piezoceramics size	45155
Length	94mm
Power Supply	Input: 100V~130V or 220V~240V AC
Weight	910g/pcs

Here are some regular sizes for piezoelectric ceramic transducers for cleaning.

Type	Dimension(mm) *diameterlength**	Frequency (KHz)	Capacitance (pF)	Impedance(Ω)	Insulation Resistance(MΩ)	Power (W)
PH002550	25*50	40±1	4000±10%	≤20	2000	30
PH003033	30*33	200±3	2400±10%	≤20	2000	30
PH003840	38*40	50±1	3400±10%	≤20	2000	40
PH003840-1	38*40	170±3	3400±10%	≤25	2000	40
PH004054	40*54.5	4000	124.0±1.0	≤20	≥100	80
PH004054	40*54	130±2	4800±10%	≤20	2000	60
PH004056	40*56	80±3	4800±15%	≤20	2000	60
PHZ003528	45*80	28±1	3800±10%	≤20	≥2000	50
PH004550-1	45*50	40±1	3800±10%	≤20	2000	50
PH004550-1	45*50	40±1	2900±10%	≤20	2000	50
PH004580	45*80	28±1	4200±10%	≤25	2000	50
PH004850	48*50	100±2	4800±15%	≤20	2000	60
PHZ004528	48*50	40±1	3400±10%	≤20	≥2000	60
PHZ003540	45*54	40±1	3800±10%	≤20	≥2000	50
PH005058	50*58	68±1	5600±10%	≤20	2000	60
PH005553	55*53	40±2	5000±15%	≤20	2000	100
PH005568	55*68	28±1	2900±10%	≤25	2000	50
PH005850	58*50	39±1	8500±10%	≤20	2000	120
PHZ003825	59*72	25±1	5500±10%	≤25	≥2000	60
PHZ003828	59*67	28±1	4800±10%	≤20	≥2000	60
PH005968	59*68	28±1	3200±10%	≤20	≥2000	60
PHZ003868	48*60	68±1	4800±10%	≤20	≥2000	50
PHZ004533	45*82	33±1	7000±10%	≤20	≥2000	80
PH006470	64*70	28/40±0.5	4500±15%	≤20	2000	60
PH006475	64*75	33±2	6500±10%	≤20	2000	60
PH006574	65*74	24.8±0.3	4000	≤25	≥100	60
PH006767	67*67	27.8±0.3	5300	≤25	≥100	90
PH006768	67*68	28±1	6500±10%	≤20	2000	80
PH006768-1	67*68	28±1	5100±7%	≤20	2000	80
PHZ005028	67*70	28±1	8200±10%	≤20	≥2000	100
PH006770	67*70	28±1	6500±7%	≤20	2000	100
PH006777	67*77	25±1	9000±10%	≤20	2000	100
PH006777-1	67*77	25±1	6500±7%	≤20	2000	100
PH006774	67*74	25±0.3	6430	≤30	≥100	110
PH006792	67*92	20±2	6500±10%	≤20	2000	100

If these transducer cannot meet your requirements,please tell us your size,our factory can accept the customization.

Ultrasonic Cleaning

Ultrasonic cleaners are used to clean many different types of objects, including jewelry, lenses and other optical parts, watches, dental and surgical instruments, tools, coins, fountain pens, golf clubs, fishing reels, window blinds, firearms, car fuel injectors, musical instruments, gramophone records, industrial parts and electronic equipment. They are used in many jewelry workshops, watchmakers' establishments, and electronic repair workshops.

Ultrasonic cleaning is a process that uses ultrasound (usually from 20–40 kHz) to agitate a fluid. The ultrasound can be used with just water, but use of a solvent appropriate for the item to be cleaned and the type of soiling present enhances the effect. Cleaning normally lasts between three and six minutes, but can also exceed 20 minutes, depending on the object to be cleaned.

Application Image:

piezoelectric ultrasonic cleaning transducer ultrasound transducer cleaning 20KHz Ultrasonic Cleaners 20KHz ultrasonic cleaning transducer ultrasound transducer cleaner cleaning transducer for washing machine 20KHz cleaning transducer ultrasonic cleaning trasducer units industrial piezoelectric ceramic transducer cleaning sensor for washing machine
