PHW-23-G
Piezohannas
PHW-23-G

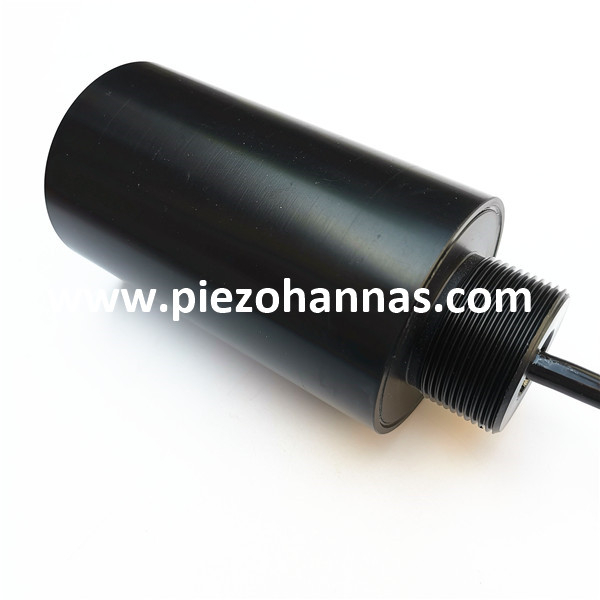

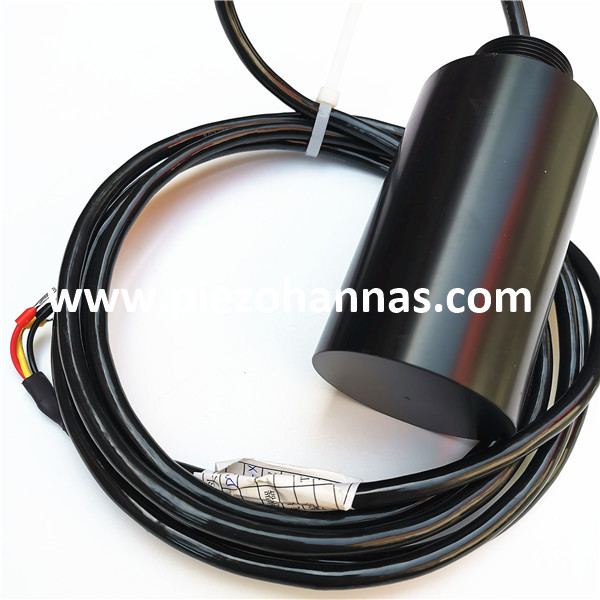

20KHz Horizonally-polarized Cylindrical Ultrasonic Transducer for Ultrasonic Flowmeter
Items | Technical Parameters | Image | |
Name | 23KHz horizonally-polarized non-directional cylindrical underwater acoustic transducer |
| |
Model | PHW-23-G | ||
Frequency | 20KHz±5% | ||
Detection Distance | 2000m | ||
Minimum Parallel lmpedance | 180Ω±20％ | ||
29000pF±20％ @1KHz | |||
Sensitivity
| |||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
horizonally-polarized non-directional | |||
Housing Material
| POM | ||
Usage | ultrasonic flowmeter，submarine range finder | ||
| See the product structure drawing | ||
Protection Level | IP68 | ||
Weight | 350g±5％（Length: 2m） | ||
Wiring Instructions | Red+，White-，Black- ,shielded wire； （without temperature sensor by default） | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Temperature Sensor Schematic of Transducer and Test Circuit Schematic:
Ultrasonic Flowmeter Application：
This flow meter uses Doppler technology and the main intention of this meter is to deliver the analysis of blood flow. After four years, the earliest flow meters have appeared in industrial applications. At present, there are many manufacturing companies were designing different types of clamp-on flow meters to measure the liquid flow within a pipe. These meters use high-frequency sensors by penetrating throughout the pipe wall as well as the liquid by using Doppler otherwise transit time propagation method. So that fluid velocity and flow rate can be determined.
