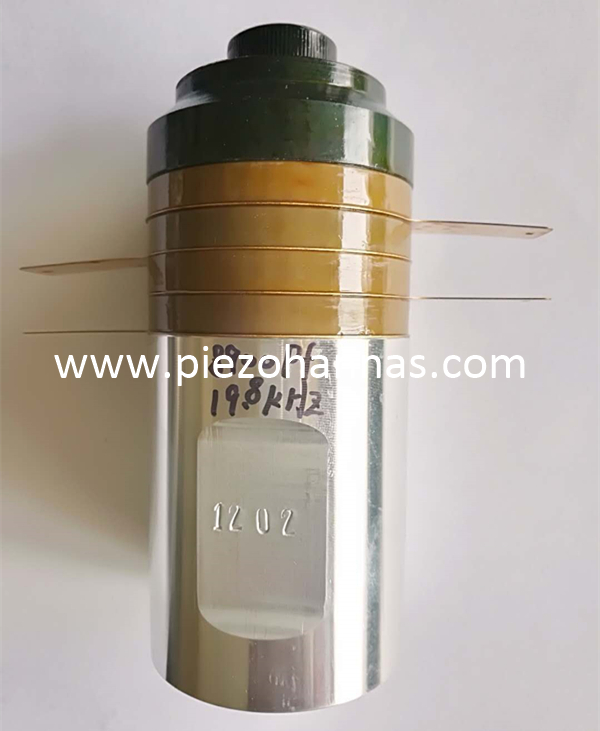

20KHZ High Power Ultrasonic Textile Welding Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 ultrasonic welding transducer |  piezoelectric welding transducer |  ultrasonic welder transducer |
Specifications :
Features:
The ultrasonic transducer for welding produced by our company has the features as follows:
A. Low resonance impedance
B. High Q mechanical value
C. High efficiency of mechanical and electrical transforming
D. Low calorific capacity
E. Large amplitude and high vibration speed.
Here are some regular sizes for piezoelectric ceramic transducers for welding.
Type | Dimension(mm) | Frequency | Capacitance | Impedance(Ω) | Insulation Resistance(MΩ) | Power |
PH13111 | 13 *111 | 62 | 3600 | ≤20 | 2000 | 25 |
PH13111-1 | 13 *111 | 62 | 3000 | ≤20 | 2000 | 25 |
PH1560 | 15 *60 | 40 | 2600 | ≤20 | 2000 | 30 |
PH1562 | 15 *62 | 40 | 2600 | ≤20 | 2000 | 30 |
PH1547 | 15 *47 | 60 | 2600 | ≤20 | 2000 | 50 |
PH2056 | 20 *56 | 50 | 2500 | ≤20 | 2000 | 30 |
PH2589 | 25 *89 | 28 | 2000 | ≤20 | 2000 | 100 |
PH3090 | 30 *90 | 28 | 5700 | ≤20 | 2000 | 200 |
PH3091 | 30 *91 | 30 | 3500 | ≤20 | 2000 | 200 |
PH40125 | 40 *125 | 20 | 8000 | ≤20 | 2000 | 500 |
PH4090 | 40 *90 | 28 | 10000 | ≤20 | 2000 | 500 |
PH50180 | 50 *180 | 15 | 15000 | ≤20 | 2000 | 700 |
PH50107 | 50 *107 | 20 | 15000 | ≤20 | 2000 | 1000 |
PH50107-1 | 50 *107 | 20 | 9000 | ≤20 | 2000 | 1000 |
PH50120 | 50*120 | 20±2 | 13000±10% | ≤20 | ≥2000 | 2000 |
PH60160 | 60*160 | 15 | 11000 | ≤20 | 2000 | 1500 |
PH50116 | 50.2 *116.9 | 20±1 | 15000±10% | ≤20 | ≥2000 | 1000 |
PH61161 | 61*161.8 | 15±0.5 | 14000±15% | ≤20 | ≥2000 | 2000 |
PH51165 | 51*165.4 | 15±0.5 | 10.2nF±10% | ≤20 | ≥2000 | 2000 |
PH64232 | 64*232 | 20.15 | 9670 | ≤10 | ≥100 | 1250 |
PH64116 | 64*116 | 20 | 14680 | ≤25 | ≥100 | 1050 |
PH80233 | 80*233 | 14.90 | 8000 | ≤10 | ≥100 | 2100 |
If these transducer cannot meet your requirements,please tell us your size,our factory can accept the customization.
Ultrasonic welding transducers generate high-frequency vibrations of tens of thousands of times per second through the transducer at the vibrating head, generating local high temperatures, and melting the plastics in the weld zone for welding purposes. The ultrasonic welding transducer generally adopts a bolt-clamped longitudinal array structure, which is connected with the fixing fixture and the gathering head to form a plastic welding vibration system.
The ultrasonic welding transducer has the same starting principle as the cleaning transducer, but it has a higher power consumption. It usually cooperates with a plastic welding vibration system composed of a concentrating horn and a working head to complete ultrasonic welding of plastics, metals and the like.
Ultrasonic welding transducer features:
1. The resonance impedance is low.
2. The mechanical Q value is high.
3. Electroacoustic conversion efficiency is high.
4. Low calorific value.
5. Large amplitude and high vibration speed.
