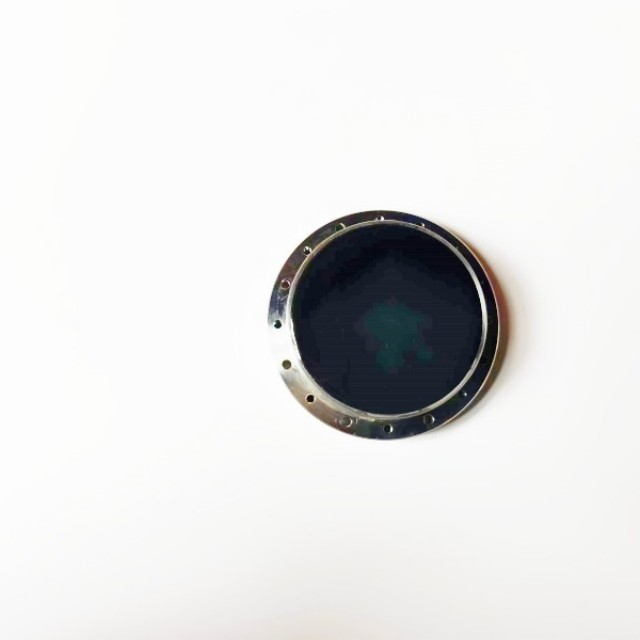

200khz Echo Sounder Transducer Single Beam Transducer for Underwater Acoustic
Measurement content

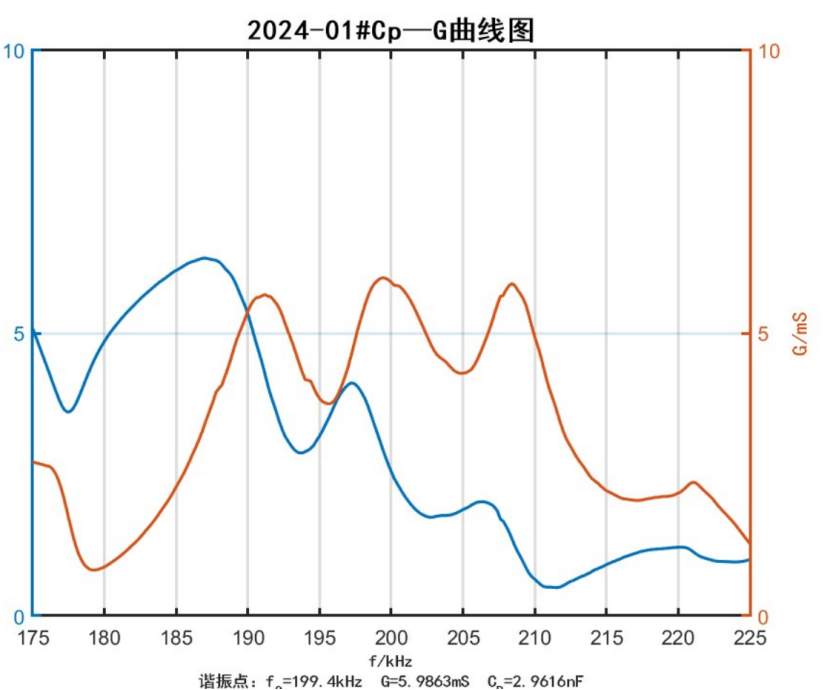

Conductance, capacitance
Measure the conductivity and capacitance curves of the transducer, and provide the conductivity and susceptance data within the working frequency band.
Working frequency band
The working frequency band of the transducer is 190kHz-210kHz.
Transmitter response and efficiency
Measure the transmit response within the working frequency band of the transducer, of which the 200kHz is not less than 175dB,
The fluctuation within the working frequency band does not exceed 3dB, and the efficiency is not less than 50%.
Receiver sensitivity
The 200kHz receiver sensitivity should not be less than -185dB. 4.5. Directivity
The 200kHz opening angle is 5°~7°, and the side lobe is less than -23dB.
Hydrostatic pressure test
The hydrostatic pressure resistance of the transducer should be not less than 1Mpa.
Measurement data

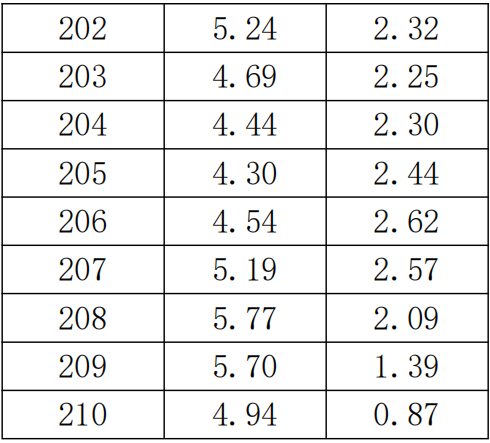

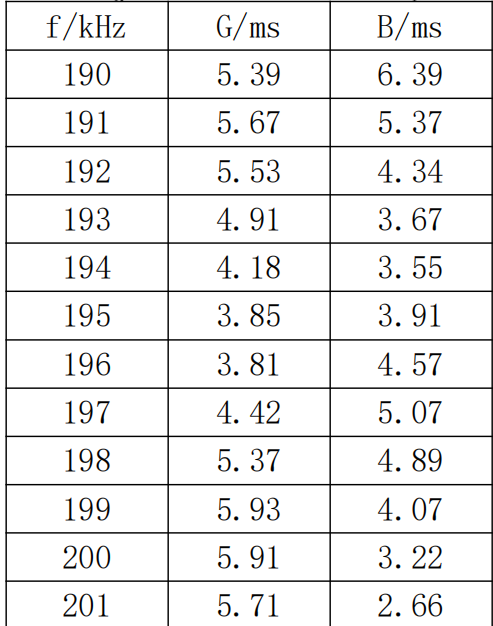

1. Conductance and susceptance parameters

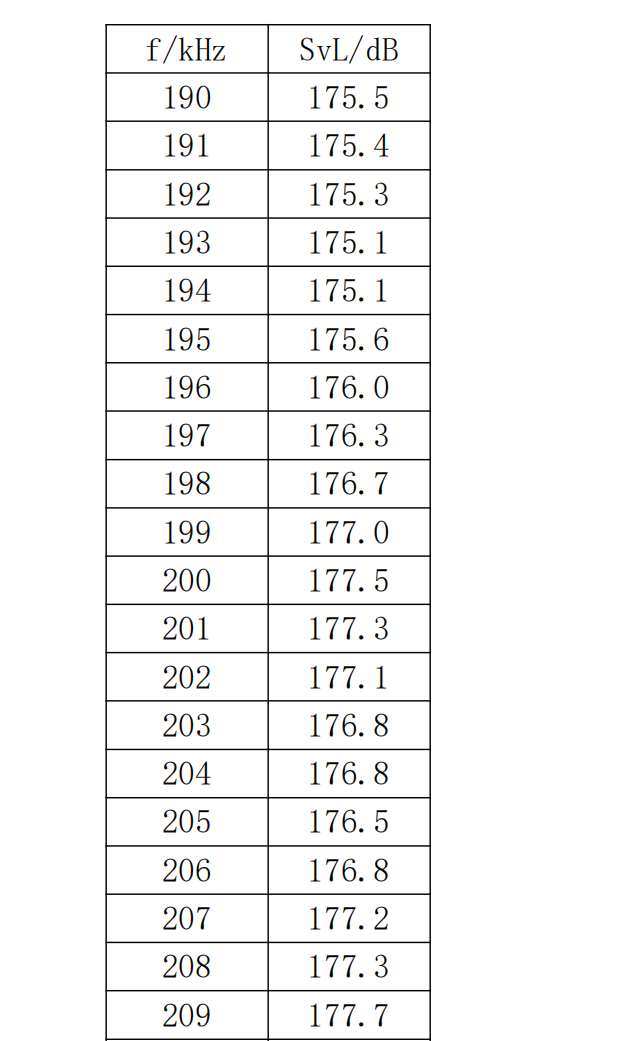

Transmitting response (dB)
The efficiency at 200kHz is 73.34%.
3. Receiving sensitivity (dB)
The receiving sensitivity at 200kHz is -183.5dB.

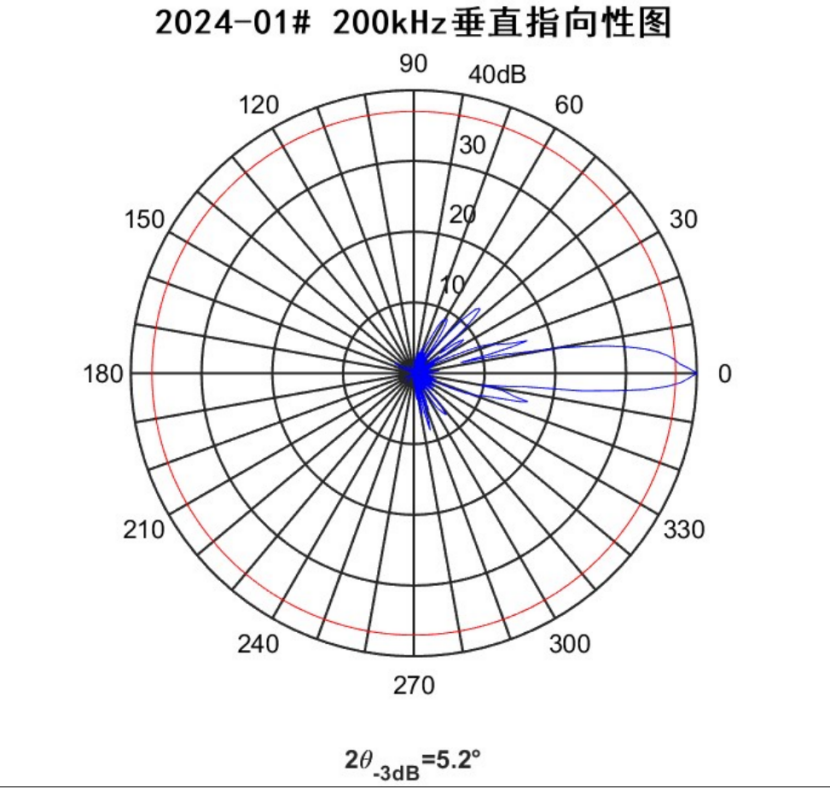

4. Directivity
5. Hydrostatic pressure test
After the transducer is subjected to 1MPa/1h, 0MPa/0.5h, 1MPa/1h, 0MPa/0.5h hydrostatic pressure test, the insulation resistance between the positive and negative electrodes of the transducer is greater than 100MΩ.
200khz Echo Sounder Transducer Single Beam Transducer for Underwater Acoustic
Measurement content
Conductance, capacitance
Measure the conductivity and capacitance curves of the transducer, and provide the conductivity and susceptance data within the working frequency band.
Working frequency band
The working frequency band of the transducer is 190kHz-210kHz.
Transmitter response and efficiency
Measure the transmit response within the working frequency band of the transducer, of which the 200kHz is not less than 175dB,
The fluctuation within the working frequency band does not exceed 3dB, and the efficiency is not less than 50%.
Receiver sensitivity
The 200kHz receiver sensitivity should not be less than -185dB. 4.5. Directivity
The 200kHz opening angle is 5°~7°, and the side lobe is less than -23dB.
Hydrostatic pressure test
The hydrostatic pressure resistance of the transducer should be not less than 1Mpa.
Measurement data
1. Conductance and susceptance parameters
Transmitting response (dB)
The efficiency at 200kHz is 73.34%.
3. Receiving sensitivity (dB)
The receiving sensitivity at 200kHz is -183.5dB.
4. Directivity
5. Hydrostatic pressure test
After the transducer is subjected to 1MPa/1h, 0MPa/0.5h, 1MPa/1h, 0MPa/0.5h hydrostatic pressure test, the insulation resistance between the positive and negative electrodes of the transducer is greater than 100MΩ.
