200Khz High Frequency Ultrasonic Sensor Deviation Rectification Sensor
Technical parameters：
Model | PH00200FCJ04 |
Center resonant frequency (kHz) | 200KHZ±4% |
Fequency Bandwidth | 16kHz |
Detection Distance | 0.10—2M |
Blind spots | <0.1m |
Launch angle beam (-3dB full angle) | 7±2° |
integrated sensitivity (0 dB=200Vp-p；period：50; distance：20cm | -60dB min |
Electrostatic capacitance | 400PF±20% |
Minimum parallel impedance | 600Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | ＜500V |
Operating temperature | -20 ~80℃ |
Protection level | IP65 |
Case Material | aluminium alloy |

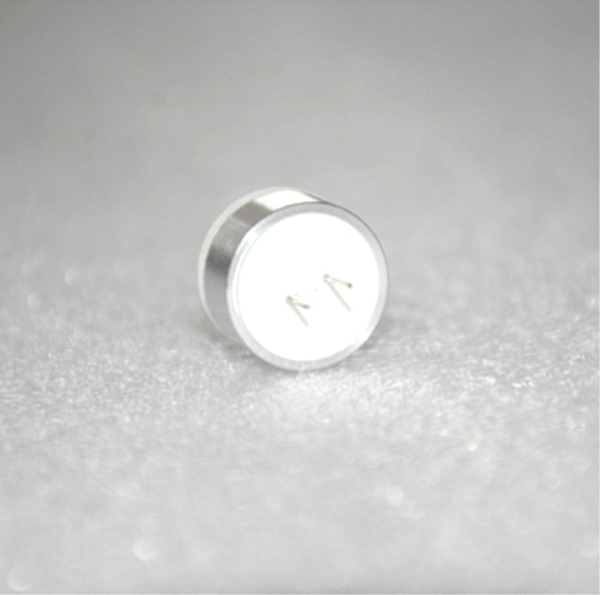

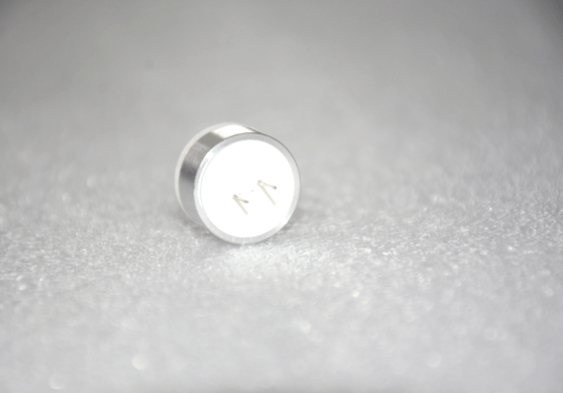

Photo:
Outline Dimension：

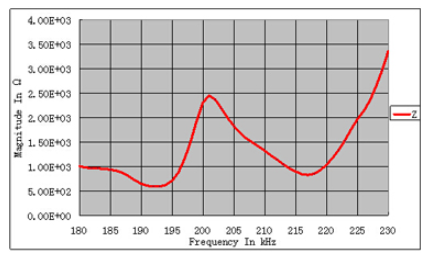

Frequency-Resistance Curve：

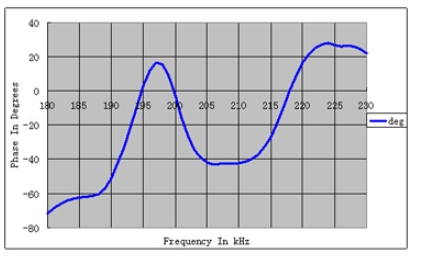

Frequency-Phase Angle Curve：

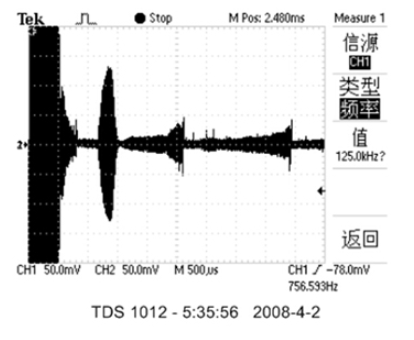

Sensitivity Test:
Transmitting voltage:200Vp-p; period: 50; distance: 20CM；
