200KHz Ultrasonic Proximity Sensor for Distance Measurement
Technical parameters：
Model | PH200F0216 |
Center resonant frequency (kHz) | 200KHZ±4% |
Fequency Bandwidth | 16kHz |
Detection distance | 0.10~2m |
Blind spots | <0.10m |
Launch angle beam (-3dB full angle) | 14±2° |
Integrated sensitivity (0 dB=200 Vp-p；period：50；distance：20cm) | -67dB min |
Electrostatic capacitance | 400PF±20% |
Minimum parallel impedance | 350Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | ＜500V |
Operating temperature | -20 ~80℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Installation | External cycle fixed |
Case Material | ABS |

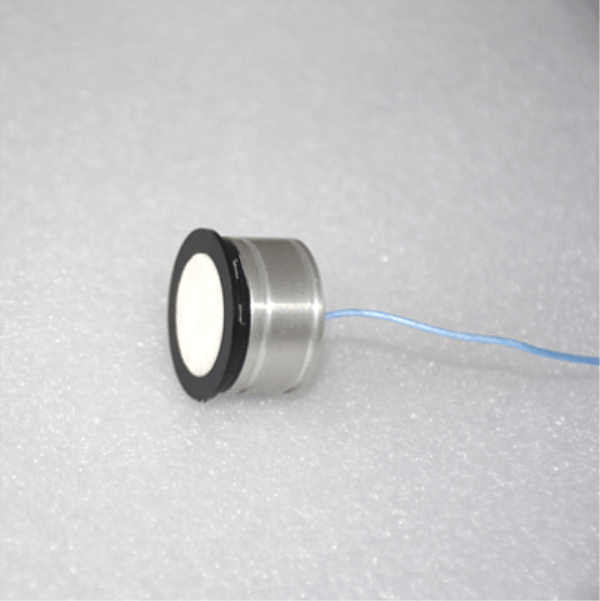

Photo:
Outline Dimension：
Frequency-Resistance Curve：
Frequency-Phase Angle Curve：
Sensitivity Test:
Transmitting voltage:200Vp-p; period: 50; distance: 10CM
![G)FU15MHR]KQZ3KPCV9NT0](http://5krorwxhlkpmrik.leadongcdn.com/cloud/liBqnKjlRioSilrkpkio/G-FU15MHR-KQZ3KPCV9NT0.png)
Directivity Curve：
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
