PZB10007
Piezohannas
PZB10007

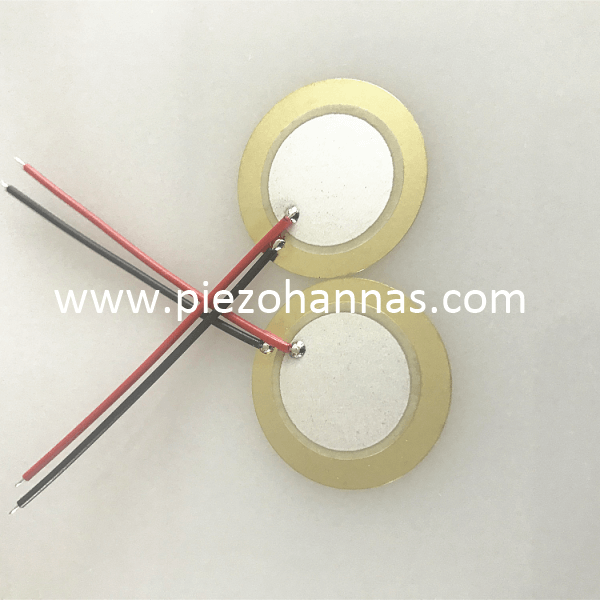

2.6khz External Drive Piezo Diaphram Piezo Element for Buzzer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

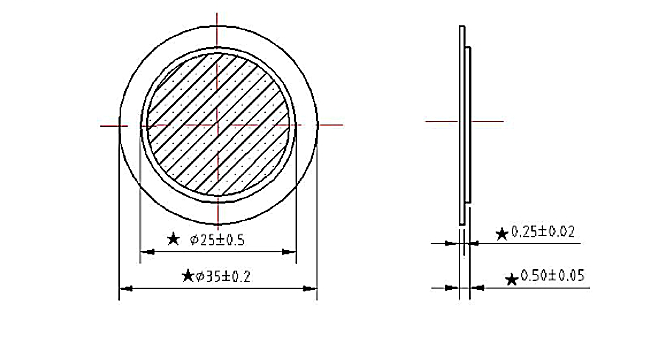

Size Parameters :
Item | Configuration
|
Dimension | 35±0.2mm |
Thickness | 0.5±0.05mm |
Material | brass and ceramic |
Resonant frequency (kHz) Fs | 2.6±0.5
|
Resonant impedance (Ω) Rr | <500Ω |
Capacitance at 120Hz (NF) Co | 35±30% |
Standard Test Conditions | Temperature：25±1℃ Humidity ：45%～75% Air Pressure：86～106kPa |
Configuration | Plane |
Electrode form | Fullness |
Storage temperature (℃) | -30～+80 |
Operating temperature (℃) | -20～+70 |
Buzzer Application:
In common parlance a Buzzer is a signaling device that is not a loudspeaker. It can be mechanical, electromechanical, or electronic (a piezo transducer). BeStar produces Buzzers in every available configuration for a wide variety of applications. A Piezo transducer can produce the sound for panel mount buzzers, household goods, medical devices and even very loud sirens. When a lower frequency is required an electromagnetic buzzer can fill the need. These are very common in automotive chimes and higher end clinical diagnostic devices. The buzzer range includes self drive units with their own drive circuitry (indicators), or external drive units, which allow the designer the flexibility to create their own sound patterns.
