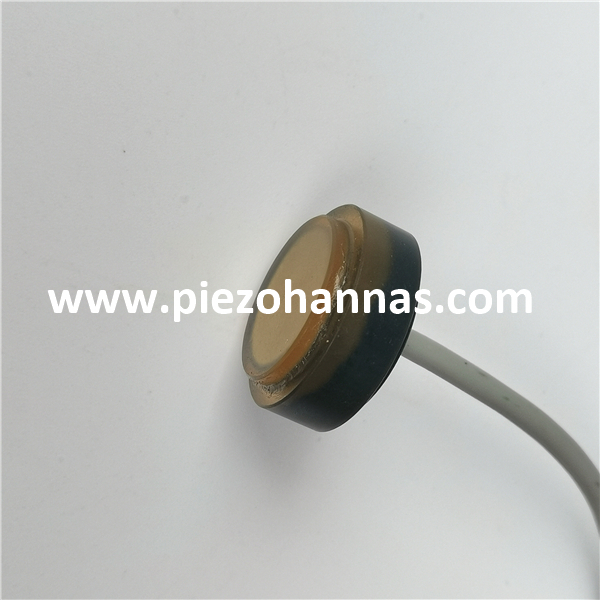

1MHz Ultrasonic Transducer for Ultrasonic Water Meter
Technical parameters:
Items | Technical Parameters | Image | |
Name | 1MHz Heat flow meter transducer |
| |
Model | PHW-1M-01I | ||
Frequency | 1MHz±5% | ||
Detection Distance | 0.05 ～ 3m | ||
Minimum Parallel lmpedance | 120Ω±20％ | ||
Capacitance | 1200pF±20％ @1KHz | ||
Sensitivity | Driving Voltage：24 V、Distance：0.3m、 Echo Amplitude: 650 mV | ||
Operating Voltage | Peak Voltage＜300Vpp | ||
OperatingTemperature | -40～+80℃ | ||
Pressure | ≤10Kilos or 1MPa | ||
Angle | (Beamwidth)Half-power Beam Width@-3dB:5°±10%， Sharp Angle：12°±10% | ||
Housing Material | composite material | ||
Usage | Ultrasonic flowmeter,water meter | ||
Installation Dimension | Checking product structure diagram below | ||
Protection Level | IP68 | ||
Weight | 5g±5％（Length：25cm） | ||
Wiring Instructions | Red: Transducer +, White: Transducer -, Black: Shielded wire; (default without temperature sensor) | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
Ultrasonic Water Meter Application :
Ultrasonic water meter: Ultrasonic water meter uses an ultrasonic transducer, to send ultrasonic sound waves through the fluid, to determine the velocity and translate the velocity into measurement of the water volume. The ultrasonic meter has a sensor that can be either inserted inside or attached outside of the pipe. The sensor measures the water velocity in the pipe and then converts this into flow rate. Ultrasonic water meters are typically very accurate. In addition, they have wide flow measurement ranges, require little maintenance, and have long lifespans due to the lack of internal mechanical components to wear out.
1MHz Ultrasonic Transducer for Ultrasonic Water Meter
