PHW-1M-01E
Piezohannas
PHW-1M-01E

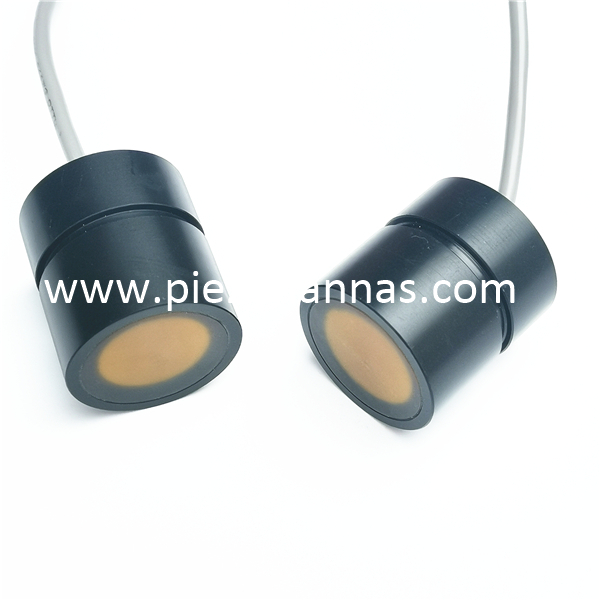

1MHz Ultrasonic Flowmeter Transducer for Ultrasonic Water Flowmeter
Technical parameters:
Items | Technical Parameters | Image | |
Name | 1MHz insertion ultrasonic flowmeter transducer |
| |
Model | PHW-1M-01E | ||
Frequency | 1MHz±5% | ||
Detection Distance | 0.05 ~ 3m | ||
Minimum Parallel lmpedance | 25Ω±20% | ||
2800pF±20% @1KHz | |||
Sensitivity | Driving Voltage:24Vpp、Distance:0.3m、 Echo Amplitude:1.6 V | ||
-40~+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:3.2°±1, Sharp Angle:7.5°±2 | ||
Housing Material | POM | ||
Usage | ultrasonic flowmeter,submarine range finder | ||
See the product structure drawing | |||
Protection Level | IP68 | ||
Weight | 50g±5%(Length:2m) | ||
Wiring Instructions | Red+,White-,Black: shielded wire(temperature sensor is optional) | ||
Admittance Curve | Product Structure Diagram | ||
|
Why do you choose our ultrasonic transducer :
1.Large models of ultrasonic transducer .
We have many different size and housing material help you to choose
2.Large stocks and fast delivery.
3. Owning much experienced team of scientists, designers, engineers and technicians
We can accept the drawing customization or any adjustment of old model
3.Stable performances and low unqualified rate for batch orders
4. Cost-effective alternative for other famous models
5. After -sevice and Technical support
