PD-200-01D
Piezohannas
PD-200-01D
Ultrasonic Distance Transducer Manufacturers
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 ultrasonic distance sensor |  1 meter ultrasonic sensor |  1M ultrasonic distance sensor |
Introduction:

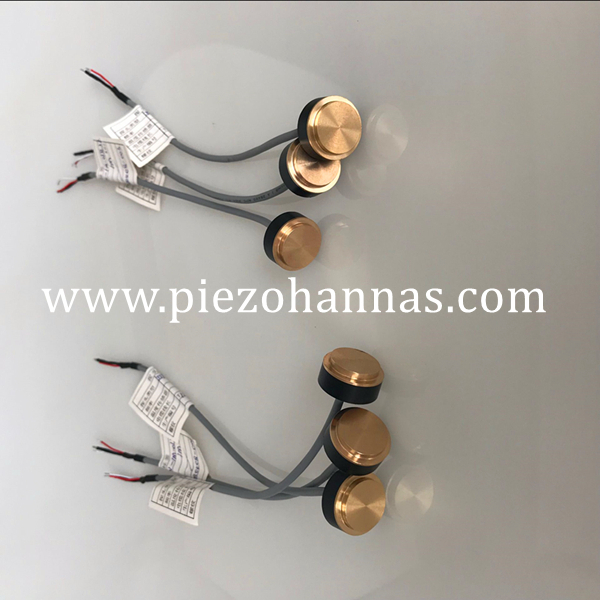

PD-200-01D ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Items | Technical Parameters | Image | |
Name | Ultrasonic transducer – Long distance measurement 1 meters |
| |
Model | PD-200-01D | ||
Frequency | 200KHz±6% | ||
Detection Distance | 0.10～1.5m | ||
Minimum Parallel lmpedance |
2400Ω±20％ | ||
Capacitance | 350pF±20％ @1KHz | ||
Sensitivity | Driving Voltage ：800Vpp， Distance ：0.3m， Echo Amplitude ：30mV | ||
Operating Voltage | Peak Voltage＜1000VPP | ||
Operating Temperature | -40～+80℃ | ||
Pressure | ≤3 Kilos or 0.3MPa | ||
Angle | (Beamwidth) Half-power Beam Width @-3dB:8°±2， Sharp Angle:20°±4 | ||
Housing Material | Under the environment of weak acid and weak base （POM） | ||
Usage | Ultrasonic level gauge, Monitoring,Crashproof, Security | ||
Installation Dimension | Dimension：12*12 | ||
Protection Level | IP68 | ||
Weight | 6g±5％（Length:20cm） | ||
Wiring Instructions | Integrated Interface：Red: transducer+，Yellow: transducer-, Black: shielded wire，（ without temperature sensor） | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Features of ultrasonic sensors:
1.Small size and light-weight
2. High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
