105KHz short range ultrasonic distance sensor for ultrasonic level gauge

105KHz |9° |0.3～3m| used for Ultrasonic level gauge,Ultrasonic Transducer
Availability:
Quantity:
Inquire Add to Basket

  • PHA-105-03D

  • Piezohannas

  • PHA-105-03D

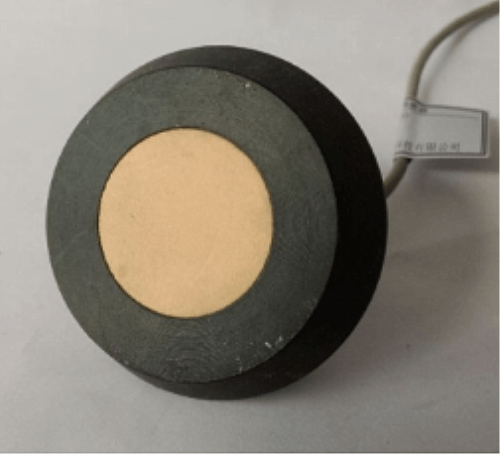

              105KHz Short Range Ultrasonic Distance Sensor for Ultrasonic Level Gauge



Technical parameters：


Items

Technical Parameters


Name

105KHz ultrasonic transducer D type







6G@SI))T6GL7S({[7B6RR

Model

PHA-105-03D

Frequency

105KHz±5%

Detection Distance

0.15～3m

Minimum

Parallel lmpedance

450Ω±20％

Capacitance

1700pF±20％ @1KHz



Sensitivity

Driving Voltage：：800Vpp，Distance:0.6m，

Echo Amplitude：200mV

Operating

Voltage

Peak Voltage＜1000 VPP

Operating

Temperature

-40～+80℃

Pressure

≤3Kilos or 0.3MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB:8°±2，

Sharp Angle:18°±3

Housing Material

POM



Usage

Ultrasonic level gauge,Ultrasonic Transducer

Installation

Dimension

Thread: M38*1.5

Protection Level

IP68

Weight

44g±5％

Wiring Instructions

integrated type：：Red+，White-，Black: shielded wire(temperature sensor is optional )

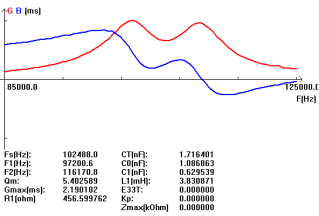

Admittance Curve

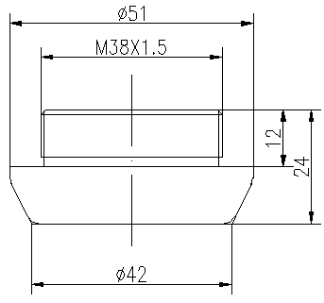

Product Structure Diagram





EL9)1M%VRBWS$MLFP@%__2Y

  0DDP7RBTCREZ6$W@X0$N4EF

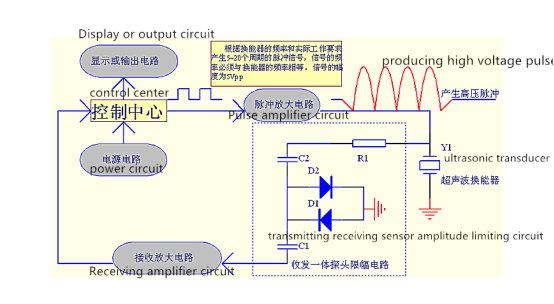

Block diagram of ultrasonic distance transducer :


0RYJG8D(6_Q9XM%86PDG

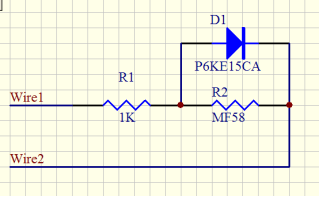

Schematic Diagram of Temperature Sensor:


O3`1PA5YR5%Z5`DQ1R


Integrated type Cable instruction:

1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)

Red: transducer +

White: transducer -

Black: shielding

_SE3ZWY9UEOQPOKBEH(E
