Piezoelectric ceramics have garnered significant attention in the field of materials science due to their unique electromechanical properties. These materials convert mechanical energy into electrical energy and vice versa, making them indispensable in various technological applications. Understanding the structure of piezoelectric ceramics is crucial for enhancing their performance and expanding their use in advanced technologies. This article delves into the intricate structure of piezoelectric ceramics, exploring their crystallographic configurations, microstructural characteristics, and the role these features play in their piezoelectric behavior. By examining the fundamental aspects of these materials, we aim to provide a comprehensive understanding that will aid in the development of more efficient and effective piezoelectric devices. For more in-depth information on this topic, you may refer to Piezoelectric Ceramics.
At the core of piezoelectric ceramics lies their unique crystal structures, which lack a center of symmetry, allowing them to exhibit piezoelectricity. These ceramics are typically ferroelectric materials with perovskite structures, such as lead zirconate titanate (PZT). The perovskite structure is characterized by a cubic lattice where a small cation, often a transition metal like titanium or zirconium, is surrounded by an octahedron of oxygen anions. Larger cations occupy the corners of the cube, contributing to the overall stability of the structure.
The absence of a center of symmetry in these structures means that when mechanical stress is applied, the centers of positive and negative charges within the unit cell become displaced relative to each other. This displacement leads to a net polarization within the material, generating an electric field. Conversely, when an electric field is applied, it causes a deformation in the crystal lattice, resulting in mechanical strain. This bidirectional electromechanical interaction is the essence of the piezoelectric effect in ceramics.
The perovskite structure, with the general formula ABO₃, plays a pivotal role in the piezoelectric properties of ceramics. In this structure, the A-site is typically occupied by large cations like lead (Pb²⁺), while the B-site is occupied by smaller transition metal cations such as titanium (Ti⁴⁺) or zirconium (Zr⁴⁺). The oxygen anions (O²⁻) form an octahedral coordination around the B-site cations. The flexibility of this structure allows for various substitutions at the A and B sites, enabling the tuning of electrical and mechanical properties.
The distortion of the perovskite lattice under external stimuli is fundamental to the piezoelectric effect. In their ferroelectric phase, these materials have a spontaneous polarization due to the off-centering of the B-site cation within the oxygen octahedron. This polarization can be reoriented by an external electric field, a property that is exploited in many applications. The ability to engineer the perovskite structure through chemical modifications allows for the optimization of piezoelectric properties for specific uses.
Piezoelectric ceramics are composed of numerous domains, regions where the electric dipoles are uniformly aligned. These domains are separated by domain walls, which are thin interfaces where the direction of polarization changes. The domain structure significantly influences the piezoelectric properties, as the movement of domain walls under external stimuli contributes to the material's overall response.
Polarization in piezoelectric ceramics is established through a process called poling, where an external electric field is applied to the material at elevated temperatures. This field aligns the domains in the direction of the field, resulting in a net polarization. The alignment enhances the piezoelectric effect, as the material exhibits a greater change in polarization under mechanical stress. The stability of this polarized state is crucial for the long-term performance of piezoelectric devices.
Domain walls are of particular interest because their movement contributes to the dielectric and piezoelectric responses of the ceramics. Under an external electric field or mechanical stress, domain walls can move, leading to changes in domain configurations. This movement enhances the material's susceptibility to external stimuli, thereby increasing its piezoelectric coefficients. However, excessive domain wall motion can lead to energy losses and hysteresis, which are undesirable in high-precision applications.
Materials scientists work to optimize the domain structure by controlling factors such as grain size, composition, and processing conditions. By tailoring these parameters, it is possible to achieve a balance between high piezoelectric response and minimal energy losses, enhancing the performance of piezoelectric ceramics in practical applications.
The microstructure of piezoelectric ceramics, including grain size, grain boundaries, and porosity, plays a significant role in their electromechanical properties. Grain size affects the movement of domain walls and the material's dielectric properties. Smaller grains can inhibit domain wall motion, reducing dielectric losses but potentially lowering the piezoelectric response. Conversely, larger grains may enhance piezoelectric properties but increase dielectric losses due to greater domain wall mobility.
Porosity adversely affects the mechanical strength and dielectric properties of the ceramics. The presence of pores can act as stress concentrators, leading to mechanical failure under load. Therefore, controlling the microstructure through careful processing techniques is essential for optimizing the performance of piezoelectric ceramics.
Grain boundaries in piezoelectric ceramics influence the movement of domain walls and the conduction of electric charges. They can impede domain wall motion, which affects the material's response to external fields. Additionally, impurities and secondary phases often segregate at grain boundaries, impacting the electrical and mechanical properties. Understanding and controlling grain boundary characteristics are vital for enhancing the reliability and efficiency of piezoelectric devices.
The properties of piezoelectric ceramics can be tailored by modifying their chemical composition. Doping with different elements allows for the adjustment of the material's Curie temperature, piezoelectric coefficients, and mechanical quality factors. For instance, adding dopants such as niobium (Nb) or lanthanum (La) can enhance the piezoelectric response and dielectric properties.
There are two main types of dopants used in piezoelectric ceramics: donor dopants and acceptor dopants. Donor dopants, which introduce additional electrons, can increase the material's dielectric constant and reduce mechanical losses. Acceptor dopants, which create holes, can improve the mechanical quality factor but may decrease the dielectric constant. By carefully selecting and controlling dopant concentrations, it is possible to optimize the ceramics for specific applications.
The concept of the morphotropic phase boundary is crucial in enhancing the piezoelectric properties of ceramics such as PZT. The MPB is a compositional range where two phases with different crystal structures coexist, typically tetragonal and rhombohedral phases. Near the MPB, the material exhibits enhanced piezoelectric properties due to the increased ease of polarization rotation between the phases. This phenomenon leads to higher piezoelectric coefficients and is exploited in designing high-performance piezoelectric materials.
Research continues to explore new compositions and dopants to create materials with MPBs at desired temperatures and compositions. The goal is to develop piezoelectric ceramics with superior properties that are also environmentally friendly, such as lead-free alternatives to traditional PZT ceramics.
Environmental concerns have driven the search for lead-free piezoelectric ceramics. Materials such as bismuth sodium titanate (BNT) and potassium sodium niobate (KNN) have emerged as promising candidates. These materials aim to replicate the excellent piezoelectric properties of PZT without the environmental and health hazards associated with lead.
Developing lead-free ceramics involves overcoming challenges related to achieving high piezoelectric coefficients and thermal stability. Researchers focus on engineering the crystal structure and domain configuration to enhance properties. Doping and creating solid solutions are strategies used to improve the performance of lead-free piezoelectric ceramics, making them viable for commercial applications.
Significant progress has been made in enhancing the properties of lead-free piezoelectric ceramics. For example, the substitution of elements like lithium (Li) and tantalum (Ta) in KNN-based ceramics has led to improved piezoelectric responses and Curie temperatures. Additionally, the development of textured ceramics and domain engineering techniques has contributed to performance enhancements.
The ongoing research aims to address the limitations of lead-free ceramics, such as lower piezoelectric coefficients compared to PZT and difficulties in processing. By advancing our understanding of the structure-property relationships in these materials, it is possible to develop lead-free piezoelectric ceramics that meet or exceed the performance of traditional lead-based materials.
The unique properties of piezoelectric ceramics make them suitable for a wide range of applications. They are essential components in sensors, actuators, transducers, and energy harvesting devices. Their ability to convert mechanical energy into electrical energy enables their use in ultrasonic imaging, precision actuators for optics, and vibration control systems.

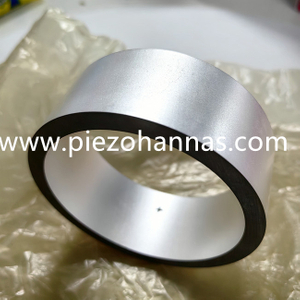

In the medical field, piezoelectric ceramics are used in ultrasonic transducers for imaging and therapy, such as lithotripsy devices for breaking down kidney stones. In industrial applications, they are employed in nondestructive testing equipment to detect flaws in materials. The development of high-performance piezoelectric ceramics continues to expand their applications in advanced technologies.

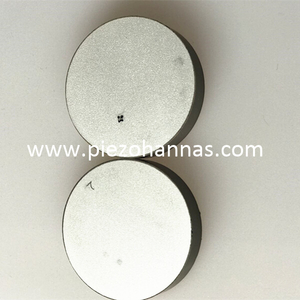

Piezoelectric ceramics play a significant role in energy harvesting systems, where they convert mechanical vibrations into electrical energy. This capability is harnessed in applications ranging from powering small electronic devices to developing self-powered sensors. The integration of piezoelectric materials into structural components enables the development of smart structures with health monitoring capabilities.
In sensing applications, piezoelectric ceramics are used to detect pressure, acceleration, and acoustic signals. Their sensitivity and reliability make them ideal for use in harsh environments. The continuous advancement in piezoelectric ceramic technology enhances the performance and expands the possibilities of sensing and energy harvesting applications.
Understanding the structure of piezoelectric ceramics is fundamental to advancing their performance and extending their applications. The interplay between crystal structure, domain configuration, and microstructural features dictates the electromechanical properties of these materials. Through careful control of composition, doping, and processing conditions, it is possible to tailor the properties of piezoelectric ceramics to meet specific needs.
The ongoing research and development in this field hold promise for the creation of new materials with enhanced properties, including environmentally friendly lead-free alternatives. Piezoelectric ceramics will continue to play a vital role in various technological advancements, contributing significantly to fields such as medical imaging, energy harvesting, and precision instrumentation. For further exploration of piezoelectric ceramics and their applications, you may visit Piezoelectric Ceramics.
Piezoelectric ceramics typically have a perovskite crystal structure with the general formula ABO₃. In this structure, a large cation occupies the A-site, while a smaller transition metal cation occupies the B-site, surrounded by an octahedron of oxygen anions. The lack of a center of symmetry in this structure allows for the piezoelectric effect, where mechanical stress leads to electrical polarization.
The domain structure, consisting of regions with uniformly aligned electric dipoles, significantly impacts piezoelectric properties. The movement of domain walls under external electric fields or mechanical stress contributes to the material's overall electromechanical response. Optimizing domain configurations enhances piezoelectric coefficients and material performance.
Doping involves introducing impurities into the ceramic to modify its electrical and mechanical properties. Donor dopants can increase dielectric constants and reduce losses, while acceptor dopants can enhance mechanical quality factors. Controlled doping allows for the tailoring of piezoelectric properties to suit specific applications.
The MPB is a compositional range in certain piezoelectric ceramics where two crystallographic phases coexist, typically enhancing piezoelectric properties. Near the MPB, the ease of polarization rotation increases, leading to higher piezoelectric coefficients. This concept is crucial in designing materials like PZT with superior performance.
Lead-free piezoelectric ceramics are important due to environmental and health concerns associated with lead-based materials like PZT. Developing lead-free alternatives such as BNT and KNN aims to provide materials with comparable piezoelectric properties without the harmful effects of lead, promoting sustainable and safe technological advancements.
Microstructural features like grain size, grain boundaries, and porosity affect the mechanical strength and electrical properties of piezoelectric ceramics. Controlling the microstructure through processing techniques can optimize domain wall movement and enhance piezoelectric responses while minimizing energy losses and mechanical failures.
Piezoelectric ceramics are used in a variety of applications including sensors, actuators, ultrasonic transducers, energy harvesting devices, and medical imaging equipment. Their ability to convert mechanical energy into electrical energy and vice versa makes them invaluable in industries ranging from healthcare to aerospace.
