Piezoelectric materials have revolutionized various industries due to their unique ability to convert mechanical energy into electrical energy and vice versa. This remarkable property has led to their widespread application in sensors, actuators, and energy harvesting devices. Among these materials, Piezoelectric Ceramics stand out for their efficiency and versatility. This article delves into the fundamental mechanisms underlying piezoelectric materials, exploring their structural characteristics, operational principles, and the factors influencing their performance.
Piezoelectricity arises from the electromechanical interaction within certain crystalline materials lacking a center of symmetry. When mechanical stress is applied to these materials, there is a displacement of charge centers within the crystal lattice, leading to an electric polarization. Conversely, applying an electric field can induce mechanical deformation in the material—a phenomenon known as the converse piezoelectric effect.
At the atomic level, piezoelectricity is the result of the relative displacement between positive and negative ions in a crystal lattice. The lack of inversion symmetry in the crystal structure is crucial because it allows for a net polarization when the material is deformed. Materials like quartz, Rochelle salt, and certain ceramics exhibit significant piezoelectric effects due to their unique crystallographic configurations.
The piezoelectric effect can be quantitatively described using tensor mathematics. The direct piezoelectric effect is expressed as:
\[ D_i = d_{ijk} T_{jk} \]
Here, \( D_i \) is the electric displacement, \( d_{ijk} \) is the piezoelectric coefficient tensor, and \( T_{jk} \) is the applied stress tensor. The converse effect is similarly defined, linking the induced strain to an applied electric field.
These equations highlight the anisotropic nature of piezoelectric materials—their properties vary with direction within the crystal lattice. Understanding these mathematical relationships is essential for designing devices that exploit piezoelectric effects, such as precision actuators and sensors.
The piezoelectric effect is intimately linked to the symmetry properties of a material's crystal structure. Only non-centrosymmetric crystals—those lacking a center of inversion—exhibit piezoelectricity. Of the 32 crystal classes, 21 are non-centrosymmetric, and 20 of these are piezoelectric. These classes can be further categorized into polar and non-polar crystals.
Polar crystals possess a spontaneous polarization due to their asymmetrical charge distribution even without external stress. Materials like lithium niobate and gallium nitride fall into this category. Their inherent polarization can be altered by mechanical stress, enhancing their piezoelectric response. These materials are often used in applications requiring strong piezoelectric effects, such as high-frequency transducers.
Non-polar piezoelectric crystals do not have spontaneous polarization in their unstressed state. However, when mechanical stress is applied, they develop an electric polarization due to the induced displacement of their charge centers. Quartz is a classic example, widely used in oscillators and frequency control devices due to its stable piezoelectric properties.

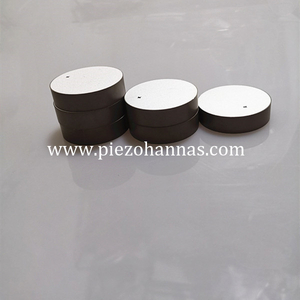

Among the various piezoelectric materials, piezoelectric ceramics, such as lead zirconate titanate (PZT), have garnered significant attention. These materials are ferroelectric ceramics that can be polarized through an external electric field, aligning their domains to exhibit strong piezoelectric effects. Piezoelectric Ceramics offer advantages such as high electromechanical coupling and adaptability in shape and size.
Piezoelectric ceramics exhibit properties that are essential for various applications:
High dielectric constants, allowing efficient interaction with electric fields.
Significant piezoelectric coefficients, enabling substantial mechanical responses to electrical stimuli.
Thermal stability, maintaining performance across a range of temperatures.
Their mechanical strength and ease of fabrication make them suitable for mass production of sensors, actuators, and transducers.
Environmental concerns over lead content in PZT have spurred research into lead-free piezoelectric ceramics. Materials like potassium sodium niobate (KNN) and bismuth ferrite (BiFeO3) are promising candidates. These alternatives aim to match or exceed the performance of traditional ceramics while eliminating toxic elements, thereby expanding the application scope in biomedical and environmental technologies.
To comprehend the mechanism of piezoelectric materials, it's essential to consider the atomic interactions within the crystal lattice. Under mechanical stress, ions within the lattice shift positions, altering the electric dipole moments. This shift leads to a net polarization across the material.
In ferroelectric materials like piezoelectric ceramics, dipole domains can be reoriented by an external electric field. This reorientation contributes to the material's piezoelectric response. The ability to pole these materials (aligning the domains) enhances their piezoelectric coefficients significantly compared to natural crystals.
Manipulating the domain structures within piezoelectric ceramics allows for optimization of their properties. Techniques such as domain wall engineering involve controlling the size, density, and mobility of domain walls to improve the material's piezoelectric response and mechanical quality factor. This level of control is crucial for high-precision applications like medical ultrasound imaging and nanotechnology actuators.
The ability of piezoelectric materials to interconvert mechanical and electrical energy underpins numerous technological applications.
Piezoelectric sensors exploit the direct effect to convert mechanical strain into electrical signals. They are widely used in pressure sensors, accelerometers, and acoustic devices. Actuators utilize the converse effect, where electrical signals induce precise mechanical movements. This functionality is vital in applications requiring nanometer-scale positioning, such as in atomic force microscopes and optical device alignment.
Piezoelectric materials are integral to energy harvesting technologies, capturing ambient mechanical vibrations and converting them into usable electrical energy. This approach is particularly beneficial for powering wireless sensor networks and wearable electronics, where replacing batteries is impractical. Advances in materials science aim to enhance the efficiency of piezoelectric energy harvesters through improved material properties and structural designs.
In the medical field, piezoelectric materials are used in ultrasound imaging, where they generate and detect ultrasonic waves. Their precision and reliability enable high-resolution imaging essential for diagnostic procedures. Additionally, piezoelectric actuators are employed in microsurgery devices and drug delivery systems, highlighting the biocompatibility and functional versatility of these materials.
Ongoing research focuses on developing new piezoelectric materials with enhanced performance and environmental sustainability. Nanostructured materials, such as piezoelectric nanowires and thin films, exhibit unique properties due to their high surface-area-to-volume ratios and quantum effects. These materials hold promise for next-generation flexible electronics and highly sensitive sensors.
Combining piezoelectric ceramics with polymers creates composites that blend the mechanical flexibility of polymers with the functional properties of ceramics. These composites are particularly useful in applications requiring conformable or stretchable devices, such as wearable health monitors and tactile sensors for robotic systems.
Biodegradable and biocompatible piezoelectric materials are gaining attention for medical implants and tissue engineering. Materials like polyvinylidene fluoride (PVDF) and its copolymers are explored for their favorable piezoelectric properties and compatibility with biological tissues. These materials can facilitate electrical stimulation for bone growth or serve as sensors within the body without adverse effects.
Despite significant advancements, challenges remain in optimizing piezoelectric materials for specific applications. One primary concern is the trade-off between piezoelectric performance and material sustainability, particularly regarding lead content in traditional ceramics. Researchers are striving to discover or synthesize new materials that offer high performance without environmental drawbacks.
Improving the thermal and mechanical stability of piezoelectric materials is crucial for expanding their use in demanding environments. Advanced processing techniques and doping methods are employed to enhance the durability and operational range of these materials, making them suitable for aerospace, automotive, and industrial applications where high temperatures and stresses are common.
The integration of piezoelectric materials with microelectronic devices opens avenues for miniaturized systems with advanced functionalities. Microelectromechanical systems (MEMS) utilizing piezoelectric thin films can perform sensing and actuation at microscopic scales. This integration requires precise fabrication techniques to maintain material properties while interfacing with electronic components.
Piezoelectric materials, particularly Piezoelectric Ceramics, play a pivotal role in modern technology by bridging the mechanical and electrical domains. Understanding their mechanisms—from atomic-scale interactions to macroscopic properties—enables the design of devices that are integral to industries ranging from healthcare to aerospace. Continued research and innovation are essential to overcome current challenges, such as environmental concerns and material limitations, paving the way for new applications and enhanced performance of piezoelectric technologies.
1. How do piezoelectric ceramics differ from natural piezoelectric crystals?
Piezoelectric ceramics are engineered materials that exhibit stronger piezoelectric effects than natural crystals like quartz. They can be manufactured in various shapes and sizes, and their properties can be tailored through doping and domain engineering. This versatility makes them more suitable for industrial applications requiring high performance.
2. What are the environmental concerns associated with piezoelectric ceramics?
Traditional piezoelectric ceramics often contain lead, which poses environmental and health risks. Disposal and recycling of these materials require careful handling to prevent lead contamination. Research is ongoing to develop lead-free alternatives that match the performance of lead-based ceramics without the associated environmental hazards.
3. How does domain engineering improve piezoelectric material performance?
Domain engineering involves manipulating the orientation and behavior of domains within ferroelectric materials. By controlling domain wall movement and density, engineers can enhance piezoelectric coefficients and mechanical quality factors, leading to improved responsiveness and efficiency in devices utilizing these materials.
4. Can piezoelectric materials be used for energy harvesting from everyday movements?
Yes, piezoelectric materials can harvest energy from mechanical vibrations and movements encountered in daily life, such as walking or machinery operation. However, the amount of energy generated is relatively small, and efficient energy harvesting requires optimization of material properties and device design to be practical for powering electronic devices.
5. What role do piezoelectric materials play in medical imaging?
In medical ultrasound imaging, piezoelectric materials are critical for generating and receiving ultrasonic waves. They convert electrical signals into mechanical vibrations to produce sound waves that travel through the body and then convert returning echoes back into electrical signals for image formation, enabling non-invasive internal examinations.
6. Are there flexible piezoelectric materials for wearable technology?
Yes, composite materials that combine piezoelectric ceramics with flexible polymers have been developed to create flexible piezoelectric devices. These materials maintain piezoelectric functionality while being conformable, making them ideal for wearable sensors, flexible electronics, and devices that require bending or stretching.
7. What future developments are expected in piezoelectric material technology?
Future developments aim at discovering new piezoelectric materials with superior properties, improving environmental sustainability through lead-free options, and integrating piezoelectric materials with advanced electronics for miniaturized sensors and actuators. Advances in nanotechnology and material science are expected to unlock new applications and enhance existing technologies.
