CH-18
Piezohannas
CH-18

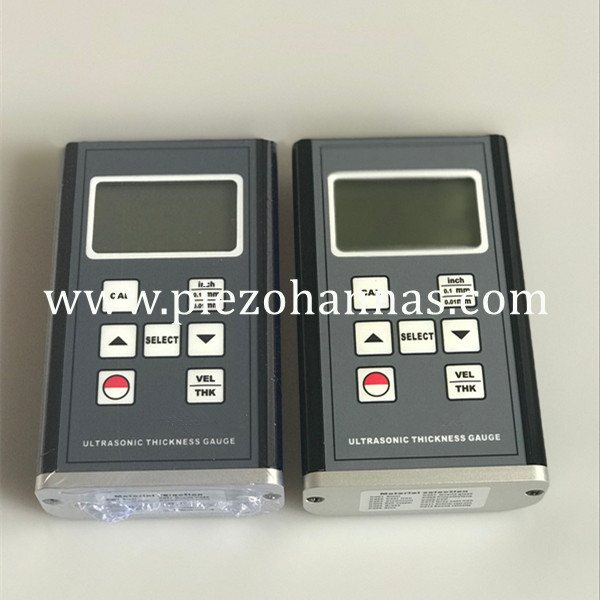

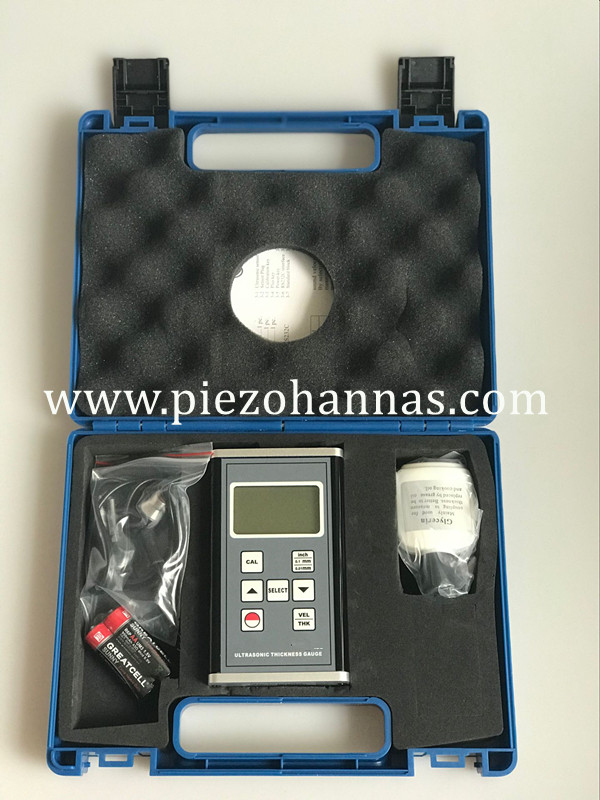

400mm Bluetooth D-meter for Ultrasonic Thickness for Sheet Metal
Specification:
Items | Technical Parameters | Image |
Name | 400mm Bluetooth ultrasonic thickness gauge |
|
Mode | CH-18 | |
Measurement range | 0.75~400mm (45# steel) (Depend on Probe) | |
Display | 4 Digit, 10 mm LCD | |
Accuracy |
± (0.5%n + 0.1) | |
Lower Limit Steel Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer | |
Resolution | 0.1mm / 0.01mm / 0.001inch | |
Power off | Auto Power off & Manual Power Off | |
Operation temperature | Temperature: 0~40 °C, Humidity: < 85 %RH | |
Power Supply | 4 x 1.5 V AAA (UM-4) Battery | |
Calibration Block | Included | |
Battery Indication | Low Battery Indication | |
Sound Velocity | 1000~9999 m/s | |
Dimension | 140 x 72 x 34 mm | |
Weight | 185 g (Not Including Batteries) |
Detailed Product Description
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output”
Optional Accessories:
1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm
Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
![{A1MVT350(81]NR)TPVN`CN.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/imBqnKjlRikSqroikoin/A1MVT350-N.png "{A1MVT350(81]NR)TPVN`CN.png")
![HQ72PI[1CV0X]%QLSCE(0BF.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ilBqnKjlRikSqroiqqio/HQ72PICV0X.png "HQ72PI[1CV0X]%QLSCE(0BF.png")
