tangential tube piezoelectric tube cost piezoelectric transducer

Share to:

tangential tube piezoelectric tube cost piezoelectric transducer

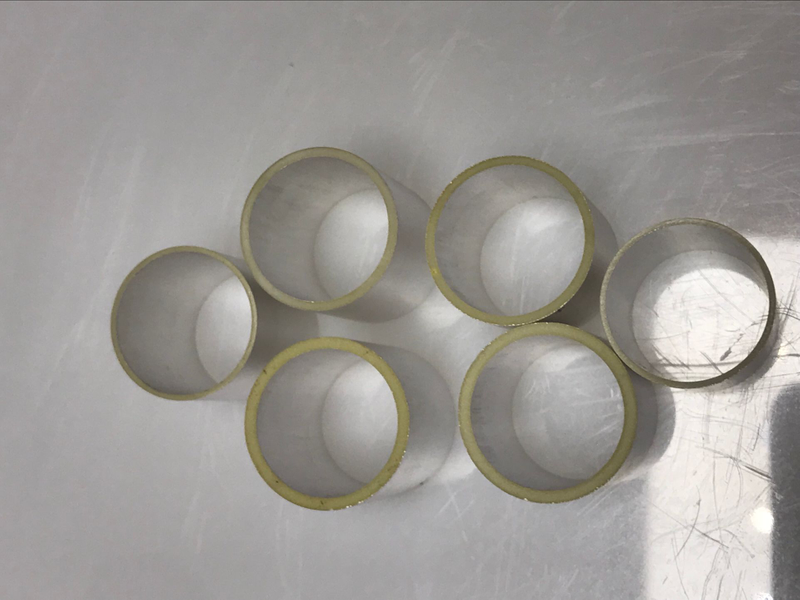

Name: tangential tube piezoelectric tube cost piezoelectric transducer
Brand: Piezohannas
Rating: 5.0 (4 reviews)

tangential tube

Applications：Underwater communication, Ultrasonic animal repelent, Ultrasonic insect repelent, ultrasonic pest control piezo transducer.
micro-actuator, micro pump / liquid nozzles, underwater acoustics, sonar, ultrasound, medical diagnosis, treatment, etc

Availability:

Quantity:



Inquire Add to Basket

Model:
PT1000K079
Brand:
Piezohannas
Code:
PT1000K079

Product Description

Tangential Tube Piezoelectric Tube Cost Piezoelectric Transducer

WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

piezoelectric tubes transducer

tangential tube transducer

piezoelectric tube cost

Mainly used for assembling large ultrasonic transducer array or adhesive in various kind of curved beam to measure the impact and vibration.It also can be used to assemble various kind of vibration pickup and acoustic pick up.Sometimes,the cross section with a certain angle trapezoid used to assemble high-power and lower frequency of mosaic pipe which is used in active sonar equipment.

Application: used for the ocean project,sonar, hydrophone, underwater comunications device,Ultrasonic animal repelent, Ultrasonic insect repelent, ultrasonic pest control piezo transducer,displacement of mirror for laser optics by several micrometers and others.

Standard Size of Piezo Tube:

Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm

Dimension （OD ×ID ×H）mm	Radial frequency(KHz)	Dielectric loss(%)	K31(%)	Capacitance(pF)
Φ15×Φ11×10	70±5%	2	30	4680±10%
Φ20×Φ16×15	50±5%	2	30	9700±10%
Φ25×Φ21×15	39±5%	2	35	12400±10%
Φ29×Φ25×20	34±5%	2	35	19400±10%
Φ30×Φ25×18	33±5%	2	35	14250±10%
Φ32×Φ28×20	36±5%	2	35	21600±10%
Φ34×Φ30×20	28±5%	2	35	23000±10%
Φ38×Φ32×25	26±5%	2	35	21000±10%
Φ40×Φ32×37	25±5%	2	35	24000±10%
Φ45×Φ39×25	22±5%	2	35	25200±10%
Φ50×Φ44×25	19±5%	2	35	28200±10%
Φ55×Φ39×30	19±5%	2	35	33800±10%
Φ60×Φ54×30	16±5%	2	35	41000±10%
Φ65×Φ59×30	15±5%	2	35	44600±10%
Φ75×Φ67×16	13±5%	2	35	20400±10%
Φ80×Φ74×20	12±5%	2	35	36900±10%
Φ90×Φ84×20	10±5%	2	35	52180±10%

Size (mm)			fm (KHz)	fn (KHz)	Capacitance(pf)	tgδ (%)	d33 ()
OD	ID	Height	fm (KHz)	fn (KHz)	Capacitance(pf)	tgδ (%)	d33 ()
18	15	20	51.2	52.0	13388	1.7	420
20	17	15	47.8	49.4	14056	1.5	420
24	20	20	47.1	48.8	12830	2.0	420
34	30	20	29.5	31.3	1510	0.2	280
40	32.5	37	24.4	25.1	21200	1.5	280
44	38	29	22.1	23.4	23120	1.5	280
51	45	36	19.1	20.5	18010	1.5	420
51	45	38	22.8	23.8	9901	0.2	420
53	45	41	17.8	22.0	3060	0.2	420
69	63	25	16.0	18.1	16040	0.5	280
76.5	68	40	14.6	15.2	19730	0.5	280
80	60	150	17.2	18.3	34420	0.21	280
142	132	80	7.6	8.0	8635	0.36	300
12	9	6	70	72	5860	0.3
15	13	3.2	64	68a	3700	1.7
18	15	15	63	64	5940	0.2
18	15	20	63	64	5836	0.2
201715	17	15	46.9	50	14109	1.5

Size (mm)			Radial frequency fr(KHZ)	Coupling Coefficient Kp(％)	Static Capacitance C(PF)	Piezoelectric Strain Constant d3310-12(CN)	Dielectric Loss tg(%)
ID	OD	Height	Radial frequency fr(KHZ)	Coupling Coefficient Kp(％)	Static Capacitance C(PF)	Piezoelectric Strain Constant d3310-12(CN)	Dielectric Loss tg(%)
15	11	10	70±5%	30	4680±10%	500	2
20	16	15	50±5%	30	9700±10%	500	2
25	21	15	39±5%	35	12400±10%	500	2
29	25	20	34±5%	35	19400±10%	550	2
30	25	18	33±5%	35	14250±10%	550	2
32	28	20	36±5%	35	21600±10%	550	2
34	30	20	28±5%	35	23000±10%	550	2
38	32	25	26±5%	35	21000±10%	550	2
40	32	37	25±5%	35	24000±10%	550	2
45	39	25	22±5%	35	25200±10%	550	2
50	44	25	19±5%	35	28200±10%	550	2
55	39	30	19±5%	35	33800±10%	550	2
60	54	30	16±5%	35	41000±10%	550	2
65	59	30	15±5%	35	44600±10%	550	2
75	67	16	13±5%	35	20400±10%	550	2
80	74	20	12±5%	35	36900±10%	550	2
90	84	20	10±5%	35	52180±10%	550	2

PZT Material:

- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.

- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.

- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.

Piezo ceramic Discs	Diameter	PZT-4	PZT-5	PZT-8
	Diameter	3-100	3-100	3-100
	Thickness	0.3-10	0.25-15	0.4-8
Piezo ceramic Rings	Outside diameter	3-100	3-100	3-100
	Inside diameter	≥ 2	≥ 2	≥ 2
	Thickness	0.3-10	0.25-15	0.4-8
Piezo ceramic Tubes	Outside diameter	3-108	3-108	3-105
	Inside diameter	≥ 2	≥ 2	≥ 2
	Length	≤50	≤50	≤50
Piezo ceramic Plates	Length	≤ 50	≤ 50	≤ 50
	Width	≥ 1	≥ 1	≥ 1
	Thickness	0.3-10	0.25-15	0.3-8

Applications of Piezoelectric Ceramics

ultrasonic flow meters	hydrophones	accelerometers
piezo transducer vibration	atomizer transducer	matter dispersion
impact-type gas ignitors	precise movement control	pressure sensors
accelerometers	impact-type gas ignitors	precise movement control
microphones	musical pick-ups	diagnostic medical ultrasound
sound making	level sensors	ultrasonic atomizers
sonar transducer	ultrasonic micro-bonding apparatus	wall thickness sensor
underwater echo sounders	high frequency transducers	high stress pressure ensors
squeeze-type gas	ignitors high power actuators	vibratory motors
transformers	ultrasonic welding	ultrasonic surgery
material stress sensor	piezo electricity harvesting	biomedical probe
piezo electricity harvesting	fish finder transducer	compression sensor
piezo expansion sensor	beauty transducer	Ultrasonic mixing
calculators,	telephones	car alarm sensor
embryo monitor	heart reflectoscope reflector	pedometer
ultrasonic medical	ultrasonic cleaning	sonochemistry

Our Service:

Package :at first ,we all use dual-layer foam to wrap the piezo ceramics duo to its frangibility,then we use suitable the box to put it inside and stick tightly to make sure it perfectly.

Delivery Time:standard product will be shipped out within 2 working days after payment received.

Payment Methods:T/T,Paypal,West Union

Warranty:100% brand new when leaving the factory. The seller guarantee quality of the products(excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.

tube piezoelectric ceramic tubular piezoelectric transducer piezoelectric tubes transducer piezoceramic tube cost piezoelectric tubes piezoelectric transducer tangential tube piezoelectric tube tangential tube piezo tube tangential tube piezoelectric transducer piezo tube cost piezo tube cost piezoelectric transducer
