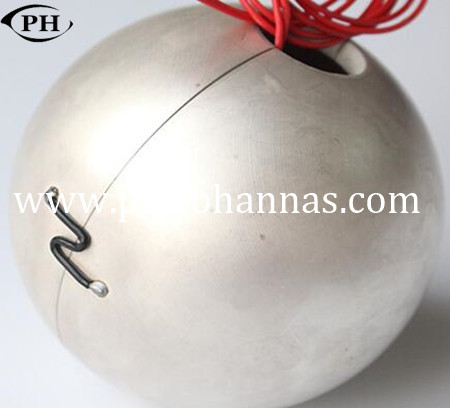

steady high precision piezo spheres for underwater device

Size : diameter is 5 mm, open caliber is 1.5 mm,wall thickness is 0.5 mm
Application:
underwater device
sonar

Quantity:
  • PB1000K002
  • Piezohannas
  • PB1000K002


Diameter : 5mm

Open caliber :1.5 mm

Wall thickness : 0.5 mm


Electrical Characteristics:






Spherical spec



External dimensionmm

Technological parameters

diameter

open caliber



 Wall  tthickness

fkHz



Kr



P-33



P-52



P-81



SΦ5

SΦ5

Φ1.5

0.5

320

0.4

1.8

3.5


SΦ10

SΦ10

Φ3

0.8

160

0.4

4.7

8.8


SΦ15

SΦ15

Φ4

1

113

0.4

9.2

17.3


SΦ20

SΦ20

Φ5

1~1.5

77

0.4

17

32.0


SΦ25

SΦ25

Φ5

1~1.5

61

0.4

17.4

32.8


SΦ30

SΦ30

Φ6

1.5~3

50

0.4

23.5

44.3


SΦ40

SΦ40

Φ7

2~4

38

0.4

34.3

64.6


SΦ50

SΦ50

Φ8

2~4

30

0.4

54.8

103.2


SR12.5

SR12.5

Φ3.5

2~5

83


6.2


3.7

SR25

SR25

Φ8

2~5



26.2


15.6

SR37.5

SR37.5

Φ10

2~5





17.7

SR50

SR50

Φ12

3~6





25.5


Warm Tips: We can customize various piezoelectric ceramics as required.
