PR1000K0106
Piezohannas
PR1000K0106

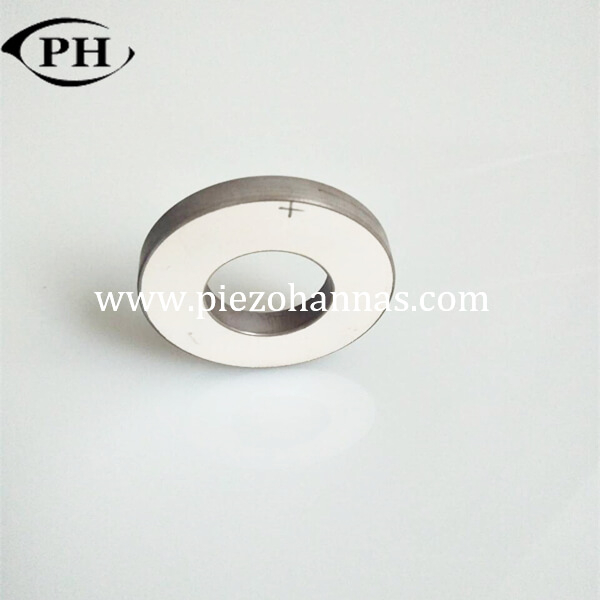

Pzt 8 Directional Ultrasonic Polarized Piezo Ring Transducers
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
![Z]25$29GF%RZ%N8344PX[_S](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ilBqnKjlRilSkrnrpiin/ZGF-RZ-N83.png)
Piezo Ceramics Ring Description:
- Piezo Material: PZT-4
- Dimensions: Φ50 × Φ16× 6mm
- Resonant Frequency: 35.5± 10%KHZ
- Resonance Impedance: ≤ 200Ω
- Static Capacitance: 2670 ± 10%PF
- Electrode: Silver
- Vibration mode: Thickness mode
- Applications: Ultrasonic welder
Applications: widely used in igniter,Piezo expansion sensor,vibration generation,compression sensor,ultrasonic welding,ultrasonic dental.ultrasonic motor,bolt-clamped ultrasonic transducer,biodiesel mixing transducer,Tonpilz Transducer,ultrasonic transformer,piezo ring atomizer and others.
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
PZT Material:
- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.
- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.
- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.
