PT1000K054
Piezohannas
PT1000K054

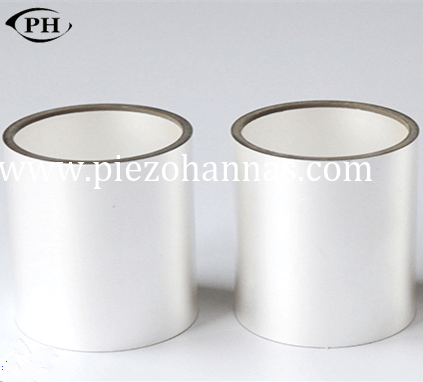

1.Product Description
Dimension:
Outer Dimension: 51mm
Inter Dimension: 45mm
Height: 38mm
Mainly used for assembling large ultrasonic transducer array or adhesive in various kind of curved beam to measure the impact
and vibration.It also can be used to assemble various kind of vibration pickup and acoustic pick up.Sometimes,the cross section
with a certain angle trapezoid used to assemble high-power and lower frequency of mosaic pipe which is used in active sonar
equipment.
Application: used for the ocean project,sonar, hydrophone , underwater comunications device,
displacement of mirror for laser optics by several micrometers and others.
The range of piezo tube:
Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm
Specification of Tube Piezoelectric Ceramic (1)
Dimension （OD ×ID ×H）mm | Radial frequency(KHz) | Dielectric loss(%) | K31(%)
| Capacitance(pF) |
Φ15×Φ11×10 | 70±5% | 2
| 30 | 4680±10% |
Φ20×Φ16×15 | 50±5% | 2
| 30 | 9700±10% |
Φ25×Φ21×15 | 39±5% | 2 | 35
| 12400±10% |
Φ29×Φ25×20 | 34±5% | 2 | 35 | 19400±10% |
Φ30×Φ25×18 | 33±5% | 2 | 35 | 14250±10% |
Φ32×Φ28×20 | 36±5% | 2 | 35 | 21600±10% |
Φ34×Φ30×20 | 28±5% | 2 | 35 | 23000±10% |
Φ38×Φ32×25 | 26±5% | 2 | 35 | 21000±10% |
Φ40×Φ32×37 | 25±5% | 2 | 35 | 24000±10% |
Φ45×Φ39×25 | 22±5% | 2 | 35 | 25200±10% |
Φ50×Φ44×25 | 19±5% | 2 | 35 | 28200±10% |
Φ55×Φ39×30 | 19±5% | 2 | 35 | 33800±10% |
Φ60×Φ54×30 | 16±5% | 2 | 35 | 41000±10% |
Φ65×Φ59×30 | 15±5% | 2 | 35 | 44600±10% |
Φ75×Φ67×16 | 13±5% | 2 | 35 | 20400±10% |
Φ80×Φ74×20 | 12±5% | 2 | 35 | 36900±10% |
Φ90×Φ84×20 | 10±5% | 2 | 35 | 52180±10% |
Specification of Tube Piezoelectric Ceramic (2)
Size (mm) | fm | fn | Capacitance(pf) | tgδ | d33 | ||
OD | ID | Height | |||||
18 | 15 | 20 | 51.2 | 52.0 | 13388 | 1.7 | 420 |
20 | 17 | 15 | 47.8 | 49.4 | 14056 | 1.5 | 420 |
24 | 20 | 20 | 47.1 | 48.8 | 12830 | 2.0 | 420 |
34 | 30 | 20 | 29.5 | 31.3 | 1510 | 0.2 | 280 |
40 | 32.5 | 37 | 24.4 | 25.1 | 21200 | 1.5 | 280 |
44 | 38 | 29 | 22.1 | 23.4 | 23120 | 1.5 | 280 |
51 | 45 | 36 | 19.1 | 20.5 | 18010 | 1.5 | 420 |
51 | 45 | 38 | 22.8 | 23.8 | 9901 | 0.2 | 420 |
53 | 45 | 41 | 17.8 | 22.0 | 3060 | 0.2 | 420 |
69 | 63 | 25 | 16.0 | 18.1 | 16040 | 0.5 | 280 |
76.5 | 68 | 40 | 14.6 | 15.2 | 19730 | 0.5 | 280 |
80 | 60 | 150 | 17.2 | 18.3 | 34420 | 0.21 | 280 |
142 | 132 | 80 | 7.6 | 8.0 | 8635 | 0.36 | 300 |
12 | 9 | 6 | 70 | 72 | 5860 | 0.3 | |
15 | 13 | 3.2 | 64 | 68a | 3700 | 1.7 | |
18 | 15 | 15 | 63 | 64 | 5940 | 0.2 | |
18 | 15 | 20 | 63 | 64 | 5836 | 0.2 | |
20*17*15 | 17 | 15 | 46.9 | 50 | 14109 | 1.5 | |
Size (mm) | Radial frequency | Coupling Coefficient | Static Capacitance | Piezoelectric Strain Constant | Dielectric Loss | ||
ID | OD | Height | |||||
15 | 11 | 10 | 70±5% | 30 | 4680±10% | 500 | 2 |
20 | 16 | 15 | 50±5% | 30 | 9700±10% | 500 | 2 |
25 | 21 | 15 | 39±5% | 35 | 12400±10% | 500 | 2 |
29 | 25 | 20 | 34±5% | 35 | 19400±10% | 550 | 2 |
30 | 25 | 18 | 33±5% | 35 | 14250±10% | 550 | 2 |
32 | 28 | 20 | 36±5% | 35 | 21600±10% | 550 | 2 |
34 | 30 | 20 | 28±5% | 35 | 23000±10% | 550 | 2 |
38 | 32 | 25 | 26±5% | 35 | 21000±10% | 550 | 2 |
40 | 32 | 37 | 25±5% | 35 | 24000±10% | 550 | 2 |
45 | 39 | 25 | 22±5% | 35 | 25200±10% | 550 | 2 |
50 | 44 | 25 | 19±5% | 35 | 28200±10% | 550 | 2 |
55 | 39 | 30 | 19±5% | 35 | 33800±10% | 550 | 2 |
60 | 54 | 30 | 16±5% | 35 | 41000±10% | 550 | 2 |
65 | 59 | 30 | 15±5% | 35 | 44600±10% | 550 | 2 |
75 | 67 | 16 | 13±5% | 35 | 20400±10% | 550 | 2 |
80 | 74 | 20 | 12±5% | 35 | 36900±10% | 550 | 2 |
90 | 84 | 20 | 10±5% | 35 | 52180±10% | 550 | 2 |
3.PZT Material
We usually provide P-41,P-42,P-43,P-51,P-52,P-53,P-81,P-82,P-83,PSnN-5,
PMgN-51,PZT-5H,PZT-5X,PCrN-4,PliS-51,PbaS-4,PbaS-5,BaTio3..
PZT materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,
pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers
and actuators they convert electric voltages into vibrations or deformations.Piezoelectric materials
are classified according to their chemical composition on the one hand, and by the specific
application conditions on the other.
PZT ceramic is used in a wide variety of applications. Soft (sensor) PZT ceramic powders are typically used
when high coupling and/or high charge sensitivity are important, such as in flow or level sensors;
ultrasonic nondestructive testing/evaluation (NDT/NDE) applications; or for accurate inspections of automotive,
structural or aerospace products. Material characteristics include a high dielectric constant; high coupling;
high charge sensitivity; high density with a fine grain structure; a high Curie point; and a clean, noise-free
frequency response.
Hard (high power) PZT ceramic powders are used when high power characteristics are required,
including applications such as the generation of ultrasonic or high-voltage energy in ultrasonic cleaners,
sonar devices, etc. Important powder characteristics include a high piezoelectric charge constant (d33); a
higher mechanical quality factor that reduces mechanical loss and enables a lower operating temperature; a
low dissipation factor that ensures cooler, more economical operation; high dielectric stability; and low
mechanical loss under demanding conditions.
4.Applications of Piezoelectric Ceramics
ultrasonic flow meters | hydrophones | accelerometers |
piezo transducer vibration | atomizer transducer | matter dispersion |
impact-type gas ignitors | precise movement control | pressure sensors |
accelerometers | impact-type gas ignitors | precise movement control |
microphones | musical pick-ups | diagnostic medical ultrasound |
sound making | level sensors | ultrasonic atomizers |
sonar transducer | ultrasonic micro-bonding apparatus | wall thickness sensor |
underwater echo sounders | high frequency transducers | high stress pressure ensors |
squeeze-type gas | ignitors high power actuators | vibratory motors |
transformers | ultrasonic welding | ultrasonic surgery |
material stress sensor | piezo electricity harvesting | biomedical probe |
piezo electricity harvesting | fish finder transducer | compression sensor |
piezo expansion sensor | beauty transducer | Ultrasonic mixing |
calculators, | telephones | car alarm sensor |
embryo monitor | heart reflectoscope reflector | pedometer |
ultrasonic medical | ultrasonic cleaning | sonochemistry |
5. Features
1.High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
2.High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
3. Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
4. Good construction: fastened by bolt, easy for assembling, high reliability.
5. The life of more than 5000 hours
6.High electromechanical conversion efficiency
6.Our service
Package :at first ,we all use dual-layer foam to wrap the piezo ceramics duo to its frangibility,then we use suitable the box to put it inside and stick tightly to make sure it perfectly.
Delivery Time:standard product will be shipped out within 2 working days after payment received.
Payment Methods: T/T,Paypal,West Union
Warranty:100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.
