PS1000K094
Piezohannas
PS1000K094

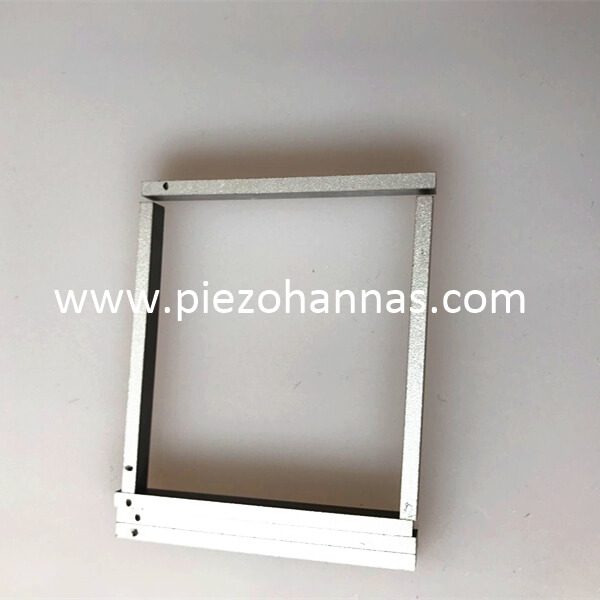

Piezoelectric Ceramic Plate Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 piezoelectric plate transducer |  PZT rectangular transducer |  rectangular piezo transducer |
Dimensions:40 × 20 × 0.5 mm
Resonant frequency fr: 3600 ± 10%KHZ
Electromechanical coupling coefficient Kp:≥44%
Resonant impedance Zm: ≤ 200Ω
Static capacitance Cs: 62000 ± 20%PF
Application: High Frequency Wave Filter, Resonator, Frequency Discriminator, Ultrasonic Sensor, Vibration Sensor, Material stress sensor, Pressure sensor, Vibration generation, Energy/Electricity harvesting, compression sensor and others...
The range of Piezoceramic Rectangle / Square:
Length: 3mm-176mm
Width: 1mm-120mm
Height: 0.1mm-30mm
Dimension （L×W×H）mm | Resonant Frequency(KHz) | K31(%)
| Capacitance(pF) |
90*14*0.39 | 17±5%
| 37±6%
| 98±12.5%
|
90*11*0.35 | 17±5%
| 37±6% | 81±12.5%
|
105*14*0.37 | 13.6 | 37.0 | 81 |
66.5*14*0.49 | 21.5 | 37.2 | 55 |
63.5*14.3*0.42 | 22.5 | 32.9 | 49 |
90*9*0.18 | 15.9 | 38.0 | 135 |
70*14.5*0.32 | 20.4 | 36.7 | 89 |
65*14.5*0.4 | 22.0 | 35.6 | 62 |
130*15.8*0.53 | 11.0 | 37.0 | 154 |
45*9*0.2 | 31.1 | 30.2 | 63 |
12*12*1 | 17.1 | 65.0 | 2.3 |
13*13*0.56 | 15.4 | 60.0 | 1.68 |
25*10*0.7 | 56.0 | 60.0 | 5 |
30*30*1 | 66.7 | 60.0 | 10 |
25*4*0.5 | 58 | # | 5800 |
40*4*0.5 | 38 | # | 7900 |
25*4*0.5 | 58 | # | 4800 |
40*4*0.5 | 38 | # | 6500 |
25*4*0.5 | 58 | # | 3100 |
40*4*0.5 | 38 | # | 5500 |
Size (Length*Width*Height) (MM) | Piezoelectric Strain Constant d33(10-12C/N) | Capacitance CT(nF) | Relative Dielectric Constant εTr3 | Resonant Frequency Fs (kHz) | Coupling Coefficient K31(%) |
105*14*0.37 | 420 | 81 | 2300 | 13.6 | 37.0 |
66.5*14*0.49 | 550 | 55 | 3400 | 21.5 | 37.2 |
63.5*14.3*0.42 | 550 | 49 | 3400 | 22.5 | 32.9 |
90*9*0.18 | 550 | 135 | 3400 | 15.9 | 38.0 |
70*14.5*0.32 | 550 | 89 | 3400 | 20.4 | 36.7 |
65*14.5*0.4 | 550 | 62 | 3400 | 22.0 | 35.6 |
130*15.8*0.53 | 600 | 154 | 3400 | 11.0 | 37.0 |
45*9*0.2 | 620 | 63 | 5300 | 31.1 | 30.2 |
12*12*1 | 420 | 2.3 | 2300 | 17.1 | 65.0(kp) |
13*13*0.56 | 280 | 1.68 | 800 | 15.4 | 60.0(kp) |
25*10*0.7 | 420 | 5 | 1600 | 56.0 | 60.0(kp) |
30*30*1 | 420 | 10 | 1600 | 66.7 | 60.0(kp) |
Dimension(mm) Length*Width*Thickness | Frequency | Capacitance | Dielectric loss | Piezoelectric voltage coefficient | Courier Temperature |
25×4×0.5 | 58 | 5800 | ≤2.0 | 550× | 180 |
40×4×0.5 | 38 | 7900 | ≤2.0 | 550× | 180 |
25×4×0.5 | 58 | 4800 | ≤2.0 | 400× | 260 |
40×4×0.5 | 38 | 6500 | ≤2.0 | 400× | 260 |
25×4×0.5 | 58 | 3100 | ≤2.0 | 280× | 350 |
40×4×0.5 | 38 | 5500 | ≤2.0 | 280× | 350 |
PZT Material:
- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.
- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.
- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.
Piezo ceramic Discs | Diameter | PZT-4 | PZT-5 | PZT-8 |
3-100 | 3-100 | 3-100 | ||
Thickness | 0.3-10 | 0.25-15 | 0.4-8 | |
Piezo ceramic Rings | Outside diameter | 3-100 | 3-100 | 3-100 |
Inside diameter | ≥ 2 | ≥ 2 | ≥ 2 | |
Thickness | 0.3-10 | 0.25-15 | 0.4-8 | |
Piezo ceramic Tubes | Outside diameter | 3-108 | 3-108 | 3-105 |
Inside diameter | ≥ 2 | ≥ 2 | ≥ 2 | |
Length | ≤50 | ≤50 | ≤50 | |
Piezo ceramic Plates | Length | ≤ 50 | ≤ 50 | ≤ 50 |
Width | ≥ 1 | ≥ 1 | ≥ 1 | |
Thickness | 0.3-10 | 0.25-15 | 0.3-8 |
Applications of Piezoelectric Ceramics
ultrasonic flow meters | hydrophones | accelerometers |
piezo transducer vibration | atomizer transducer | matter dispersion |
impact-type gas ignitors | precise movement control | pressure sensors |
accelerometers | impact-type gas ignitors | precise movement control |
microphones | musical pick-ups | diagnostic medical ultrasound |
sound making | level sensors | ultrasonic atomizers |
sonar transducer | ultrasonic micro-bonding apparatus | wall thickness sensor |
underwater echo sounders | high frequency transducers | high stress pressure ensors |
squeeze-type gas | ignitors high power actuators | vibratory motors |
transformers | ultrasonic welding | ultrasonic surgery |
material stress sensor | piezo electricity harvesting | biomedical probe |
piezo electricity harvesting | fish finder transducer | compression sensor |
piezo expansion sensor | beauty transducer | Ultrasonic mixing |
calculators, | telephones | car alarm sensor |
embryo monitor | heart reflectoscope reflector | pedometer |
ultrasonic medical | ultrasonic cleaning | sonochemistry |
Our Service:
Package :at first ,we all use dual-layer foam to wrap the piezo ceramics duo to its frangibility,then we use suitable the box to put it inside and stick tightly to make sure it perfectly.
Delivery Time:standard product will be shipped out within 2 working days after payment received.
Payment Methods:T/T,Paypal,West Union
Warranty:100% brand new when leaving the factory. The seller guarantee quality of the products(excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.
