Piezohannas
PS1000K063

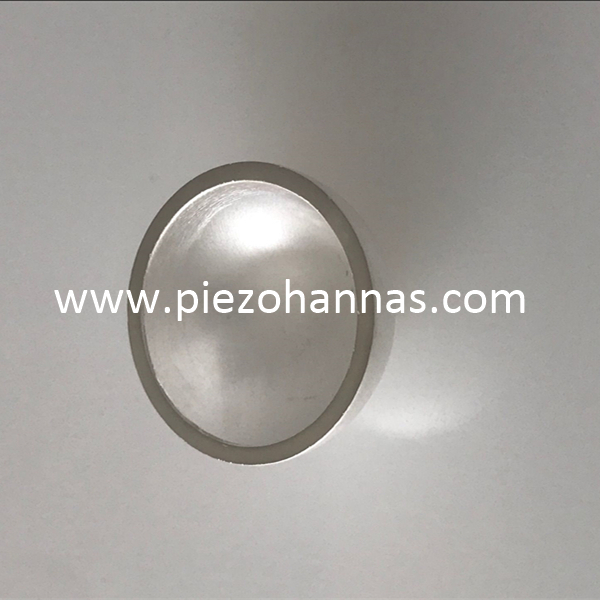

High Sensitivity Piezoelectric Ceramic Bowls Piezo Hemisphere for Underwater Acoustic
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Piezo Ceramic Sphere Description:
Diameter : 63 mm
Wall thickness :2 mm
Frequency: 1 MHz
Underwater Accoustic Application:
Acoustic underwater communication systems are the key component if real time data collection from seafloor or mooring sensor platforms is required.The measurement machine of an underwater ultrasonic wave(sonar) is known for the purpose of navigation. The ultrasonic wave pulse is radiated in the sea, and the reflection wave from a target object is detected, and this is presence, measures the distance distinguishes the direction, and a kind of radar of the object. Piezocermic applied for underwater acoustic transducers contain both transmitters and receivers and use distance and directional data for communication, marine research ,undersea mapping and navigation.
Designs Shape: Hemisphere, Bowl, Segment, Tube, Block
Cutstomer Design:Other type and shapes (Hemisphere, Bowl, Ball) piezoceramic parts could be OEM as customer’s design and application request.
Diameter: 5 - 40mm
Wall thickness: 0.5 - 3mm
Caliber: 5 - 8mm
Maximum radius: approx. 50 mm
Material | Diameter (mm) | Wall Thickness (mm) | Resonant Frequency (kHz) | Static Capacitance (pf) | Resonant Impedance (ohm) |
PZT-4D | 152.5+/-0.4 | 5.0+/-0.15 | 14.5+/-3% | 87000+/-10% | <=10 |
PZT-4D | 102+/-0.2 | 3.5+/-0.1 | 22+/-3% | 44000+/-10% | <=10 |
PZT-4D | 62.5+/-0.2 | 3.0+/-0.1 | 35.5+/-3% | 22000+/-10% | 1-5 |
PZT-4D | 25.4+/0.15 | 1.0+/-0.1 | 98+/-3% | 3000+/-10% | <=10 |
PZT-4D | 12.7+/-0.15 | 1.5+/-0.1 | 188+/-3% | 1500+/-10% | <=15 |
PZT-4D | 6.35+/-0.10 | 0.7+/-0.1 | 390+/-3% | 550+/-10% | <=10 |
PZT -5A | 25.4+/-0.15 | 3.2+/-0.1 | 105+/-3% | 2700+/-10% | <=10 |
PZT-5A | 12.7+/-0.15 | 1.25+/-0.1 | 102+/-3% | 2800+/-10% | <=10 |
