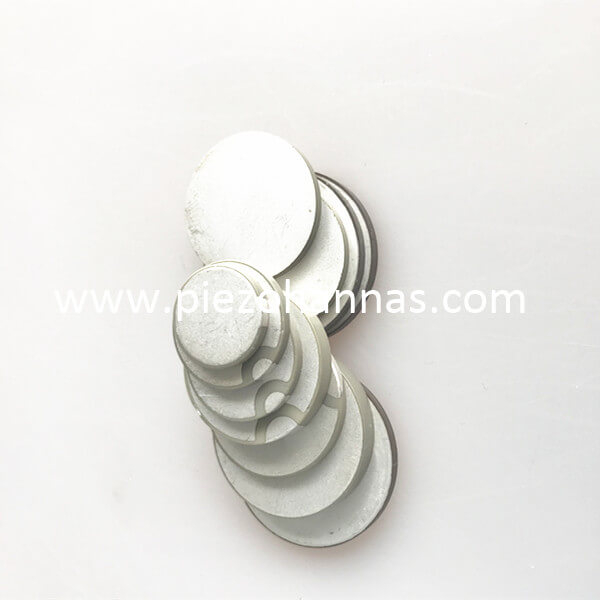

Piezoelectric Ceramic Disc Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 piezo electric disc |  piezo ceramic cylinder |
piezoelectric ceramic disc transducer |
Piezo Ceramics Disc Description:
Vibration mode: Radial mode
range of piezo disc to produce:
Diameter: 2mm-120mm
Thickness:0.1mm-30mm
Size(diameter*thickness) | Resonant frequency | coupling coefficient Kr | Resonant impedance Zm | Static capacitance Cs |
2.5 mmx 5mm | 40KHz | 12pF ± 10% | ||
3mm X 0.4mm | 675 KHz±5 % | 70%±3% | 37Ω | 430pF±15% |
5mm X 0.2mm | 445K±5KHz | 70%±3% | ≤8.6 Ω | 1450pF±5% |
5mm X 0.4mm | 450 KHz±10 KHz | 1050pF±15% | ||
5mm x 10mm | 51.9KHz | 17.38 pF± 10% | ||
6.35mmX0.7mm | 3 MHz±5 % | |||
6.35 mm x 16mm | 35.5KHz | 30.9pF ± 10% | ||
7mmx 0.2mm | 300 KHz±10 KHz | ≥55% | ≤10.0 Ω | 3000pF±15% |
7mm x 0.3mm | 300 KHz±10 KHz | ≥55% | ≤20 Ω | 1600pF±15% |
7mm x 0.5mm | 300 KHz±10 KHz | 55% | ≤20 Ω | 1400pF±15% |
8mm x 1mm | 2.0±5% | ≥43 | 0.65 | 530±10% |
8mm x 2mm | 1.0 ±5% | ≥43 | 0.65 | 265±10% |
9mm x 0.5mm | 4.25 MHz ± 4% | ≤1.4 Ω | 1400pF±20% | |
10mm x 0.2mm | 212 KHz ± 3% | ≥58% | 6000pF±20% | |
10mmx 0.4mm | 5MHz ± 5% | ≥48% | ≤0.5 Ω | 2100pF±15% |
10mm x 0.1mm | 20 MHz ± 2% | 10.5nF ± 15% | ||
10mm x1mm | 199KHz±5% | ≥73% | ≤19 Ω | 1400pF±20% |
10mm x 2mm | 1 MHz±5% | ≥38% | ≤15 Ω | 450pF±15% |
10mm x 2mm | 215 KHz±5 KHz | ≥60% | ≤6 Ω | 450pF±15% |
10mm x 3mm | 215 KHz±5 KHz | ≥60% | ≤9 Ω | 310pF±15% |
12mm x 0.6mm | 3.4MHz±5% | ≤6 Ω | 2.5nF ±30% | |
15mm x 0.2mm | 140KHz ± 3% | ≥58% | ≤4.0 Ω | 13500pF±20% |
15mm x 0.7mm | 3MHz ±50 KHz | ≥58% | ≤6 Ω | 5700pF±15% |
15mm x 0.9mm | 2.2 MHz±50 KHz | ≥75% | ≤11 Ω | 3481pF±15% |
15mmx1.2mm | 1.7 MHz ± 4% | ≥48% | ≤5.3 Ω | 2418pF±10% |
15mm x 2.1mm | 1 MHz±3 % | ≥39% | ≤7.6 Ω | 900pF±15% |
16mmx 0.25mm | 7 MHz±5% | |||
16mmx 0.4mm | 5.0±5% | ≥45 | ≤5Ω | 5400±15% |
16mmx1mm | 2.0 ±5% | ≥45 | 0.65Ω | 2200±10% |
19mm x 0.3mm | 6.9 MHz±50 KHz | ≤1 Ω | 12000pF± 15% | |
19mm x 1mm | 2.07MHz±50 KHz | ≥39% | ≤2 Ω | 4000pF ± 15% |
19mm x 2mm | 1.04 MHz±50 | ≤3 Ω | 1800pF ± 15% | |
20mmx 0.2mm | 106KHz ± 3% | ≥58% | ≤3.0 Ω | 23500pF±20% |
20mm x 0.4mm | 5 MHz±100 KHz | ≤0.48 Ω | 3800pF±20% | |
20mm x 0.7mm | 3MHz ±50 KHz | ≥58% | ≤6 Ω | 5700pF±15% |
20mm x 0.8mm | 2.5MH±100 KHz | |||
20mmx1mm | 2.05 MHz ± 3% | ≥51% | ≤0.31 Ω | 3543pF±10% |
20mm x 2.1mm | 1MHz ±50 KHz | ≥40% | ≤4 Ω | 2000pF±15% |
20mm x 2.7mm | 745 KHz±5 KHz | ≥51% | ≤2.7 Ω | 1300pF±5% |
20mmx3mm | 690 KHz ± 3% | ≥45% | ≤3.6 Ω | 1265pF±10% |
20mmx8mm | 255 KHz ± 1% | ≥37% | ≤10.4 Ω | 483pF±10% |
22mmX 0.25mm | 92KHz±5% | 65% | 1.80 Ω | 65nF ±10% |
25mmx 0.2mm | 85KHz ± 3% | ≥64.90% | ≤1.90 Ω | 35nF±20% |
25mm x 0.7mm | 3 MHz±100 KHz | ≥40% | ≤1 Ω | 8600pF±20% |
25mm x 1.4mm | 1.5MHz ± 5% | ≥40% | ≤1.5 Ω | 1900pF±15% |
25mm x 2.1mm | 1MHz ±50 KHz | ≥58% | ≤4 Ω | 2800pF±15% |
25mm x 8.5mm | 235 KHz±2% | ≥58% | ≤45 Ω | 645pF±14% |
28mmx 0.7mm | 3MHz±100 KHz | ≥40% | ≤1 Ω | 11200pF±15% |
28mm x 2.1mm | 1 MHz±50 KHz | ≤8 Ω | 3800pF±20% | |
30mm x 1mm | 72 KHz±5% | 34% | ≤5.2 Ω | 11 nF±20% |
30mm x2.1mm | 1 MHz±50 KHz | ≥45 | ≤1 Ω | 4400pF±15% |
30mm×3.0mm | 66.7 | ≥45 | ≤3Ω | 2730±12.5% |
30mm x 4.2mm | 500 KHz±5 KHz | ≥44% | ≤1.9 Ω | 2900pF±15% |
30mm×5.5mm | 75KHz | 58 | 1300pF | |
30mm×6.2mm | 75KHz | 58 | 1200pF | |
31.5mmX4.2mm | 500 KHz±10KHz | 48.50 | ≤7.6 Ω | 3800pF±20% |
32mm×5mm | 70KHz | 58 | 1700pF | |
35mm X 12mm | 190 KHz±5KHz | ≤27.7 Ω | 830pF±20% | |
35mm x 3mm | 63KHz | ≥45 | ≤3Ω | 3100±12.5% |
35mm x 4mm | 55.6 KHz±5% | 76% | ≤15.7 Ω | 7069 pF±20% |
35mm×6.2mm | 63KHz | 58 | 1600pF | |
38mm x 4.1mm | 500 KHz±5 KHz | ≥44% | ≤1.9 Ω | 2900pF±15% |
38mmx6.5mm | 59.9 | ≥45 | ≤3Ω | 1580±12.5% |
40mmx 2mm | 1±5% | ≥45 | 0.65 | 7200pF±10 |
40mm×6.2mm | 55 | 58 | 2200 | |
43mmx 10.5mm | 200KH±10 KHz | ≥40% | ≤10 Ω | 1700pF±15% |
45mmx3.0mm | 50.0 | ≥45 | ≤3Ω | 5100±12.5% |
50mmX 0.4mm | 41 KHz±1 KHz | 71%±3% | 1.3Ω | 108nF±15% |
50mm X 2.1mm | 1.00 MHz ±50 | ≥60% | ≤8 Ω | 10000pF±20% |
50mm x 2.5mm | 44 KHz±3 KHz | ≥60% | ≤10 Ω | 7400pF±15% |
50mm x 3mm | 44 KHz±3 KHz | ≥60% | ≤8 Ω | 7200pF±15% |
50mmx5.0mm | 46.0 | ≥45 | ≤3Ω | 4150pF±12.5% |
60mm x 5mm | 420 KHz±2% | ≥58% | ≤45 Ω | 5100pF±14% |
60mm x 2mm | 1.0 | ≥45% | ≤3Ω | 14500±15% |
7mmx 0.4mm | 5MHz ± 5% | ≥48% | ≤0.5 Ω | 2100pF±15% |
85mmx 6mm | 350 KHz ±2 % | ≥48.81% | ≤0.49 Ω | 10.30nF±15% |
PZT Material:
- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.
- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.
- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.
Piezo ceramic Discs | Diameter | PZT-4 | PZT-5 | PZT-8 |
3-100 | 3-100 | 3-100 | ||
Thickness | 0.3-10 | 0.25-15 | 0.4-8 | |
Piezo ceramic Rings | Outside diameter | 3-100 | 3-100 | 3-100 |
Inside diameter | ≥ 2 | ≥ 2 | ≥ 2 | |
Thickness | 0.3-10 | 0.25-15 | 0.4-8 | |
Piezo ceramic Tubes | Outside diameter | 3-108 | 3-108 | 3-105 |
Inside diameter | ≥ 2 | ≥ 2 | ≥ 2 | |
Length | ≤50 | ≤50 | ≤50 | |
Piezo ceramic Plates | Length | ≤ 50 | ≤ 50 | ≤ 50 |
Width | ≥ 1 | ≥ 1 | ≥ 1 | |
Thickness | 0.3-10 | 0.25-15 | 0.3-8 |
