PS1000K063
Piezohannas
PS1000K063

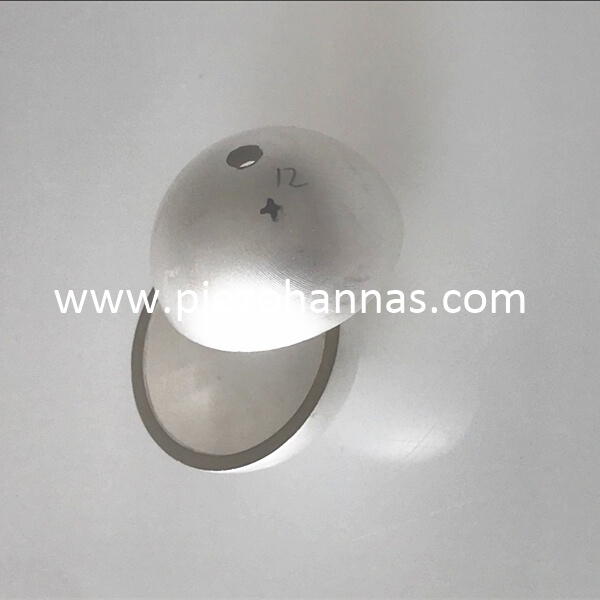

Good Stability Piezoelectric Ceramic Shpere for Underwater Ultrasonic Wave
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Piezo Ceramic Sphere Description:
Diameter : 63 mm
Wall thickness :2 mm
Frequency: 1 MHz
Application of Spherical / Hemispherical Piezoelectric Ceramic:
used in the field of Comprehensive acoustic,All round underwater transducer，High sensitive ultrasonic surveying，sonar transducer,ocean project,hydrophone, underwater device and others.
Diameter: 5 - 40mm
Wall thickness: 0.5 - 3mm
Caliber: 5 - 8mm
Maximum radius: approx. 50 mm
Material | Diameter (mm) | Wall Thickness (mm) | Resonant Frequency (kHz) | Static Capacitance (pf) | Resonant Impedance (ohm) |
PZT-4D | 152.5+/-0.4 | 5.0+/-0.15 | 14.5+/-3% | 87000+/-10% | <=10 |
PZT-4D | 102+/-0.2 | 3.5+/-0.1 | 22+/-3% | 44000+/-10% | <=10 |
PZT-4D | 62.5+/-0.2 | 3.0+/-0.1 | 35.5+/-3% | 22000+/-10% | 1-5 |
PZT-4D | 25.4+/0.15 | 1.0+/-0.1 | 98+/-3% | 3000+/-10% | <=10 |
PZT-4D | 12.7+/-0.15 | 1.5+/-0.1 | 188+/-3% | 1500+/-10% | <=15 |
PZT-4D | 6.35+/-0.10 | 0.7+/-0.1 | 390+/-3% | 550+/-10% | <=10 |
PZT -5A | 25.4+/-0.15 | 3.2+/-0.1 | 105+/-3% | 2700+/-10% | <=10 |
PZT-5A | 12.7+/-0.15 | 1.25+/-0.1 | 102+/-3% | 2800+/-10% | <=10 |
Cutstomer Design:
Other type and shapes (Hemisphere, Bowl, Ball) piezoceramic parts could be OEM as customer's design and application request.
