PR1000K066
Piezohannas
PR1000K066
1.Product Description
Dimension : OD60mm xID30mm x Thi10mm
Electrical Characteristics:
Capacitance (pF) | 1922 |
Thick Frequency Ft(KHz) | 410 |
Radial Frequency (KHz ) | 25.3 |
Resonance Impedance | ≤15 |
Piezo ceramic ring plate :widely used in igniter,ultrasonic cleaner,ultrasonic welding,ultrasonic distance measure sensor,
ultrasonic detector,ultrasonic dental.Ultrasonic Beauty.ultrasonic motor,ultrasonic transformer and
other high-power emanant transducers .

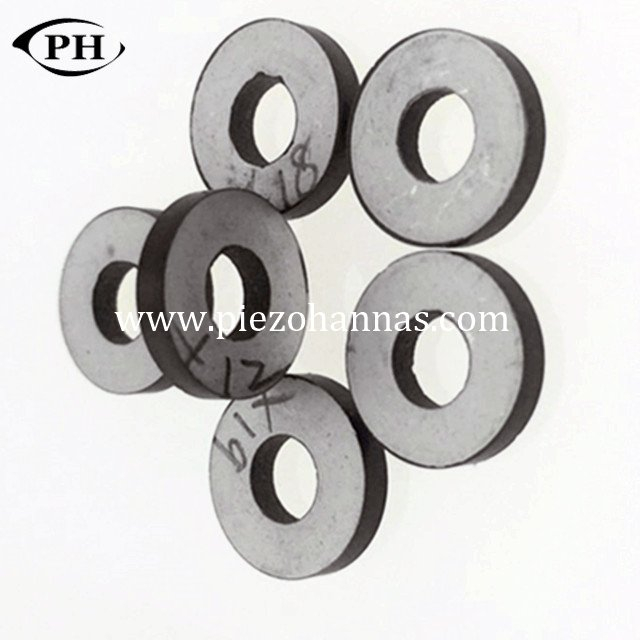

Piezo ceramic ring plate:
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
Dimension(mm) | Capacity C(pF) | Weak Field Dissipation Tgδ(12v) | Strong Fied Dissipation Tgδ(400v) | Radial Frequency Fr(KHz) | ResonanceImpedance | Thick Frequency Ft(KHz) | Coupling Modulus Kr(%) | |
Φ10ｘΦ5ｘ2 | 240±10% | ≤0.5% | ≤1.0% | 153±5% | ≤15 | 1020 | ≥45 | |
Φ16ｘΦ8ｘ4 | 340±10% | ≤0.5% | ≤1.0% | 95.8±5% | ≤20 | 512 | ≥45 | |
Φ25ｘΦ10ｘ4 | 935±10% | ≤0.5% | ≤1.0% | 65.5±5% | ≤15 | 512 | ≥45 | |
Φ30ｘΦ10ｘ5 | 1150±10% | ≤0.5% | ≤1.0% | 58.4±5% | ≤15 | 410 | ≥45 | |
Φ32ｘΦ15ｘ5 | 1080±10% | ≤0.5% | ≤1.0% | 49.2±5% | ≤15 | 410 | ≥45 | |
Φ35ｘΦ15ｘ5 | 1430±10% | ≤0.5% | ≤1.0% | 45.5±5% | ≤15 | 410 | ≥45 | |
Φ38ｘΦ15ｘ5 | 1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | |
Φ40×Φ12×5 | 2070±12.5% | ≤0.5% | ≤1.0% | 45.9 | ≤15 | ≥46 | ||
Φ40ｘΦ15ｘ5 | 1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | |
Φ40×Φ20×5 | 1700±12.5% | ≤0.3 | ≤1.0% | 37.9 | ≤15 | ≥45 | ||
Φ40×Φ17×6 | 1555±12.5% | ≤0.3 | ≤1.0% | 40.5 | ≤15 | ≥45 | ||
Φ42ｘΦ15ｘ5 | 2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | |
Φ42ｘΦ17ｘ5 | 2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | |
Φ45ｘΦ15ｘ5 | 2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | |
Φ50ｘΦ17ｘ5 | 3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | |
Φ50ｘΦ17ｘ6 | 2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | |
Φ50×Φ20×6 | 2490±12.5% | ≤0.3 | ≤1.0% | 33.2 | ≤15 | ≥45 | ||
Φ50×Φ27×6 | 2100±12.5% | ≤0.3 | ≤1.0% | 29.3 | ≤15 | ≥45 | ||
Φ60×Φ30×10 | 1922±12.5% | ≤0.3 | ≤1.0% | 25.3 | ≤15 | ≥45 | ||
3.PZT Material
We usually provide P-41,P-42,P-43,P-51,P-52,P-53,P-81,P-82,P-83,PSnN-5,
PMgN-51,PZT-5H,PZT-5X,PCrN-4,PliS-51,PbaS-4,PbaS-5,BaTio3..
PZT materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,
pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers
and actuators they convert electric voltages into vibrations or deformations.Piezoelectric materials
are classified according to their chemical composition on the one hand, and by the specific
application conditions on the other.
PZT ceramic is used in a wide variety of applications. Soft (sensor) PZT ceramic powders are typically used
when high coupling and/or high charge sensitivity are important, such as in flow or level sensors;
ultrasonic nondestructive testing/evaluation (NDT/NDE) applications; or for accurate inspections of automotive,
structural or aerospace products. Material characteristics include a high dielectric constant; high coupling;
high charge sensitivity; high density with a fine grain structure; a high Curie point; and a clean, noise-free
frequency response.
Hard (high power) PZT ceramic powders are used when high power characteristics are required,
including applications such as the generation of ultrasonic or high-voltage energy in ultrasonic cleaners,
sonar devices, etc. Important powder characteristics include a high piezoelectric charge constant (d33); a
higher mechanical quality factor that reduces mechanical loss and enables a lower operating temperature; a
low dissipation factor that ensures cooler, more economical operation; high dielectric stability; and low
mechanical loss under demanding conditions.
4.Applications of Piezoelectric Ceramics
ultrasonic flow meters | hydrophones | accelerometers |
piezo transducer vibration | atomizer transducer | matter dispersion |
impact-type gas ignitors | precise movement control | pressure sensors |
accelerometers | impact-type gas ignitors | precise movement control |
microphones | musical pick-ups | diagnostic medical ultrasound |
sound making | level sensors | ultrasonic atomizers |
sonar transducer | ultrasonic micro-bonding apparatus | wall thickness sensor |
underwater echo sounders | high frequency transducers | high stress pressure ensors |
squeeze-type gas | ignitors high power actuators | vibratory motors |
transformers | ultrasonic welding | ultrasonic surgery |
material stress sensor | piezo electricity harvesting | biomedical probe |
piezo electricity harvesting | fish finder transducer | compression sensor |
piezo expansion sensor | beauty transducer | Ultrasonic mixing |
calculators, | telephones | car alarm sensor |
embryo monitor | heart reflectoscope reflector | pedometer |
ultrasonic medical | ultrasonic cleaning | sonochemistry |
5. Features
1.High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
2.High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
3. Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
4. Good construction: fastened by bolt, easy for assembling, high reliability.
5. The life of more than 5000 hours
6.High electromechanical conversion efficiency
6.Our service
Package :at first ,we all use dual-layer foam to wrap the piezo ceramics duo to its frangibility,then we use suitable the box to put it inside and stick tightly to make sure it perfectly.
Delivery Time:standard product will be shipped out within 2 working days after payment received.
Payment Methods: T/T,Paypal,West Union
Warranty:100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.
7.Images
