PR1000K0151
Piezohannas
PR1000K0151

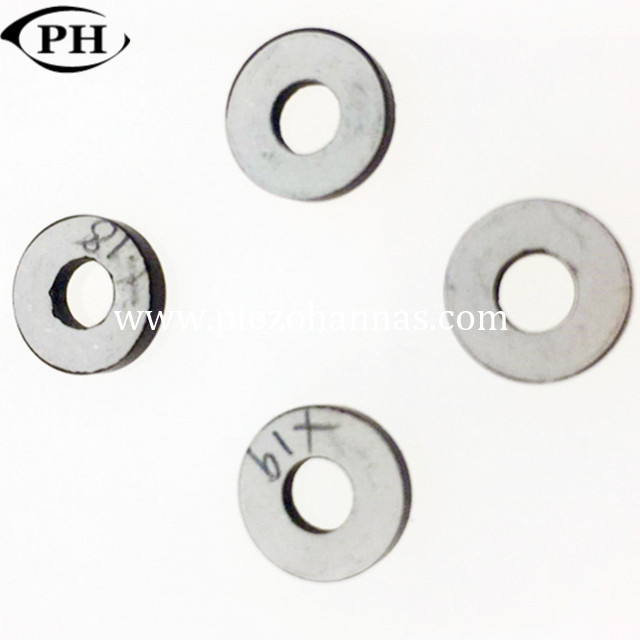

Stock Piezoceramic Ring for Motorcycle Speedometer Calibrator
1.Product Description
Piezo Material: P-43
Dimensions: OD12*ID8*7mm
Fs(Hz): 102896
Fp(Hz):110540
K31:0.365
C(pf):417
Application : Motorcycle Speedometer Calibrator,Motorcycle speedometer
Range Of piezo ceramic ring
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
Choice of metallisation (Silver, Nickel, Gold and others on request)
Wide choice of PZT formulations
3.Typical value of "Hard" PZT materials performance：
Hard" PZT materials | |||||||
Properties | PZT-41 | PZT-42 | PZT-43 | PZT-82 | PBaS-4 | ||
Dielectric Constant | ɛTr3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Coupling factor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
d33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
g31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
g33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequency coefficients | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanical quality factor | Qm | 1000 | 800 | 600 | 1200 | 2200 | |
Dielectric loss factor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie Temperature | Tc | °C | 320 | 320 | 320 | 310 | 310 |
Young's modulus | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Poison Ratio | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |
Applications of Motorcycle Speedometer Calibrator:
A SpeedoHealer is a calibrator that hooks up to a bike and, when properly programmed, will correct for this slight error, enabling a more realistic display of speed.By using a SpeedoHealer will help keep readings accurate even after performing changes on a bike. It helps with optimizing performance and allows riders to stay confident that they're operating within the correct speed limit while cruising down the open road.
4.Image OF Motorcycle Speedometer Calibrator:
