PZ1000K0094
Piezohannas
PZ1000K0094

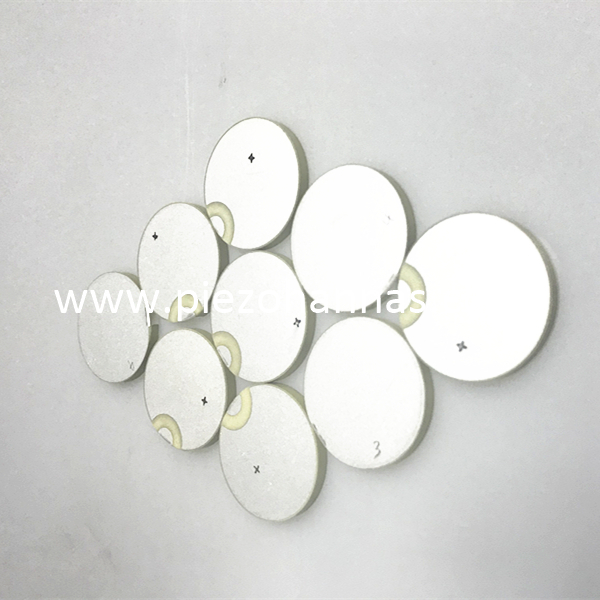

Stock 36*3mm Piezo Discs Piezoelectric Transducer for NDT
Piezo Hannas develops and manufactures piezo ceramics.With a superior experienced team of scientists, designers, engineers and technicians as well as a vertically integrated business model,we develop ultrasonic transducers for a diverse range of applications, including air-ranging industrial transducers, and depth transducers, flow meter transducer and our extensive line of underwater acoustics transducers. Piezo Hannas has the capability of fabricating innovative and cost-effective product.

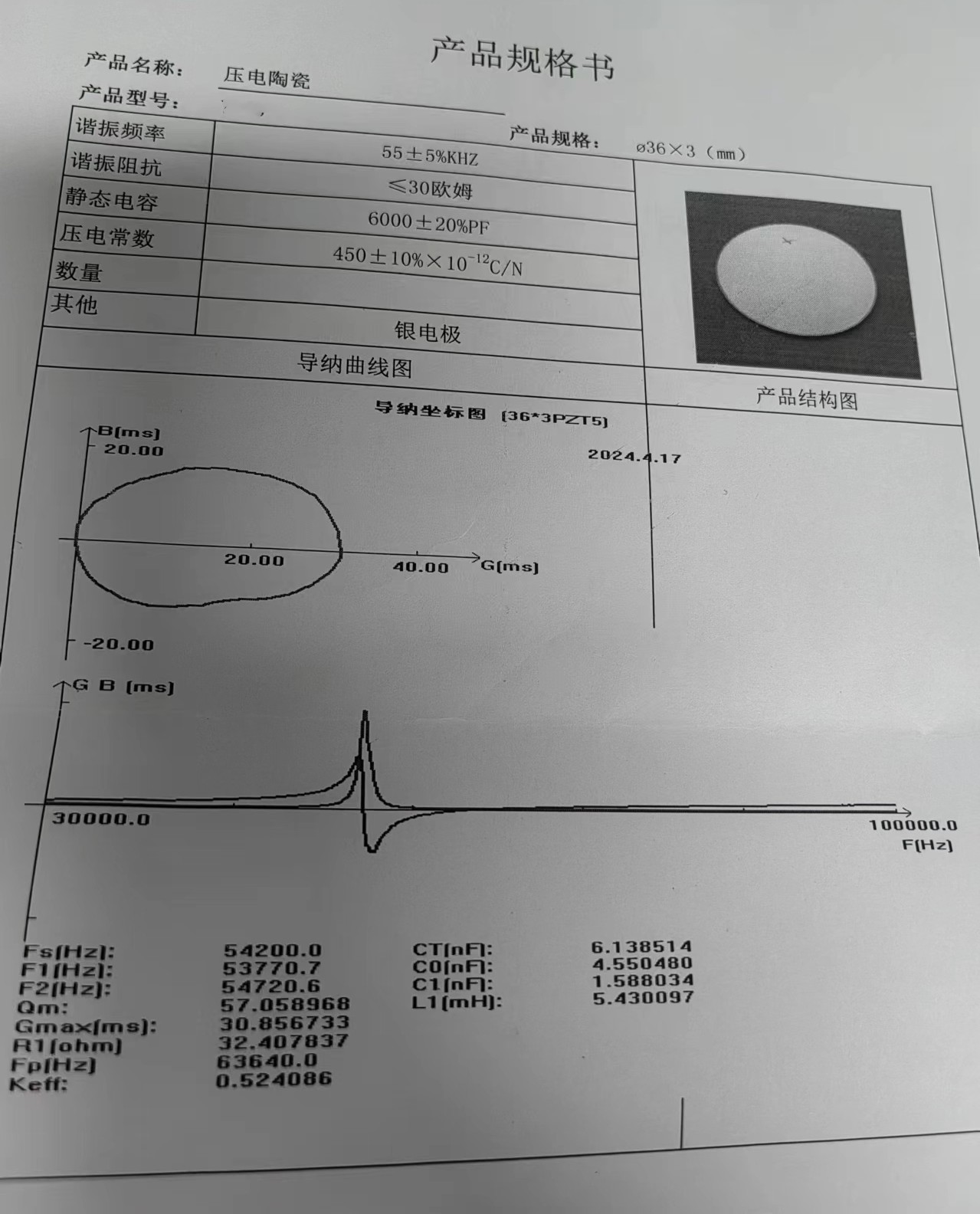

Specifications:
Resonant Frequency: 55KHZ ±5%KHZ
Resonant Impedance: 30ohm
Static Capacitance: 6000±20%PF
Piezoelectric constant: 450 C/N
Standard Size of Piezo Discs:
range of piezo disc to produce:
Diameter: 2mm-120mm
Thickness:0.1mm-30mm
Why do you choose our piezo ceramics:
1.Highly demanding and high sensitivity quality .
2.Large stocks and fast delivery.
3. Owning much experienced team of scientists, designers, engineers and technicians
We can accept the drawing customization
3.Stable performances and low unqualified rate for batch orders
4. Cost-effective alternative for other famous brand
5. After -sevice and Technical support
