PS10000K072
Piezohannas
PS10000K072

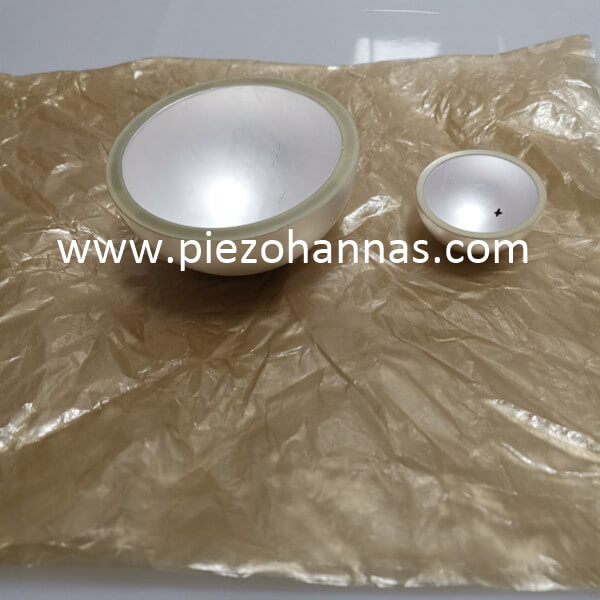

Pzt5 Material Piezo Ceramic Bowls for Echo Sounder Transducers
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Dimension of piezo hemisphere:
P-5H material
42 mm OD x 2.8mm wall thickness hemispheres
Fs(Hz): 46648
Fp(Hz):56440
Capacity(pf): 23890
Application: underwater acoustic
Application of Echo sounder Transducers:
Diameter: 5 - 40mm
Wall thickness: 0.5 - 3mm
Caliber: 5 - 8mm
Maximum radius: approx. 50 mm
Spherical spec |
External dimension（mm） | Technological parameters | ||||||
diameter | open caliber
| Wall thickness | fkHz
| Kr
| P-33
| P-52
| P-81
| |
SΦ5 | SΦ5 | Φ1.5 | 0.5 | 320 | 0.4 | 1.8 | 3.5 | |
SΦ10 | SΦ10 | Φ3 | 0.8 | 160 | 0.4 | 4.7 | 8.8 | |
SΦ15 | SΦ15 | Φ4 | 1 | 113 | 0.4 | 9.2 | 17.3 | |
SΦ20 | SΦ20 | Φ5 | 1~1.5 | 77 | 0.4 | 17 | 32.0 | |
SΦ25 | SΦ25 | Φ5 | 1~1.5 | 61 | 0.4 | 17.4 | 32.8 | |
SΦ30 | SΦ30 | Φ6 | 1.5~3 | 50 | 0.4 | 23.5 | 44.3 | |
SΦ40 | SΦ40 | Φ7 | 2~4 | 38 | 0.4 | 34.3 | 64.6 | |
SΦ50 | SΦ50 | Φ8 | 2~4 | 30 | 0.4 | 54.8 | 103.2 | |
SR12.5 | SR12.5 | Φ3.5 | 2~5 | 83 | 6.2 | 3.7 | ||
SR25 | SR25 | Φ8 | 2~5 | 26.2 | 15.6 | |||
SR37.5 | SR37.5 | Φ10 | 2~5 | 17.7 | ||||
SR50 | SR50 | Φ12 | 3~6 | 25.5 | ||||
Size(mm) | Main Specifications | ||||||
Diameter | Aperture Diameter | Wall Thickness | fr(MHz) | Kr | C(nf) | ||
P-33 | P-52 | P-81 | |||||
5 | 1.5 | 0.5 | 320 | 0.4 | 1.8 | 3.5 | |
10 | 3 | 0.8 | 160 | 0.4 | 4.7 | 8.8 | |
15 | 4 | 1 | 113 | 0.4 | 9.2 | 17.3 | |
20 | 5 | 1～1.5 | 77 | 0.4 | 17.0 | 32.0 | |
25 | 5 | 1～1.5 | 61 | 0.4 | 17.4 | 32.8 | |
30 | 6 | 1.5～3 | 50 | 0.4 | 23.5 | 44.3 | |
40 | 7 | 2～4 | 38 | 0.4 | 34.3 | 64.6 | |
50 | 8 | 2～4 | 30 | 0.4 | 54.8 | 103.2 | |
12.5 | 3.5 | 2～5 | 83 | 6.2 | 3.7 | ||
25 | 8 | 2～5 | 26.2 | 15.6 | |||
37.5 | 10 | 2～5 | 17.7 | ||||
50 | 12 | 3～6 | 25.5 | ||||
Hemisphere material | External dimension（mm） | Technological parameters | ||||
OD. | Wall thickness | OD of Hole | c | fs | kp | |
nF | kHz | % | ||||
P-51 | S10 | 0.7 | 1.5 | 3.8 | 245 | >50 |
P-51 | S10 | 0.7 | / | 3.8 | 210 | >50 |
P-51 | S20 | 0.9 | 4 | 13 | 90 | >50 |
P-51 | S20 | 0.9 | / | 13.5 | 100 | >50 |
P-51 | S30 | 1.1 | 4 | 258 | 64 | >50 |
P-51 | S30 | 1.1 | / | 26 | 67 | >50 |
PZT Material:
- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.
- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.
- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.
Application Image:
