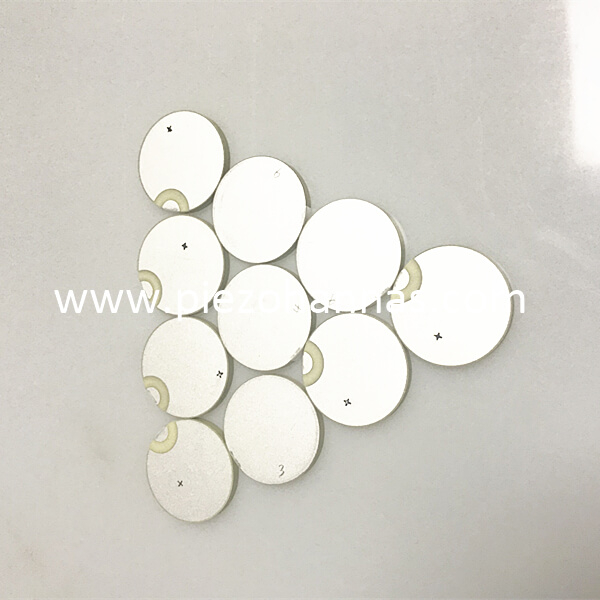

Pzt4 material piezo ceramic disk piezoelectric ceramics for NDT application

Size:
Diameter :20mm
Thickness:0.8mm
Material:P-41

Application: Non-destructive Testing

Quantity:
  • PZ1000K063
  • Piezohannas
  • PZ1000K063


                    Pzt4 Material Piezo Ceramic Disk Piezoelectric Ceramics for NDT Application


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



PZT4 material piezo disks



piezoelectric disk transducer



31AFB9AEF0A775B05FBF843CEB753E4E.jpg piezo disc for Non-destructive Testing


Size:


Diameter :20mm
Thickness:0.8mm
Material:P-41



Standard Size of Piezo Discs:


range of piezo disc to produce:

Diameter: 2mm-120mm
Thickness:0.1mm-30mm


Applications:


Non-destructive testing (NDT) covers a wide group of techniques used to evaluate the properties of a material, part, product, weld, or system without materially affecting the integrity of the unit being inspected or investigated under the test procedure.


The field of Nondestructive Testing (NDT) is a very broad, interdisciplinary field that plays a critical role in assuring that structural components and systems perform their function in a reliable and cost effective fashion. NDT technicians and engineers define and implement tests that locate and characterize material conditions and flaws that might otherwise cause planes to crash, reactors to fail, trains to derail, pipelines to burst, and a variety of less visible, but equally troubling events. These tests are performed in a manner that does not affect the future usefulness of the object or material. In other words, NDT allows parts and material to be inspected and measured without damaging them. Because it allows inspection without interfering with a product's final use, NDT provides an excellent balance between quality control and cost-effectiveness. Generally speaking, NDT applies to industrial inspections. The technologies that are used in NDT are similar to those used in the medical industry, but nonliving objects are the subjects of the inspections.



PZT Material:



- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.

- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.

- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.




Application Image:


timg[1]




Piezo Hannas (WuHan) Tech Co,.Ltd  is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
