Piezoelectric Plates for Acoustic Emission Sensors: Design Considerations

Acoustic emission (AE) sensors are critical for detecting high-frequency micro-structural changes. They capture subtle acoustic stress waves long before catastrophic structural failure occurs. However, sensor reliability remains strictly bound to the physical quality and precise specification of the active element inside. For engineers and procurement teams transitioning from initial prototype designs to full-scale production, choosing the right components presents a significant challenge.

Selecting the right piezoelectric plates for acoustic emission sensors requires a delicate engineering balance. You must carefully weigh raw acoustic sensitivity against frequency response and long-term environmental stability. This guide details the objective evaluation criteria required for specifying piezoelectric components correctly. We focus heavily on advanced material selection, rigid geometric constraints, and real-world integration realities. By following these foundational principles, you ensure reliable, fully compliant sensor manufacturing on a commercial scale.

Key Takeaways

• Selecting the correct PZT Material Parameter (e.g., Curie temperature vs. piezoelectric constant) is a necessary trade-off between sensitivity and environmental durability.

• The thickness and geometry of Piezo Plates and Blocks directly dictate the resonance frequency and operational bandwidth of the final AE sensor.

• Reliable sensor integration requires strict management of acoustic impedance mismatch and bonding layer thicknesses.

• Procurement decisions should be evaluated against specific Markets and Applications, weighing off-the-shelf component limitations against custom-engineered tolerances.

Defining Success Criteria for Acoustic Emission Components

Establishing accurate performance baselines represents the first step in sensor design. You must define the required operational frequency range accurately before selecting materials. Most industrial acoustic emission applications operate between 20 kHz and 1 MHz. You also need to establish strict minimum sensitivity thresholds. These thresholds guarantee the sensor can detect weak stress waves emanating from deep within a structure. These early baselines guide every subsequent mechanical and electrical engineering choice you make.

Acoustic impedance matching plays a massive role in signal clarity and overall yield. You must match the piezoelectric element's acoustic impedance closely with surrounding materials. Wear plates and internal backing materials require highly similar acoustic properties. This rigorous matching practice minimizes severe signal reflection at the physical material boundaries. Poor impedance matching causes lost signals, messy data capture, and false negative readings in the field.

Industry compliance dictates the final market viability of your sensor assembly. Component specifications must support overarching final sensor certification requirements. For example, the EN 13477-1 guidelines set strict performance rules for acoustic emission equipment. Your base ceramic materials must reliably pass these standardized environmental and signal tests.

You should also anticipate common field failures caused by improper component specification. Identifying these critical issues early saves significant engineering resources during pilot runs. Common field failures include:

• Thermal Depolarization: High ambient heat destroys the internal dipole alignment, rendering the sensor completely deaf.

• Signal Attenuation: Poor mechanical coupling inside the housing absorbs high-frequency vibrations before they reach the element.

• Mechanical Fracture: Brittle ceramics crack instantly under extreme shock loads if improperly supported.

• Electrode Oxidation: Improper plating degrades internal electrical contact over time, causing severe noise spikes.

Evaluating Critical PZT Material Parameter Specifications

Choosing the right piezoelectric formulation dictates the overall performance ceiling of your device. The industry broadly divides these ceramics into "hard" and "soft" categories based on their doping agents. Soft PZT provides much higher raw sensitivity overall. It boasts exceptionally high $d_{33}$ and $g_{33}$ coefficients. This characteristic makes it ideal for listening to incredibly weak acoustic emissions in quiet environments. However, it remains highly susceptible to permanent depolarization at lower operating temperatures.

Hard PZT offers lower initial sensitivity out of the box. Yet, it features a vastly higher mechanical quality factor ($Q_m$). It delivers superior thermal stability under extreme duress. Hard formulations suit harsh, demanding industrial environments perfectly. They resist mechanical depoling under high dynamic stress.

Curie Temperature ($T_c$) constraints remain absolutely critical during specification. You cannot operate your sensor anywhere near this thermal limit. The operating environment must remain well below the Curie temperature at all times. As a conservative engineering rule of thumb, limit continuous operating temperatures to half of $T_c$. Exceeding this thermal threshold causes rapid, irreversible performance degradation. The crystal structure loses its engineered piezoelectric properties entirely.

Dielectric constant and capacitance also require close electrical attention. The material's inherent dielectric properties impact electrical impedance matching heavily. Field preamplifiers and data acquisition systems expect a very specific capacitance range from the sensor. If your element's capacitance runs too low, the signal drops out entirely across long cable runs. If it runs too high, it distorts the high-frequency response curve. You must calculate these values accurately during the earliest design phases.

Piezoelectric Formulation Comparison

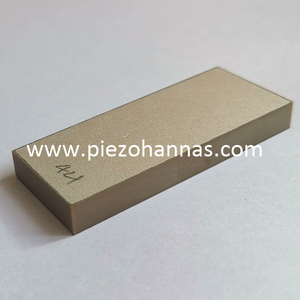

Geometry and Sizing: Specifying Piezo Plates and Blocks

Thickness mode resonance drives the core acoustic function of the element. A strict, mathematically inverse relationship exists here. The physical plate thickness determines the fundamental resonance frequency directly. Thinner plates yield much higher resonant frequencies. Thicker ceramic blocks naturally resonate at lower, deeper frequencies. You must calculate this single dimension precisely to target the exact acoustic emission events you wish to capture.

Form factor selection depends entirely on your internal sensor mechanics and housing designs. Standard rectangular or square elements work exceptionally well for many simple designs. They are highly cost-effective and easy to slice during manufacturing. However, compact cylindrical housing constraints often force different geometric choices. Sometimes you must specify custom-cut discs instead. Discs provide far more symmetrical radial vibration modes. Here is how you should systematically evaluate form factor choices:

1. Measure the precise internal diameter of your machined metallic sensor housing.

2. Determine mathematically if secondary radial resonance modes will interfere with your primary signal.

3. Select standard rectangular plates for maximum cost efficiency if internal space permits.

4. Opt for precision-ground discs when perfectly symmetrical acoustic wave propagation is required.

Bandwidth considerations require advanced mechanical damping techniques applied to the geometry. A bare piezoelectric plate acts strictly as a narrow-band resonant sensor. It rings heavily for a long time at one specific frequency when struck. Many modern applications require broadband or wideband sensors instead. You achieve this transition by using specific plate geometries coupled with heavy backing mass configurations. The backing mass dampens the natural resonance sharply, flattening the frequency response curve.

Manufacturing tolerances heavily impact batch-to-batch consistency. Minute dimensional variations shift the resonance frequency slightly. A seemingly small thickness tolerance of $\pm 0.05$ mm changes the operating frequency noticeably at the megahertz level. Demanding tight control over these grinding and lapping dimensions ensures frequency consistency across massive commercial production batches.

Assembly and Integration Risks

Sensor assembly introduces numerous mechanical risks to the highly sensitive ceramic. Bonding and adhesives demand exceptional engineering discipline and clean-room protocols. You must transfer high-frequency stress waves efficiently. The waves travel from the outer metallic housing directly into the piezo element. This vital transfer requires extremely rigid, thin-layer epoxies. Soft adhesives or overly thick glue layers absorb acoustic energy instantly. They dampen the critical signal long before the ceramic can detect it.

Backing material engineering prevents destructive internal echoes. When an acoustic wave hits the sensor face, it travels backward through the housing too. You must absorb these rear-facing waves immediately. Otherwise, they bounce forward off the rear casing and cause prolonged signal ringing. Most advanced manufacturers select dense tungsten-epoxy mixtures for this task. These high-attenuation materials stop internal reflections quickly by absorbing the kinetic energy.

Acoustic Attenuation Efficiency by Backing Material

Electrode selection determines long-term electrical reliability and solderability. You must evaluate various metallic plating options carefully before ordering. Standard fired silver provides excellent electrical conductivity and easy hand-soldering. However, it oxidizes rapidly in harsh, humid environments. Electroless nickel resists ambient corrosion very well. It handles higher operating temperatures effectively without peeling. Sputtered gold offers the absolute ultimate oxidation resistance for critical applications. You should base this specific choice on your factory soldering requirements and the sensor's maximum operating temperature limits.

Markets and Applications: Aligning Component Choice with Use Case

Different industrial sectors demand entirely different sensor characteristics. Structural Health Monitoring relies heavily on continuous, low-power data collection. Civil infrastructure projects need robust, reliable sensors deployed for decades. Common applications include detecting concrete micro-cracking or catastrophic bridge cable wire breaks. Engineers prioritize low-frequency, high-sensitivity plates for these specific tasks. Thick, sensitive plates capture these deep, low-frequency acoustic events perfectly over massive distances.

Aerospace and pressure vessel applications present extreme engineering challenges. These unforgiving environments expose sensors to intense heat, radiation, and dynamic pressure. They absolutely require specialized high-temperature, hard PZT formulations. The ceramics must withstand extreme environmental stress continuously without failing. They must maintain their exact baseline calibration despite undergoing severe, daily thermal cycling.

Industrial non-destructive testing (NDT) and rotating machinery monitoring focus primarily on friction. Finding premature bearing wear requires detecting very high-frequency scraping noises. You must carefully balance wideband frequency response with highly compact form factors. The sensors must detect tiny friction anomalies hiding deep inside high-noise factory environments. Small, highly damped piezo elements perform best in these cluttered acoustic spaces.

Shortlisting logic requires auditing your piezoelectric suppliers thoroughly. You cannot rely safely on a single PDF specification sheet. You must audit them physically based on historical batch-to-batch consistency. Traceability of raw materials proves critical for passing aerospace compliance audits. Furthermore, you should verify their internal capability to provide custom electrode patterns. Specialized wrap-around electrode designs simplify your internal wiring and automated assembly processes significantly.

Conclusion

Specifying active components for acoustic emission sensors requires a deeply systemic approach. You cannot succeed by shopping based on a single isolated parameter like capacitance. Material formulation, geometric sizing, and integration methodology remain heavily interdependent. Altering just one variable immediately shifts the acoustic performance of the entire sensor assembly.

To guarantee manufacturing success and high yield rates, focus on these actionable next steps:

• Start your design process by strictly defining your application-specific thermal limits and target frequency boundaries.

• Request limited batch samples for early prototype validation before ever committing to large production volumes.

• Always verify the supplier's impedance testing data against your own internal preamplifier requirements.

• Audit the bonding layers and adhesive thickness during initial assembly trials to prevent unwanted signal damping.

FAQ

Q: What is the ideal PZT material for high-temperature acoustic emission sensors?

A: Hard PZT or specialized high-temperature piezo materials (like Bismuth Titanate) are required to prevent depolarization. These harsh environments demand incredible thermal stability. However, they necessitate a direct engineering trade-off, resulting in lower raw sensitivity when compared to standard soft PZT formulations.

Q: How does plate thickness affect the sensor's frequency response?

A: Thickness precisely dictates the natural resonant frequency. A strict inverse mathematical relationship applies here. Thinner plates resonate at much higher frequencies, typically ranging from hundreds of kilohertz to several megahertz. Conversely, thicker blocks are utilized for lower-frequency structural monitoring applications.

Q: Why is batch-to-batch consistency critical for AE sensor manufacturers?

A: Inconsistent capacitance or varying resonance frequencies cause major production bottlenecks. They require constant, manual recalibration of the final sensor assemblies on the factory floor. This variability drives up manufacturing costs rapidly. Ultimately, inconsistent internal components lead to failing strict NDT compliance standards.
