PT1000K192
Piezohannas
PT1000K192

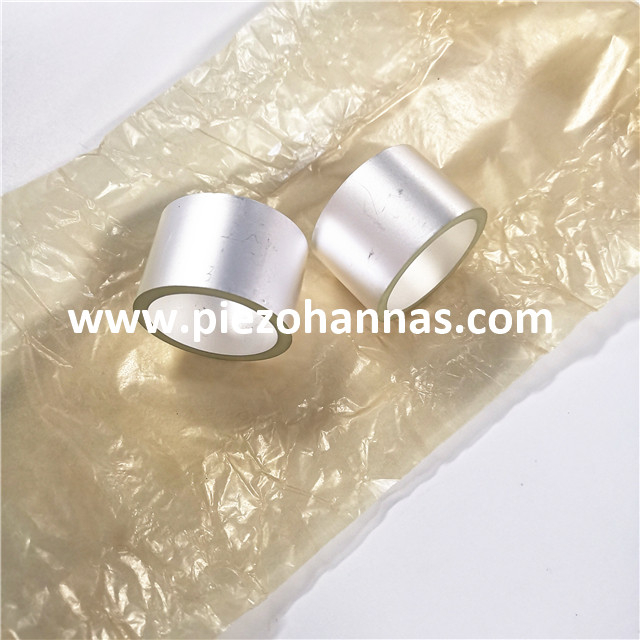

Piezoceramic Materials Piezoelectric Ceramic Tube Sheet Piezoelectric Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 piezoelectric tubes transducer |  underwater piezometer tube |  piezo ceramic tube |
Piezo Ceramics Tube Description:
Material : PZT5A
Dimensions: OD 32mm, ID28mm, height 20mm
Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm
Typical value of "Soft" PZT materials performance：
"Soft" PZT materials | The type of soft material | ||||||||
Properties | PSnN-5 | PLiS-51 | PZT-51 | PZT-52 | PZT-53 | PZT-5H | PZT-5X | ||
Dielectric Constant | ɛTr3 | 1600 | 2000 | 2200 | 2400 | 2600 | 3200 | 4500 | |
Coupling factor | KP | 0.6 | 0.62 | 0.62 | 0.63 | 0.64 | 0.68 | 0.7 | |
K31 | 0.35 | 0.35 | 0.35 | 0.35 | 0.36 | 0.38 | 0.4 | ||
K33 | 0.68 | 0.7 | 0.68 | 0.7 | 0.7 | 0.76 | 0.77 | ||
Kt | 0.5 | 0.52 | 0.5 | 0.5 | 0.5 | 0.52 | 0.53 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -170 | -197 | -186 | -204 | -227 | -275 | -300 |
d33 | 10-12m/v | 400 | 450 | 500 | 520 | 550 | 620 | 750 | |
g31 | 10-3vm/n | -12 | -11.1 | -9.6 | -9.8 | -9.9 | -9.7 | -7.5 | |
g33 | 10-3vm/n | 28 | 25.4 | 25.6 | 24.5 | 23.9 | 22 | 18.8 | |
Frequency coefficients | Np | 2000 | 1920 | 1980 | 1980 | 1960 | 1900 | 1960 | |
N1 | 1466 | 1407 | 1451 | 1451 | 1437 | 1393 | 1437 | ||
N3 | 1825 | 1925 | 1900 | 1900 | 1755 | 1550 | 1800 | ||
Nt | 2100 | 2100 | 2150 | 2150 | 2150 | 2100 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 16.6 | 18 | 16.7 | 17 | 17.4 | 18 | 19 |
Machanical quality factor | Qm | 85 | 80 | 80 | 75 | 75 | 70 | 65 | |
Dielectric loss factor | Tg δ | % | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.6 | 7.6 | 7.6 | 7.5 | 7.5 |
Curie Temperature | Tc | °C | 350 | 345 | 270 | 270 | 270 | 230 | 165 |
Young's modulus | YE11 | <109N/m2 | 60 | 56 | 60 | 59 | 57.5 | 56 | 53 |
Poison Ratio | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.39 | ||
Acoustic Sensor Application:
The piezoelectric ceramic materials that are most commonly used in sonar transducers and their relevant
materials properties are discussed . The most common piezoelectric ceramic-based projector designs for sonar applications are described.where they are grouped according to their operational frequency range. A single transducer cannot operate efficiently over the entire 1-kHz to 1-MHz frequency band – primarily due to impedance matching issues with the associated amplifiers.Consequently, a variety of transducer designs have been developed and optimized for different frequency ranges. When it is used to detect sound, it is called a receiver. Furthermore, when the receiver is employed underwater, it is referred to as a hydrophone. An underwater sonar system consists of projectors, hydrophones, and associated electronics such as amplifiers and data acquisition systems. however, will only cover the description and operational principles of the projector and hydrophone components. More specifically, the chapter will focus on piezoelectric ceramic-based transducer designs intended for underwater use that operate in the frequency band spanning from 1 kHz to 1MHz.
Acoustic Sensor Applications Image:
