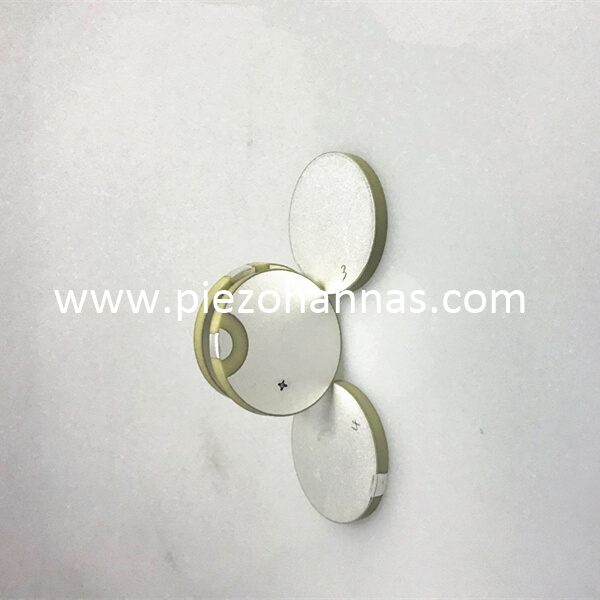

Piezoceramic Materials And Components Pzt Piezoelectric Disc Buy

- Piezo Material: PZT-4
- Dimensions: Φ20 × 2mm
- Resonant Frequency: 1000 ± 10%KHZ
- Resonance Impedance: ≤15Ω
- Static Capacitance: 1800 ± 20%PF
- Electrode: Silver electrodes on one side
- Vibration mode: Thickness mode
- Applications: Flow sensors

Application: Piezo transducer for milk analysis, Piezo transducer for vibration, transducer for matter dispersion, Sonar transducer Ultrasonic sensor, vibration sensor, wall thickness sensor, material stress sensor, pressure sensor, energy electricity harvesting, compression sensor, piezo expansion sensor and others.

Quantity:
  • PZ1000K052
  • Piezohannas
  • PZ1000K052

         Piezoceramic Materials And Components Pzt Piezoelectric Disc Buy


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



piezoelectric ceramic disc buy



piezoelectric disc piezo transducers



31AFB9AEF0A775B05FBF843CEB753E4E.jpg  pzt piezoelectric buy


Piezo Ceramics Disc Description:



- Piezo Material: PZT-4
- Dimensions: Φ20 × 2mm
- Resonant Frequency: 1000 ± 10%KHZ
- Resonance Impedance: ≤15Ω
- Static Capacitance: 1800 ± 20%PF
- Electrode: Silver electrodes on one side
- Vibration mode: Thickness mode
- Applications: Flow sensors


Standard Size of Piezo Discs:


range of piezo disc to produce:

Diameter: 2mm-120mm
Thickness:0.1mm-30mm



PZT Material:



- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.

- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.

- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.




Piezo Hannas (WuHan) Tech Co,.Ltd  is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
