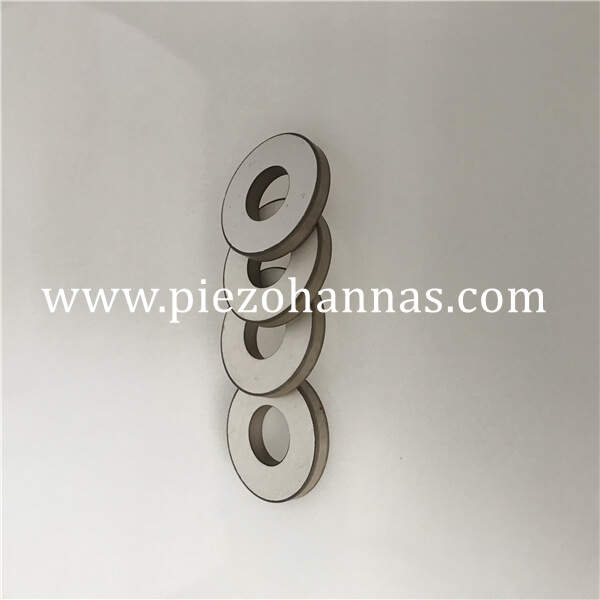

Stock PZT4D Material Piezo Rings for Piezo Inkjet Printer
1.Product Description:
Piezoelectric elements technical data: | |
Dimensions: | Outer diameter 6mm, inner diameter 2.5 thickness 2mm |
Material: | PZT-4D/PZT-43 |
Radial frequency Fr: | 789KHz ± 5% |
Mechanical Coupling Coefficient K33 | ≥0.5 |
Dielectric Loss tg δ: | ≤ 0.3% |
Static capacitance Cs: | 110pF ± 12.5% |
Application: PIEZO INKJET PRINTERS
Outer Dimension from 3mm up to 180mm
Inner Dimension from 1mm up to 150mm
Thickness from 0.2mm up to 25mm
Choice of metallisation (Silver, Nickel, Gold and others on request)
Wide choice of PZT formulations
3.Typical value of "Hard" PZT materials performance：
Hard" PZT materials | |||||||
Properties | PZT-41 | PZT-42 | PZT-43/4D | PZT-82 | PBaS-4 | ||
Dielectric Constant | ɛTr3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Coupling factor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
d33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
g31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
g33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequency coefficients | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanical quality factor | Qm | 1000 | 800 | 600 | 1200 | 2200 | |
Dielectric loss factor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie Temperature | Tc | °C | 320 | 320 | 320 | 310 | 310 |
Young's modulus | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Poison Ratio | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |
4.Piezo-Electric Inkjet Printer Technology
Piezoelectric jet printer is also called high-resolution jet printer or high-resolution image jet printer. On the integrated nozzle, 128 or more piezoelectric crystals control multiple nozzle holes on the nozzle board respectively. Through CPU processing, a series of electrical signals are output to each piezoelectric crystal through the driving board. The piezoelectric crystal is deformed, so the ink is ejected from the nozzle and falls on the moving object. The surface of the product forms a dot matrix, thus forming words, numbers or graphics. Then, the piezoelectric crystal is restored to its original state. Because of the surface tension of the ink, the new ink enters the nozzle. Because the ink dot density per square centimeter is very high, the application of piezoelectric technology can print high-quality text, complex logo and bar code information.
