PZ1000K018
Piezohannas
PZ1000K018
1.Product Description
Diameter: 15mm
Piezoelectric material : PZT4,PZT5,PZT8
Electrical Characteristics:
Resonant frequency fr | 2.2 MHz±50 KHz |
Static capacitance Cs | 3481pF±15%@1kHz |
Impedance |
|
Coupling coefficient - kt | 5.5 |

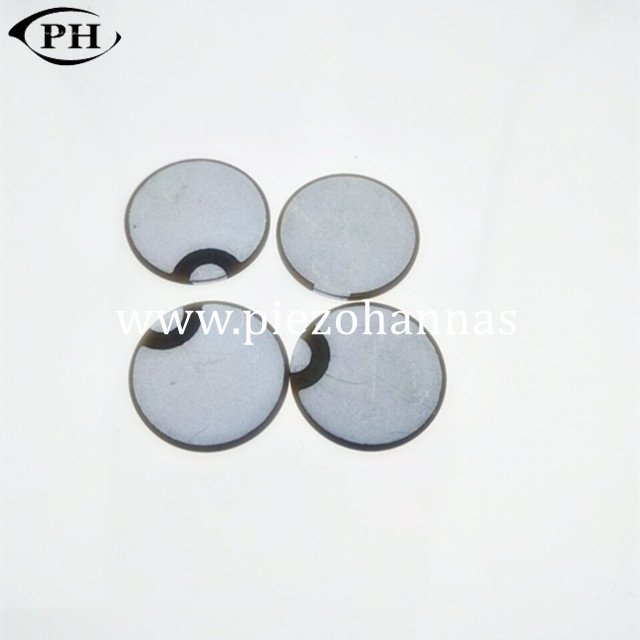

Piezo Disc
Application: Piezo transducer for milk analysis, Piezo transducer for vibration, transducer for matter dispersion, sonar transducer Ultrasonic sensor, vibration sensor, wall thickness sensor, material stress sensor, pressure sensor, energy electricity harvesting, compression sensor, piezo expansion sensor and others.
range of piezo disc to produce:
Diameter: 2mm-120mm
Thickness:0.1mm-30mm
Size= Diameter*Thickness(mm)
Kt (%)=Electromechanical coupling coefficient
Size | Thickness Frequency | Capacitance | Impedance | Kt (%) |
8 × 1 | 2.0±5% | 530±10% | 0.65 | ≥43 |
8 × 1 | 2.0±5% | 850±10% | 0.64 | ≥44 |
8 × 2 | 1.0 ±5% | 265±10% | 0.65 | ≥43 |
8 × 2 | 1.0 ±5% | 430±10% | 0.64 | ≥44 |
10 × 1 | 2.0 ±5% | 840±10% | 0.65 | ≥44 |
10 × 1 | 2.0 ±5% | 1350±10% | 0.64 | ≥43 |
10 × 2 | 1.0 ±5% | 420±10% | 0.65 | ≥44 |
10 × 2 | 1.0 ±5% | 680±10% | 0.65 | ≥45 |
15×2 | 1±30% | 1450±15% | ≤2 | ≥45 |
16×0.4 | 5.0±5% | 5400±15% | ≤5 | ≥45 |
16×1 | 2.0 ±5% | 2200±10% | 0.65 | ≥45 |
16×1 | 2.0 ±5% | 3600±10% | 0.65 | ≥45 |
16×2.1 | 1.0±5% | 1000±15% | ≤4 | ≥45 |
16 ×1.25 | 1.7±5% | 1200±20% | ≤1.5 | ≥45 |
20×1.2 | 1.65±5% | 1180±5% | ≤2.5 | ≥45 |
20×1.25 | 1.7±5% | 1900±20% | ≤2.5 | ≥45 |
20×2.0 | 1.0±5% | 1650±15% | ≤4 | ≥45 |
25×0.4 | 5.0±5% | 1280±15% | ≤4 | ≥45 |
25×0.89 | 2.4±5% | 2300±20% | ≤2 | ≥45 |
25×1.2 | 1.65±5% | 1350±15% | ≤2 | ≥45 |
25×1.25 | 1.7±5% | 2100±20% | ≤2.0 | ≥45 |
25×1.0 | 2.0±5% | 5800±15% | ≤4 | ≥45 |
25×2.0 | 1.0±5% | 2700±15% | ≤4 | ≥45 |
28×1.0 | 2.0±5% | 6940±15% | ≤4 | ≥45 |
28×1.7 | 1.2±5% | 3880±15% | ≤3 | ≥45 |
28×2 | 1±5% | 3850±15% | ≤3 | ≥45 |
28×2 | 1±5% | 3300±15% | ≤3 | ≥45 |
30×3.0 | 66.7 | 2730±12.5% | ≤3 | ≥45 |
35×3.0 | 63.0 | 3100±12.5% | ≤3 | ≥45 |
38×6.5 | 59.9 | 1580±12.5% | ≤3 | ≥45 |
40 × 2 | 1±5% | 7200±10 | 0.65 | ≥45 |
45×3.0 | 50.0 | 5100±12.5% | ≤3 | ≥45 |
45×3.5 | 50.0 | 4700±12.5% | ≤3 | ≥45 |
50×3.0 | 46.0 | 5800±12.5% | ≤3 | ≥45 |
50×3.5 | 46.0 | 6300±12.5% | ≤3 | ≥45 |
50×5.0 | 46.0 | 4150±12.5% | ≤3 | ≥45 |
60×2.0 | 1.0 | 14500±15% | ≤3 | ≥45 |
3.PZT Material
We usually provide P-41,P-42,P-43,P-51,P-52,P-53,P-81,P-82,P-83,PSnN-5,
PMgN-51,PZT-5H,PZT-5X,PCrN-4,PliS-51,PbaS-4,PbaS-5,BaTio3..
PZT materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,
pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers
and actuators they convert electric voltages into vibrations or deformations.Piezoelectric materials
are classified according to their chemical composition on the one hand, and by the specific
application conditions on the other.
PZT ceramic is used in a wide variety of applications. Soft (sensor) PZT ceramic powders are typically used
when high coupling and/or high charge sensitivity are important, such as in flow or level sensors;
ultrasonic nondestructive testing/evaluation (NDT/NDE) applications; or for accurate inspections of automotive,
structural or aerospace products. Material characteristics include a high dielectric constant; high coupling;
high charge sensitivity; high density with a fine grain structure; a high Curie point; and a clean, noise-free
frequency response.
Hard (high power) PZT ceramic powders are used when high power characteristics are required,
including applications such as the generation of ultrasonic or high-voltage energy in ultrasonic cleaners,
sonar devices, etc. Important powder characteristics include a high piezoelectric charge constant (d33); a
higher mechanical quality factor that reduces mechanical loss and enables a lower operating temperature; a
low dissipation factor that ensures cooler, more economical operation; high dielectric stability; and low
mechanical loss under demanding conditions.
4.Applications of Piezoelectric Ceramics
ultrasonic flow meters | hydrophones | accelerometers |
piezo transducer vibration | atomizer transducer | matter dispersion |
impact-type gas ignitors | precise movement control | pressure sensors |
accelerometers | impact-type gas ignitors | precise movement control |
microphones | musical pick-ups | diagnostic medical ultrasound |
sound making | level sensors | ultrasonic atomizers |
sonar transducer | ultrasonic micro-bonding apparatus | wall thickness sensor |
underwater echo sounders | high frequency transducers | high stress pressure ensors |
squeeze-type gas | ignitors high power actuators | vibratory motors |
transformers | ultrasonic welding | ultrasonic surgery |
material stress sensor | piezo electricity harvesting | biomedical probe |
piezo electricity harvesting | fish finder transducer | compression sensor |
piezo expansion sensor | beauty transducer | Ultrasonic mixing |
calculators, | telephones | car alarm sensor |
embryo monitor | heart reflectoscope reflector | pedometer |
ultrasonic medical | ultrasonic cleaning | sonochemistry |
5. Features
1.High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
2.High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
3. Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
4. Good construction: fastened by bolt, easy for assembling, high reliability.
5. The life of more than 5000 hours
6.High electromechanical conversion efficiency
6.Our service
Package :at first ,we all use dual-layer foam to wrap the piezo ceramics duo to its frangibility,then we use suitable the box to put it inside and stick tightly to make sure it perfectly.
Delivery Time:standard product will be shipped out within 2 working days after payment received.
Payment Methods: T/T,Paypal,West Union
Warranty:100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.
7.Images
