PZ1000K0086
Piezohannas
PZ1000K0086

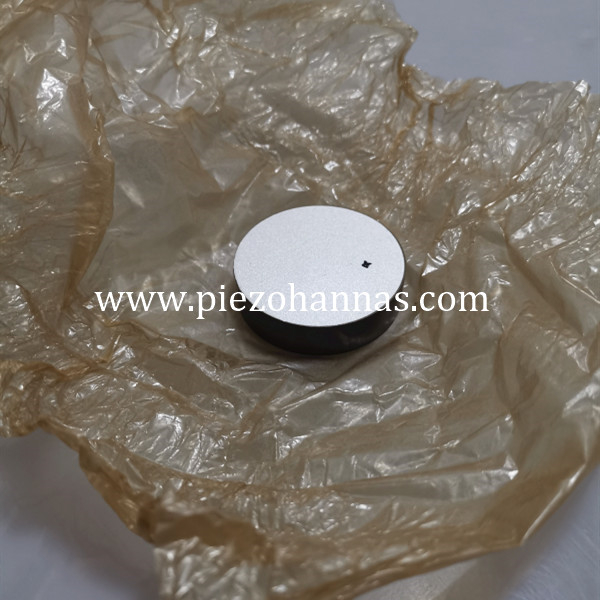

PZT Material Piezo Ceramic Disc for Distance Sensors
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
 piezoelectric ceramic disc buy |  piezoelectric disc piezo sensor |
|
Piezo Ceramics Disc Description:
Diameter :7.4mm
Thickness:1.3mm
Material: pzt4
range of piezo disc to produce:
Diameter: 2mm-120mm
Thickness:0.1mm-30mm
Typical value of "Hard" PZT materials performance：
Hard" PZT materials | PZT-41 | PZT-42 | PZT-43/4D | PZT-82 | PBaS-4 | ||
Dielectric Constant | ɛTr3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Coupling factor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
d33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
g31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
g33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequency coefficients | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanical quality factor | Qm | 1000 | 800 | 600 | 1200 | 2200 | |
Dielectric loss factor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie Temperature | Tc | °C | 320 | 320 | 320 | 310 | 310 |
Young's modulus | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Poison Ratio | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |
The Range of Piezo Ceramics:
Geometry | Size (mm) | Tolerance |
Discs | Diameter: 3 to 200 |
Tolerance according to the piezoelectric elements Industrial standard. |
Thickness: 0.2-25 | ||
Tubes | Length: 1-100 | |
OD: 6-180 | ||
ID: 5-150 | ||
Wall: 0.5-15 | ||
Plates | Length: 1-200 | |
Width: 1-200 | ||
Thickness: 0.2-25 | ||
Sphere | OD: 6-160 | |
ID: 4-150 | ||
Wall: 1-10 | ||
Rings | OD: 3-180 | |
ID: 1-150 | ||
Thickness : 0.2-25 | ||
For All Sizes | Flatness | ± 0.03 |
Concentricity | ± 0.10 | |
Perpendicularity | ± 0.10 | |
Parallelism | ± 0.05 |
Nominal Electric Tolerances
Piezoelectric Properties | ± 5% |
Relative Dielectric Constant | ± 15% |
Distance Sensors Applications with Piezo-ceramic Components
A PZT material piezo disc sends a short ultrasonic air wave in the direction of the object whose distance is to be measured. The sound wave is reflected by this object and received again by the same piezo-ceramic part. The piezo-ceramic part operates here as sender and receiver (time multiplex mode). The piezo ceramic disc normally has an adaption layer on the radiating side to match the acoustic impedance of the transducer to that of the air. This piezoelectric disk for distance sensors application can be used for a variety of purposes in industrial automation, for example, for distance measurement, as a limit monitor or as a counter (an object is registered every time it passes through the measuring range). If the wavelength is shorter than the transducer, it is radiated straight (in a close angle). Directed radiation is desired in almost all cases.The distances that can reasonably be measured using these systems are between 0.25 m and 10 m. The frequency used by the transducer (resonance mode) here depends on the desired range and the resolution. The higher the frequency, the higher the resolution and the shorter the range, and vice versa. If the wavelength resulting from the frequency is large in comparison to the size of the transducer, the result is a spherical-shaped radiation of the wave front.

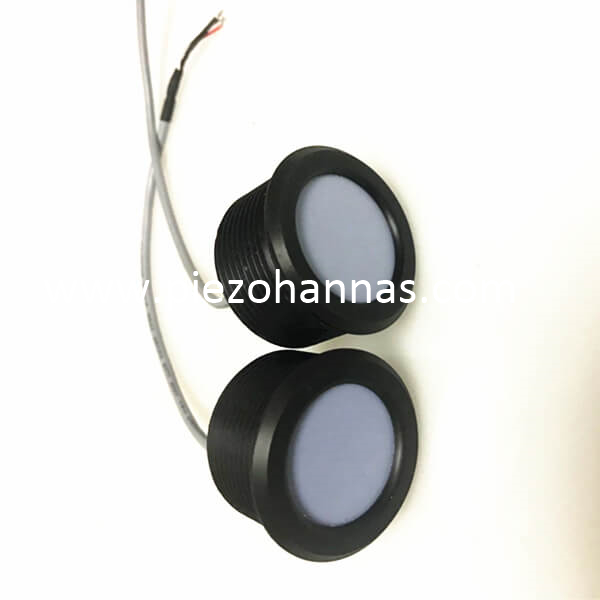

Distance Measurement Sensors and Distance Sensors Image
