PS1000K0107
Piezohannas
PS1000K0107

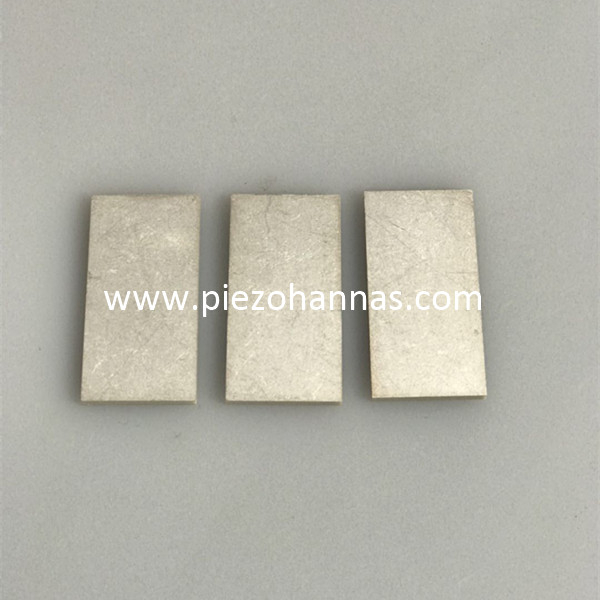

efficiency of piezoelectric plate piezoelectric transducer acoustic guitar
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
- Piezo Material: PZT5X
- Dimensions: 70*10*0.48mm
- Resonant Frequency: 4500± 10%KHZ
- Resonance Impedance: ≤ 25Ω
- Static Capacitance: 51± 10%PF
- Vibration mode: Width mode
- Applications: Sensor
Application: High Frequency Wave Filter, Resonator, Frequency Discriminator, Ultrasonic Sensor, Vibration Sensor, Material stress sensor, Pressure sensor, Vibration generation, Energy/Electricity harvesting, compression sensor and others...

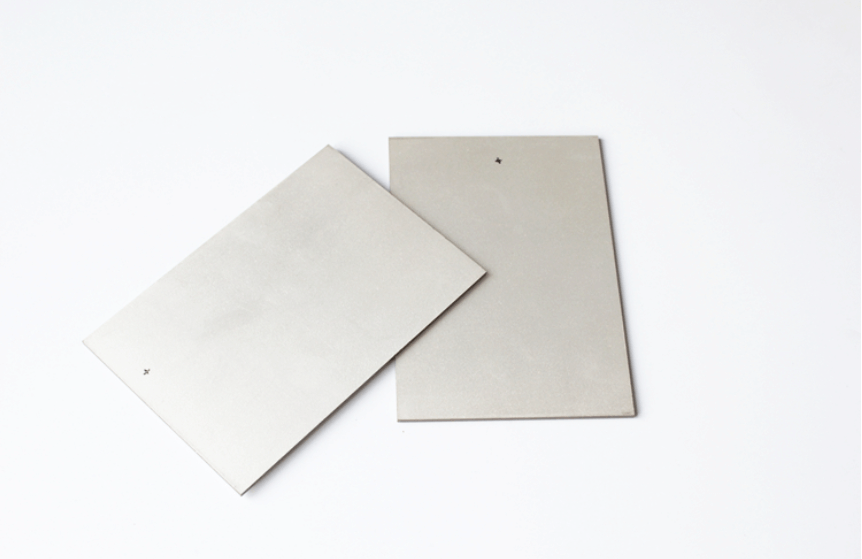

The range of Piezoceramic Rectangle / Square:
Length: 3mm-176mm
Width: 1mm-120mm
Height: 0.1mm-30mm
Applications of Piezoelectric Ceramics:
ultrasonic flow meters | hydrophones | accelerometers |
piezo transducer vibration | atomizer transducer | matter dispersion |
impact-type gas ignitors | precise movement control | pressure sensors |
accelerometers | impact-type gas ignitors | precise movement control |
microphones | musical pick-ups | diagnostic medical ultrasound |
sound making | level sensors | ultrasonic atomizers |
sonar transducer | ultrasonic micro-bonding apparatus | wall thickness sensor |
underwater echo sounders | high frequency transducers | high stress pressure ensors |
squeeze-type gas | ignitors high power actuators | vibratory motors |
transformers | ultrasonic welding | ultrasonic surgery |
material stress sensor | piezo electricity harvesting | biomedical probe |
piezo electricity harvesting | fish finder transducer | compression sensor |
piezo expansion sensor | beauty transducer | Ultrasonic mixing |
calculators, | telephones | car alarm sensor |
embryo monitor | heart reflectoscope reflector | pedometer |
ultrasonic medical | ultrasonic cleaning | sonochemistry |
Manufacturing Process :
