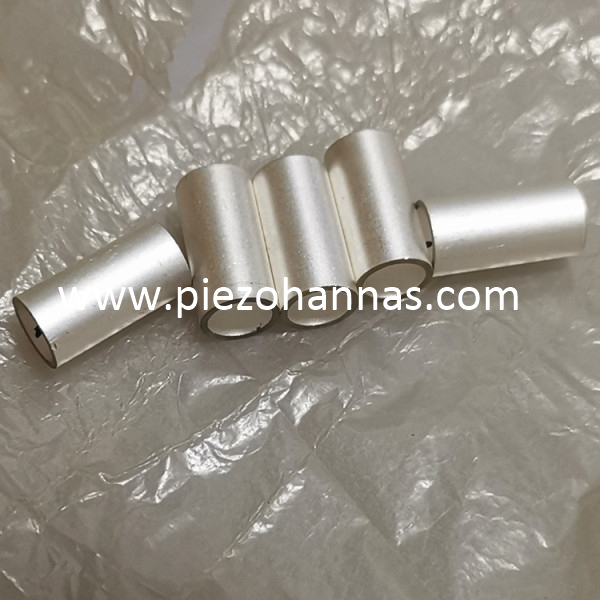

Navy Type Material Piezoelectric Ceramic Cylinder for Hydrophone Transducer

Material: PZT5A (Navy Type )
Outer Diameter: 15.75mm ± 0.125mm
Inner Diameter: 11.10 mm ± 0.125 mm
Height: 14.6mm ± 0.10mm
Electrodes: Full Fired Silver - Inside & Outside Surfaces
Polarity: Positive (+) Inside, Negative (-) Outside

Quantity:
  • PT1000K0118
  • Piezohannas
  • PT1000K0118

                     Navy Type Material Piezoelectric Ceramic Cylinder for Hydrophone Transducer


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



piezo tube (1) (1) (1)




Piezoelectric Ceramic Cylinder Description:


Material: PZT51 (Navy Type )
Outer Diameter:  15.75mm ± 0.125mm
Inner Diameter:   11.10 mm ± 0.125 mm
Height:                14.6mm ± 0.10mm
Electrodes:          Full Fired Silver - Inside & Outside Surfaces
Polarity:               Positive (+) Inside, Negative (-) Outside


Hydrophone Transducer Application:


The hydrophone is made with a piezoelectric ceramic cylinder.  The piezo element offers a receive sensitivity of -202.5 dB over a broad working bandwidth of 1 Hz - 100 kHz.  hydrophones are designed specifically to maintain accuracy with large changes in both temperature and pressure that are common to deep ocean applications. It offers a remarkably compact form factor relative to other hydrophones that is ideal for systems in which space is limited. Mounting points, connectors, and other parameters can all be customized.


Standard Size of Piezo Tube:


Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm



Soft PZT Material:




"Soft" PZT materials

The type of soft material

Properties



PSnN-5

PLiS-51

PZT-51

PZT-52

PZT-53

PZT-5H

PZT-5X

Dielectric Constant

ɛTr3


1600

2000

2200

2400

2600

3200

4500

Coupling factor

KP


0.6

0.62

0.62

0.63

0.64

0.68

0.7


K31


0.35

0.35

0.35

0.35

0.36

0.38

0.4


K33


0.68

0.7

0.68

0.7

0.7

0.76

0.77


Kt


0.5

0.52

0.5

0.5

0.5

0.52

0.53

Piezoelectric coefficient

d31

10-12m/v

-170

-197

-186

-204

-227

-275

-300


d33

10-12m/v

400

450

500

520

550

620

750


g31

10-3vm/n

-12

-11.1

-9.6

-9.8

-9.9

-9.7

-7.5


g33

10-3vm/n

28

25.4

25.6

24.5

23.9

22

18.8

Frequency coefficients

Np


2000

1920

1980

1980

1960

1900

1960


N1


1466

1407

1451

1451

1437

1393

1437


N3


1825

1925

1900

1900

1755

1550

1800


Nt


2100

2100

2150

2150

2150

2100

2200

Elastic compliance coefficient

Se11

10-12m2/n

16.6

18

16.7

17

17.4

18

19

Machanical quality factor

Qm


85

80

80

75

75

70

65











Dielectric loss factor

Tg δ

%

2

2

2

2

2

2

2

Density

ρ

g/cm3

7.5

7.5

7.6

7.6

7.6

7.5

7.5

Curie Temperature

Tc

°C

350

345

270

270

270

230

165

Young's modulus

YE11

<109N/m2

60

56

60

59

57.5

56

53

Poison Ratio



0.36

0.36

0.36

0.36

0.36

0.36

0.39
