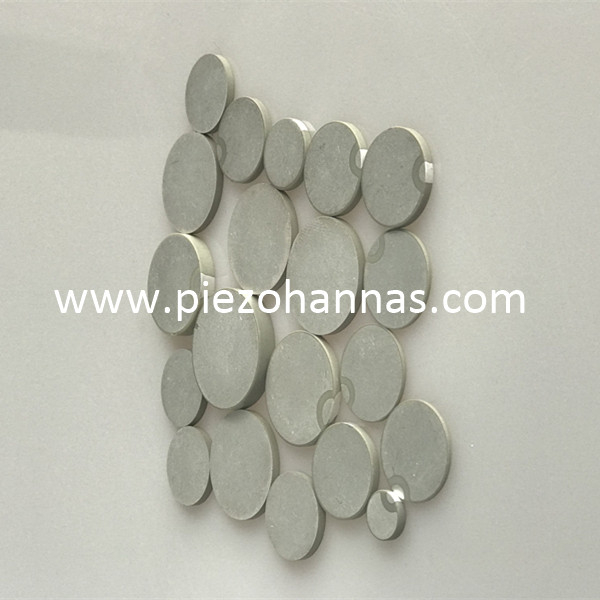

Low Cost Piezoelectric Discs Transducer for Piezo Atomizers

Size:
Diameter :Φ20mm
Thickness:1.43mm

Application: ultrasonic atomizers

Quantity:
  • PZ1000K0891
  • Piezohannas
  • PZ1000K891

                          Low Cost Piezoelectric Discs Transducer for Piezo Atomizers


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



PZT5 material piezo disks



piezoelectric disk transducer



31AFB9AEF0A775B05FBF843CEB753E4E.jpg piezo ceramic disc


Size:


Diameter :Φ20mm
Thickne
ss:1.43mm


Frequency:  Fst=1.4MHz

Static capacitance: CT=1250pF±10%
Inductive loss: tanδ=max.0.5%
Piezoelectric strain constant: d33≥300P/N
Test environment: at 25 ° C ± 5 ° C, 60% R.H
Test conditions: at 1KHz, 1Vrms


Standard Size of Piezo Discs:


range of piezo disc to produce:

Diameter: 2mm-120mm
Thickness:0.1mm-30mm


Applications:


 Piezo ultrasonic atomizers




PZT Material:



- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.

- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.

- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.




Application Image:


20mm Piezoelectric Discs Crystal for Piezo Atomizers
