PZW1000K075
Piezohannas
PZW1000K075

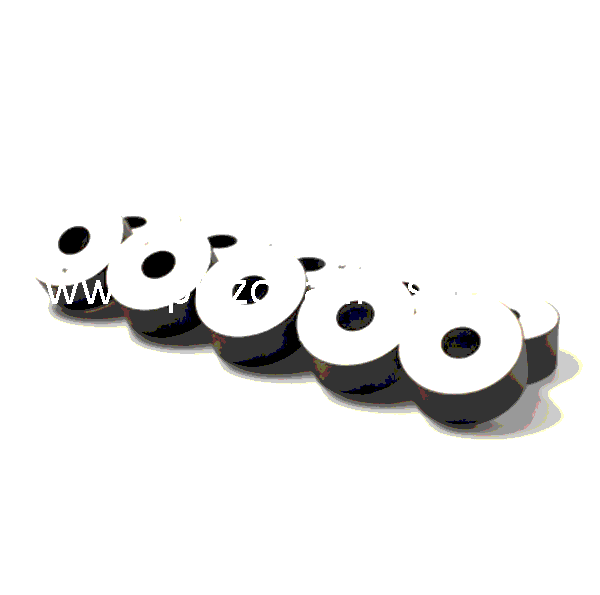

Lead Free Piezoelectric Ceramic BaTiO3 Material Piezo Ring
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Dimension:
OD 50.2mm, ID6.1mm, height 14-17mm(according to the frequency 180KHz)
Thickness Frequency Fr: 180KHz ± 5 KHz
Frequency Bandwidth ΔF＞7.5KHz
Resonate Impedance R ≤ 20 Ω
Dielectric Loss tg δ: <0.6%
Static capacitance Cs: 1350pF±12.5%
Outer Dimension from 3mm up to 180mm
Inner Dimension from 1mm up to 150mm
Thickness from 0.2mm up to 25mm
Lead-free Piezoelectric Ceramics Material:
The Co-Al Co-doped Barium Titanate Lead-free Piezoelectric Ceramics was successfully developed by Yuhai company through repeated experiments. By Researching the influence of Co-Al Co-doping on the structure and properties of Barium Titanate-based piezoelectric ceramics, the formulation and preparation technology of Barium Titanate-based piezoelectric ceramics were optimized. Yuhai`s BaTiO3 was prepared by conventional solid-phase sintering method, with the piezoelectric constant d33 (>170pC/N), dielectric loss tgδ≤0.5% and mechanical coupling coefficient Kp≥0.34.
Lead free piezo material BaTiO3 | Lead-free Material | ||
Properties | BaTiO3 | ||
Dielectric Constant | ɛTr3 | 1260 | |
Coupling factor | KP | 0.34 | |
K31 | 0.196 | ||
K33 | 0.43 | ||
Kt | 0.32 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -60 |
d33 | 10-12m/v | 160 | |
g31 | 10-3vm/n | -5.4 | |
g33 | 10-3vm/n | 14.3 | |
Frequency coefficients | Np | 3180 | |
N1 | 2280 | ||
N3 | |||
Nt | 2675 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 8.4 |
Machanical quality factor | Qm | 1200 | |
Dielectric loss factor | Tg δ | % | 0.5 |
Density | ρ | g/cm3 | 5.6 |
Curie Temperature | Tc | °C | 115 |
Young's modulus | YE11 | <109N/m3 | 119 |
Poison Ratio | 0.33 | ||
Lead Free Piezoelectric Ceramic BaTiO3 Material Piezo Ring
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Dimension:
OD 50.2mm, ID6.1mm, height 14-17mm(according to the frequency 180KHz)
Thickness Frequency Fr: 180KHz ± 5 KHz
Frequency Bandwidth ΔF＞7.5KHz
Resonate Impedance R ≤ 20 Ω
Dielectric Loss tg δ: <0.6%
Static capacitance Cs: 1350pF±12.5%
Outer Dimension from 3mm up to 180mm
Inner Dimension from 1mm up to 150mm
Thickness from 0.2mm up to 25mm
Lead-free Piezoelectric Ceramics Material:
The Co-Al Co-doped Barium Titanate Lead-free Piezoelectric Ceramics was successfully developed by Yuhai company through repeated experiments. By Researching the influence of Co-Al Co-doping on the structure and properties of Barium Titanate-based piezoelectric ceramics, the formulation and preparation technology of Barium Titanate-based piezoelectric ceramics were optimized. Yuhai`s BaTiO3 was prepared by conventional solid-phase sintering method, with the piezoelectric constant d33 (>170pC/N), dielectric loss tgδ≤0.5% and mechanical coupling coefficient Kp≥0.34.
Lead free piezo material BaTiO3 | Lead-free Material | ||
Properties | BaTiO3 | ||
Dielectric Constant | ɛTr3 | 1260 | |
Coupling factor | KP | 0.34 | |
K31 | 0.196 | ||
K33 | 0.43 | ||
Kt | 0.32 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -60 |
d33 | 10-12m/v | 160 | |
g31 | 10-3vm/n | -5.4 | |
g33 | 10-3vm/n | 14.3 | |
Frequency coefficients | Np | 3180 | |
N1 | 2280 | ||
N3 | |||
Nt | 2675 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 8.4 |
Machanical quality factor | Qm | 1200 | |
Dielectric loss factor | Tg δ | % | 0.5 |
Density | ρ | g/cm3 | 5.6 |
Curie Temperature | Tc | °C | 115 |
Young's modulus | YE11 | <109N/m3 | 119 |
Poison Ratio | 0.33 | ||
