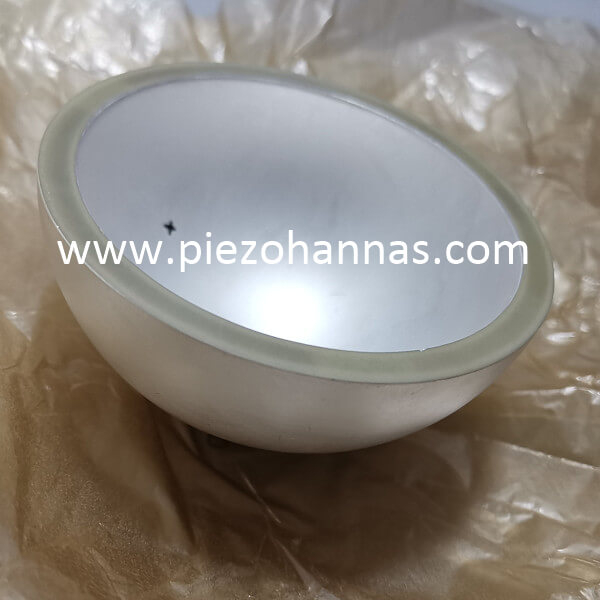

High Quality Pzt4 Piezoelectric Ceramic Bowls Transducer

Dimension of piezo hemisphere:

Pzt 4 material
160mm OD x5mm wall thickness hemispheres
fm:14khz
C:85500pf
△f>2332
R>1-2Ω
kp>0.588

Application: underwater acoustic

Quantity:
  • PS10000K073
  • Piezohannas
  • PS10000K073

                     High Quality Pzt4 Piezoelectric Ceramic Bowls Transducer


WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.


F140203C102B86CED989CB94A74276D6 (1)

Dimension of piezo hemisphere:


Pzt 4 material
160mm OD x5mm wall thickness hemispheres
fm:14khz
C:85500pf
△f>2332
R>1-2Ω
kp>0.588


Application: underwater acoustic

Some Stanard Size of Spherical and Hemispherical Piezoelectric Ceramic:


Diameter: 5 - 40mm
Wall thickness: 0.5 - 3mm
Caliber: 5 - 8mm

Maximum radius: approx. 50 mm






Spherical spec



External dimensionmm

Technological parameters

diameter

open caliber



   Wall  thickness

fkHz



Kr



P-33



P-52



P-81



SΦ5

SΦ5

Φ1.5

0.5

320

0.4

1.8

3.5


SΦ10

SΦ10

Φ3

0.8

160

0.4

4.7

8.8


SΦ15

SΦ15

Φ4

1

113

0.4

9.2

17.3


SΦ20

SΦ20

Φ5

1~1.5

77

0.4

17

32.0


SΦ25

SΦ25

Φ5

1~1.5

61

0.4

17.4

32.8


SΦ30

SΦ30

Φ6

1.5~3

50

0.4

23.5

44.3


SΦ40

SΦ40

Φ7

2~4

38

0.4

34.3

64.6


SΦ50

SΦ50

Φ8

2~4

30

0.4

54.8

103.2


SR12.5

SR12.5

Φ3.5

2~5

83


6.2


3.7

SR25

SR25

Φ8

2~5



26.2


15.6

SR37.5

SR37.5

Φ10

2~5





17.7

SR50

SR50

 Φ12

3~6





25.5




Size(mm)

 Main Specifications

Diameter

Aperture Diameter

Wall Thickness

fr(MHz)

Kr

C(nf)






P-33

P-52

P-81

5

1.5

0.5

320

0.4

1.8

3.5


10

3

0.8

160

0.4

4.7

8.8


15

4

1

113

0.4

9.2

17.3


20

5

11.5

77

0.4

17.0

32.0


25

5

11.5

61

0.4

17.4

32.8


30

6

1.53

50

0.4

23.5

44.3


40

7

24

38

0.4

34.3

64.6


50

8

24

30

0.4

54.8

103.2


12.5

3.5

25

83


6.2


3.7

25

8

25



26.2


15.6

37.5

10

25





17.7

50

12

36





25.5


emisphere

Hemisphere material

     External dimension(mm)

Technological parameters

OD.

Wall thickness

OD of Hole

c

fs

kp

nF

kHz

%

P-51

S10

0.7

1.5

3.8

245

>50

P-51

S10

0.7

/

3.8

210

>50

P-51

S20

0.9

4

13

90

>50

P-51

S20

0.9

/

13.5

100

>50

P-51

S30

1.1

4

258

64

>50

P-51

S30

1.1

/

26

67

>50




PZT Material:



- PZT4 Piezoelectric ceramics have a double behavior of receiving and transmitting, with higher sensitivity and lower dielectric loss.

- PZT5 Piezoelectric ceramics have higher electro-mechanical coupling coefficient, the moderate dielectric constant and higher sensitivity.

- PZT8 Piezoelectric ceramics of high power transmission type have good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields.
