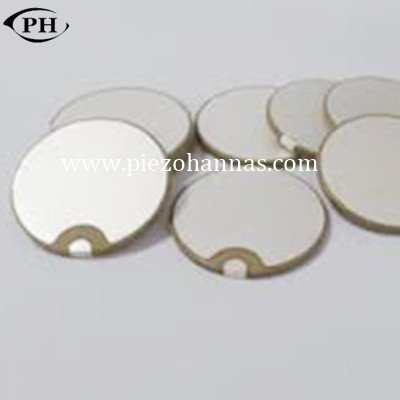

Ferroelectric Piezoelectric Ceramic Discs Transducer PZT Materials

Share to:

Ferroelectric Piezoelectric Ceramic Discs Transducer PZT Materials

Name: Ferroelectric Piezoelectric Ceramic Discs Transducer PZT Materials
Brand: Piezohannas
Rating: 5.0 (71 reviews)

Dimension (diameter×thickness):50mmx4mm
Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

We are professional manufactuer of piezo ceramics,you can tell us the detailed size by email of telephone,we will offer you samples to test.

Availability:

Quantity:



Inquire Add to Basket

Model:
PD1000K045
Brand:
Piezohannas
Code:
PD1000K045

Product Description

Dimension (diameter×thickness)

:50mmx4mm

Piezoelectric material : PZT4,PZT5,PZT8

Piezo disc range to produce:
Diameter: 4.0 - 100mm
Thickness: 0.1 - 15mm

Electrical Characteristics:

Resonant Frequency (KHz )	46
Capacitance (Cp)	3900
Dielectric loss (tgδ)	0.3
Coupling Factor - kp	0.58

Warm Tips: We can customize various piezoelectric ceramics as required.
