PS1000K0125
Piezohannas
PS1000K0125

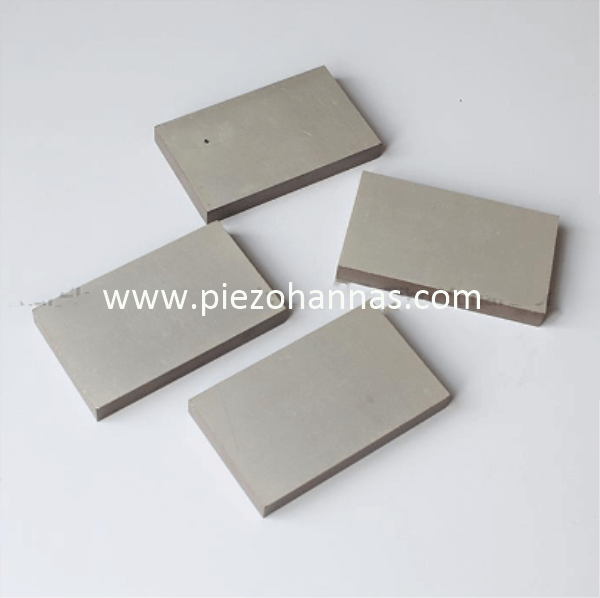

Custom Silver Plating Piezoelectric Ceramic Shear Plates
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other components with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
The range of Piezoceramic Plate / Strip:
Length: 1mm-200mm
Width: 1mm-200mm
Height: 0.1mm-30mm
Choice of metallisation (Silver, Nickel, Gold and others on request)
Wide choice of PZT formulations
Piezoelectric Ceramic Material: SOFT PZT (PZT-5A/P-51, PSnN-5, PZT-5H)
P-5A | is a modified soft PZT for general purpose. It is dedicated to low aging rate and extremely stable performance requirement etc. transducers
|
PliS-51 | is a high Curie temperature version of P-51. It is dedicated to low aging rate, extremely stable performance and high frequency requirement etc. transducers |
P-52 | is a modified soft PZT designed for relative high dielectric constant required hydrophone etc. receiver transducers |
P-53 | is developed as high dielectric constant and high Curie point soft PZT particular useful for receiver transducer and actuator etc. applications |
PSnN-5 | is a modified soft PZT , high curie temperature, stable performance requirement etc. transducers, special recommendation distance meansurements.
|
PZT-5H
| is a modified soft PZT dedicated for popular used high dielectric constant, reasonable high Curie point required receiver transducer, ignition and actuator etc. applications |
Nominal Sizes and Tolerances
Geometry | Size (mm) | Tolerance |
Discs | Diameter: 3 to 200 |
Tolerance according to the piezoelectric elements Industrial standard. |
Thickness: 0.2-25 | ||
Tubes | Length: 1-100 | |
OD: 6-180 | ||
ID: 5-150 | ||
Wall: 0.5-15 | ||
Plates | Length: 1-200 | |
Width: 1-200 | ||
Thickness: 0.2-25 | ||
Sphere | OD: 6-160 | |
ID: 4-150 | ||
Wall: 1-10 | ||
Rings | OD: 3-180 | |
ID: 1-150 | ||
Thickness : 0.2-25 | ||
For All Sizes | Flatness | ± 0.03 |
Concentricity | ± 0.10 | |
Perpendicularity | ± 0.10 | |
Parallelism | ± 0.05 |
Nominal Electric Tolerances
Piezoelectric Properties | ± 5% |
Relative Dielectric Constant | ± 15% |
Custom Silver Plating Piezoelectric Ceramic Shear Plates
